Hearth & Home ACUF36 Series Installation Instructions

Contemporary Front Kit
Models: I28BCF, IA32BCF, IA36BCF, A42BCF, L32BCF, L36BCF, L42BCF
This kit has been tested for use with specific Hearth & Home Technologies products. Check with your local building code
agency before you begin installation to ensure compliance with local codes, including the need for permits and follow-up
inspections. If you encounter any problems regarding code approvals, or if you need clarification of any of the instructions
contained here, contact your Hearth & Home Technologies dealer. For the dealer nearest you, please visit www.hearthn-
home.com.
Contemporary Front Model No.
I28BCF
IA32BCF
IA36BCF
A42BCF
L32BCF
L36BCF
L42BCF

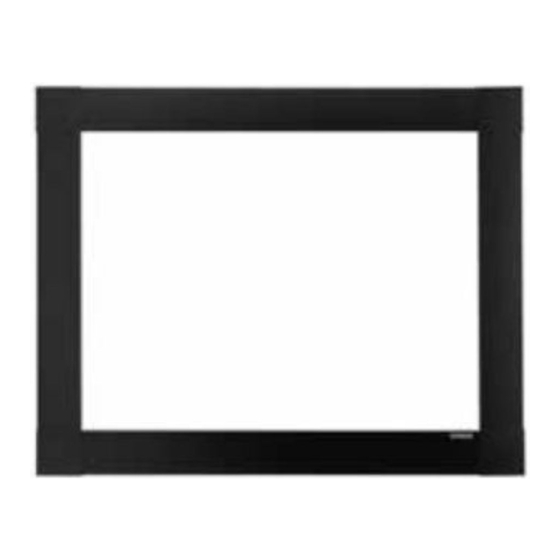

This Contemporary Front kit is designed for use on the models
shown in the chart above. Read these instructions thoroughly
before beginning installation.
CAUTION: Allow firebox to cool completely if it has been in
operation.
Note: Finishing material (e.g.: stone/marble/brick, etc.) must
be flush with the front of the firebox and not extend past. The
firebox may be adjusted forward in the framing if needed.
KIT CONTENTS:
• (1) Top face
• (1) Right side face
• (1) Left side face
• (1) Bottom face
• (1) Lower Hood
• (18) #8 x 1/2" Screws
INSTALLATION INSTRUCTIONS
1. Remove all parts from package and arrange face down on
a non-damaging surface such as a carpeted floor.

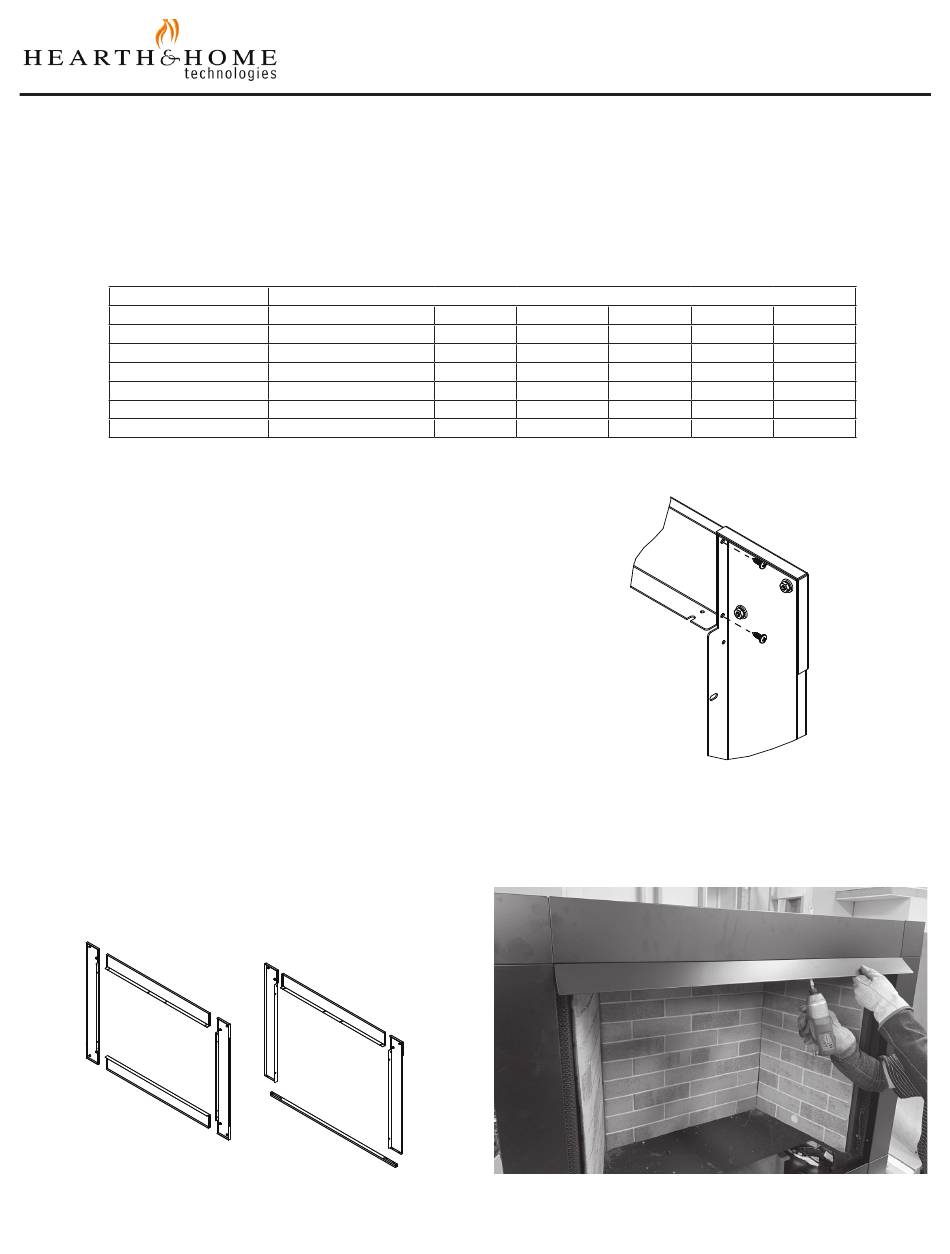

2. Align parts as shown in Figure 1.
I28BCF, IA32BCF, IA36BCF & A42BCF
Models
Figure 1
Hearth & Home Technologies • Contemporary Front Installation Instructions • 4137-318 Rev. A • 11/20
I28NIP-DS
I32NIP-DS
I36NIP-DS
ACUF42-BD
LCUF32CR-C
LCUF36CR-C
LCUF42CR-C
L32BCF, L36BCF, L42BCF
Models
For Use on Models
I28NV-DS I28PIP-DS
I32NV-DS I32PIP-DS
I36NV-DS I36PIP-DS
ACUF42-GD
LCUF32CR-GT LCUF32CR-GH LCUF32CR-BT
LCUF36CR-GT LCUF36CR-GH LCUF36CR-BT
LCUF42CR-GT LCUF42CR-GH LCUF42CR-BT
3. Assemble front parts together using #8 x 1/2" screws
provided. See Figure 2.
Figure 2
4. Remove firebox Hood. Locate and remove the (6)
screws, (4 on the top and 1 on each end). See Figure 3.
Set Hood aside.
Figure 3
Installation
Instructions
I28PV-DS
I32PV-DS ACUF32-BD ACUF32-GD
I36PV-DS ACUF36-BD ACUF36-GD
