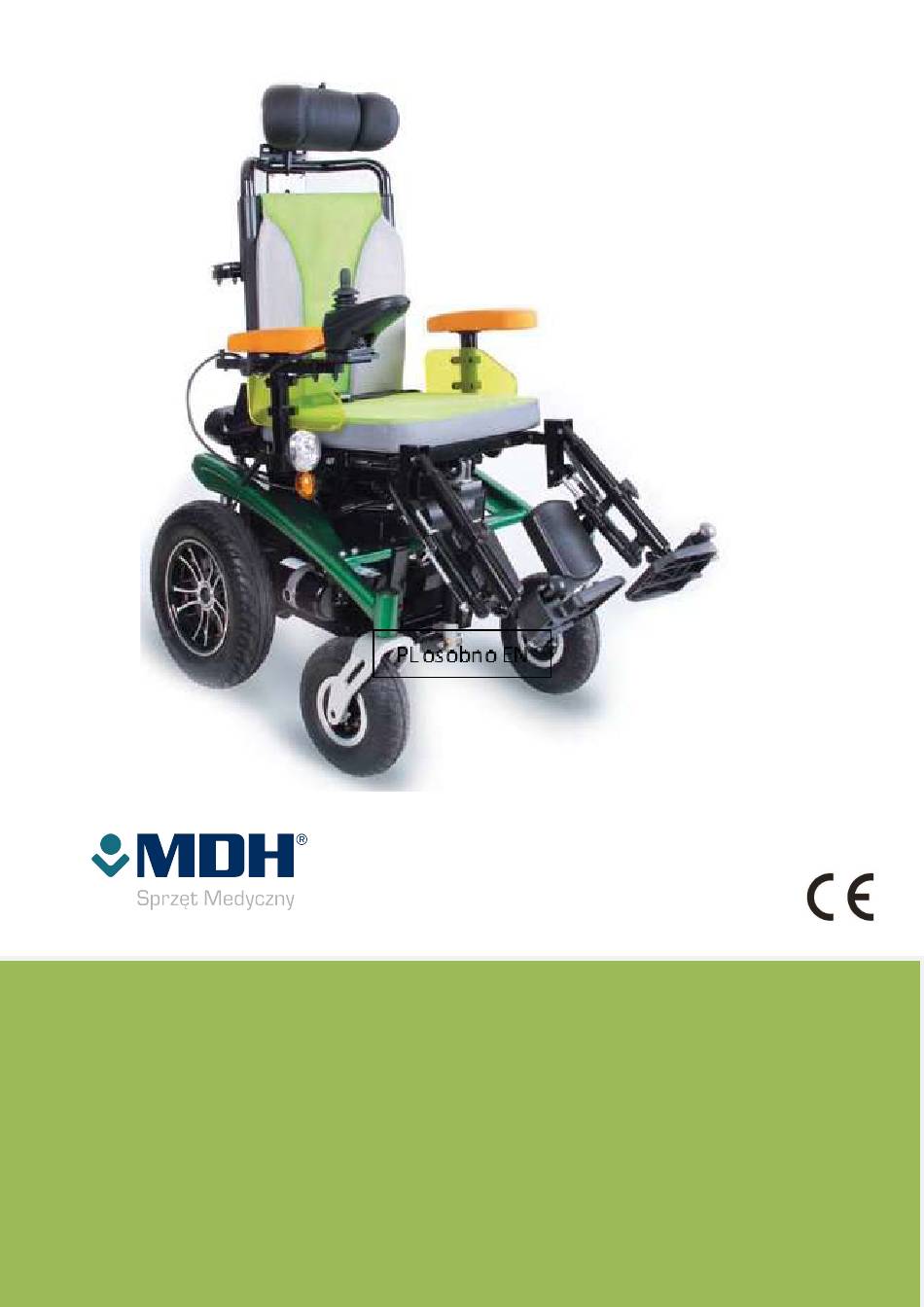

- Page 1 Instructions for use wydanie EJ 08.2023 model PCBL 1220/1420 - SCRUBBY Childrens power wheelchair...
-
Page 2: Table Of Contents
Table of contents 1. Practice before operating......................3 2. User’s safety (indications and contraindications).................3 3. Driving outdoor..........................4 4. Driving over the hills and on uneven terrains................4 5. Technical parameters........................5 6. Battery and charging.......................10 7. Comfort adjustment.........................11 8. Maintenance and cleaning.......................15 9. Specification..........................17 Please, read the instruction carefully before the first use of the wheelchair. -
Page 3: Practice Before Operating
1. PRACTICE BEFORE OPERATING Before driving the vehicle on everyday basis, you should find an open area such as a park to practice maneuvers . We recommend that when you practice driving you should be accompanied by an assistant. ... -
Page 4: Driving Outdoor
3. DRIVING OUTDOOR The wheelchair is not designed to move in the street traffic Do not use the wheelchair during rain or snow, when the temperature is higher than 30° or lower than 0° Do not use the wheelchair on soft, uneven, unprotected surfaces such as grass, gravel, sand or decks, beside a river, lake ... -
Page 5: Technical Parameters
5. TECHNICAL PARAMETERS backrest controller armrest front lights seat frame footrests front wheels rear wheels Wheelchair parts Frame - main frame, bottom frame, shock absorbers, rear and front lights Armrests - parts which enable armrest assembly and adjustment, polyurethane foam padding Backrest - upholstery, actuator which allows to adjust seat angle, safety belts, belts which allow to adjust backrest depth, element which allows to adjust backrest angle Seat –... - Page 6 Electronic control panel Electronic control panel allows to control power wheelchair, battery power status and general condition of the whole electronic system. Electronic control panel is usually placed on the armrest and joint to the battery and motor. The panel can be attached to the left /right armrest or behind the wheelchair (when it is used by a caregiver).
- Page 7 b) driving mode The joystick allows you to control and maneuver the wheelchair. Push the joystick forward to move straight on. Move the joystick backwards to drive in reverse. In order to turn left/right, move the joystick to left/right side. If you want to stop, release the joystick. Battery status bar You can find the battery status bar at the top of controller.
- Page 8 Driving lights button When you switch on the driving lights, the corresponding light icon will activate. Left turn signal button When you press the button, the corresponding light icon will activate. In order to switch off the winker, press the button again. Right turn signal button When you press the button, the corresponding light icon will activate.
- Page 9 Charger Charger plug connection 1. Plug the charger output cable to into the charging socket in the bottom part of the controller. 2. After connecting the charger output cable to the charging socket and to the power outlet, turn on the electronic control panel.
-
Page 10: Battery And Charging
6. BATTERY & CHARGING The charger is the key part of the wheelchair. In order to charge the batteries quickly and safely ,use only the original charger supplied with the wheelchair and follow the below rules. 1. Always plug the charger into the charging socket placed at the bottom part of the controller. Then, plug it into the power outlet. -
Page 11: Comfort Adjustment
7. COMFORT ADJUSTMENT First, choose the adjustment mode on your controller. Push the mode button on the controller and choose the adjustment mode. Please, look at the wheelchair icon placed on the controller – it will indicate which wheelchair’s part (backrest, seat or footrest) is ready to be adjusted. - Page 12 Controller adjustment It is possible to adjust the controller position to individual needs. Loosen the quick release lever screw under the armrest and choose required armrest position. Then screw in the screw. The controller may be placed on the right or left armrest. It can be also placed at the back of the wheelchair and used by the caregiver.
- Page 13 Battery removal In order to remove the batteries loosen the semi socket head cap screw and pull out the battery tray. semi socket head cap screw battery tray Battery The wheelchair is equipped with two 12 V maintenance-free batteries. In order to obtain maximum efficiency of your battery please, follow the instructions below: 1.
- Page 14 WARNING Never let the batteries unload completely. If you notice last yellow or first red light indicator on the controller- charge the batteries. Remember that the charging cycle should take about 9-10 hours, till the batteries are fully charged. Never stop or suspend the charging if batteries are not fully charged. Not following the above rules may lead to battery damage.
-
Page 15: Maintenance And Cleaning
8. MAINTENANCE AND CLEANING In order to ensure that your wheelchair will give you years of trouble-free operation, the user should regularly inspect and maintain the wheelchair and deliver it to the authorized distributor for annual comprehensive maintenance and inspection. If you find any problems or abnormalities while using the wheelchair, please, contact the nearest authorized service point. - Page 16 you fail to store the unit under the above conditions, the frame can rust, and the electronics can be damaged. Storage The power wheelchair should be stores in a dry place, free from temperature extremes. Always remove the batteries when the wheelchair is stored. Remember that like most electrical equipment, your power wheelchair is susceptible to damage.
-
Page 17: Specification
SPECIFICATION Product code PCBL 1220/1420 12" / 14" Seat width 920 mm Length 595 mm Width 865 mm Wheelchair height 9’’ solid Front wheels 14’’ pneumatic Rear wheels Permissible tire 3,5 bar pressure Max user weight 83 kg Max Speed 12 km/h up to 25 km Max range...
