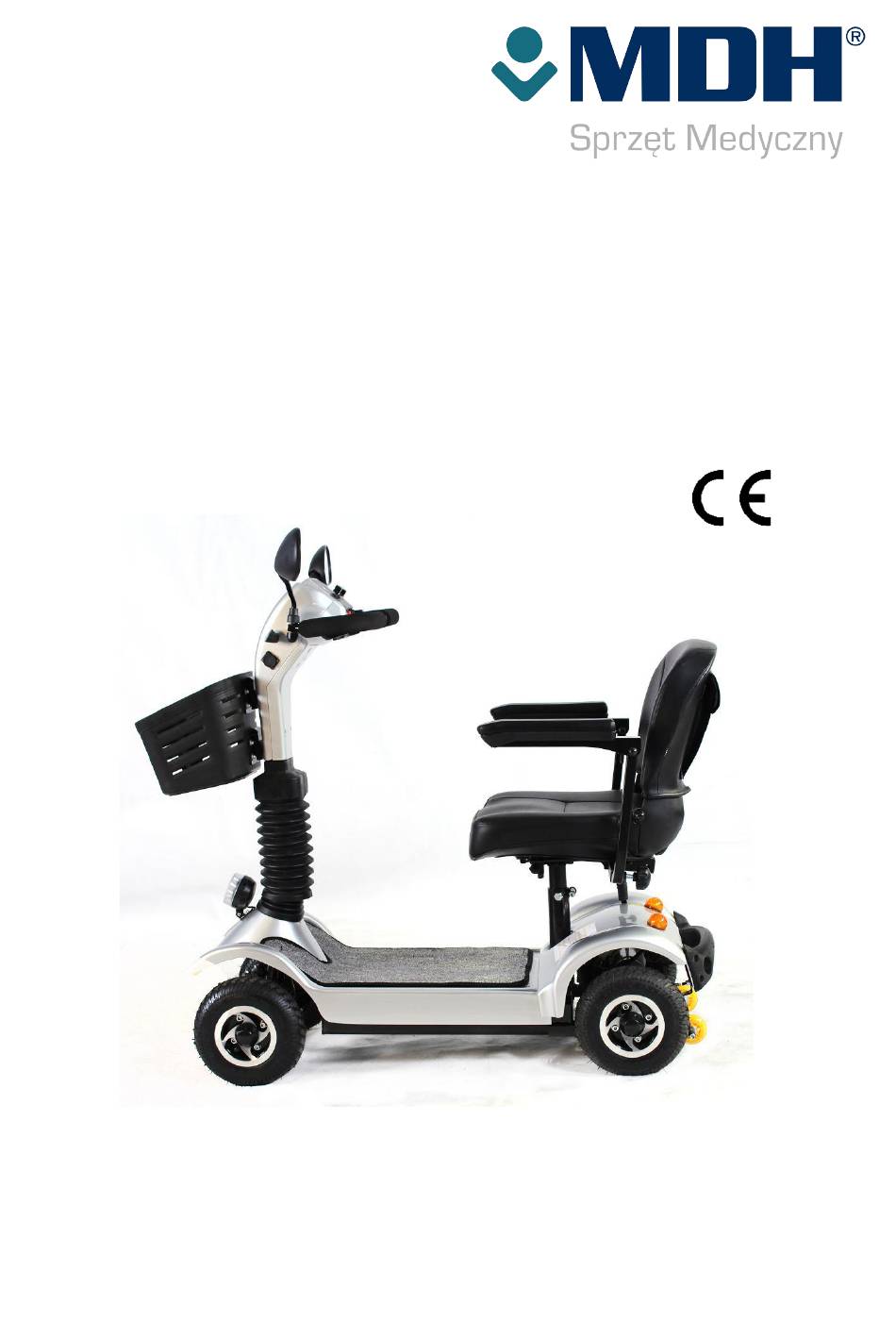

INSTRUCTIONS FOR USE
POWER WHEELCHAIR W4026 MINI
DRVK0L
Edition EJ 08.2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDH W4026 Mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitea Care MDH W4026 Mini

Summary of Contents for Vitea Care MDH W4026 Mini

  • Page 1 INSTRUCTIONS FOR USE POWER WHEELCHAIR W4026 MINI DRVK0L Edition EJ 08.2023...
  • Page 2 Read and follow all instructions, warnings and notes in this manual before attempting to operate your power wheelchair for the first time. If any part of the text is not clear or if you need any further information, please, contact your dealer. The safe use of the product depends on the careful observance of the warnings, comments and recommendations contained in the operating manual.

  • Page 3: Table Of Contents

    TABLE OF CONTENT I. INTRODUCTION............................4 I1. SAFETY (INDICATIONS & CONTRAINDICATIONS)................. II1. EMI/RFI..............................10 IV. YOUR POWER WHEELCHAIR......................V. BATTERIES AND CHARGING......................VI. SETUP..............................VII. IMPROVING COMFORT ........................VIII. BASIC TROUBLESHOOTING......................IX. CARE AND MAINTENANCE ......................X. WARRANTY ............................Xl. SPECIFICATIONS AND CONTACT DETAILS................24...

  • Page 4: Introduction

    Ⅰ. INTRODUCTION Congratulations on purchasing your new electric wheelchair. The power wheelchair you have purchased combines state-of-the-art components with safety, comfort and styling in mind guaranteeing maximum comfort of use. We are sure that the design features and trouble-free operation will improve the comfort of everyday life and guarantee full satisfaction. User safety is of the utmost importance to us.

  • Page 5: I1. Safety (Indications & Contraindications)

    Ⅱ. SAFETY GENERAL: WARNING! Do not use the wheelchair for the first time without fully reading and understanding this Instructions for use. Indications: An electrically powered wheelchair is a quality of life device designed to improve mobility. Contraindications: Contraindications for sitting position. We provide a wide range of products that ensure the best fit to the individual needs of the wheelchair user.
  • Page 6 Ⅱ. SAFETY WEIGHT LIMITATIONS The wheelchair is designed for a maximum weight of 300-1b/130 kg. Please refer to the specification table for this limit. WARNING! Exceeding the weight limit will void the warranty and may result in personal injury and damage to the scooter.
  • Page 7 Ⅱ. SAFETY WARNING! Reduce speed when making a sharp turn. When using the wheelchair at higher speeds, do not make any sharp turns. This greatly reduces the possibility of tripping and falling. To avoid personal injury or property damage, always use common sense when cornering. OUTDOOR SURFACES Our wheelchair is designed to provide optimal stability under normal driving conditions - dry, flat concrete surfaces and asphalt.
  • Page 8 Ⅱ. SAFETY ELEVATORS Modern lifts have a door edge protection mechanism that opens the door when pressed. If you are in the elevator entrance when the door begins to close, press down on the rubber edge of the door or allow the ...
  • Page 9 Ⅱ. SAFETY GETTING IN AND OUT OF THE WHEELCHAIR Getting in and out of your wheelchair requires a good sense of balance. Getting in and out of the wheelchair requires the assistance of personal specialists. Avoid injury when entering and exiting the wheelchair, observe the following safety instructions. WYŁĄCZANIE WÓZKA make sure that the wheelchair is in freewheel mode.

  • Page 10: Ii1. Emi/Rfi

    Ⅲ. EMI/RFI EMI/RFI Warnings Laboratory studies by the Food and Drug Administration (FDA) have shown that radio waves can cause the unintended movement of electric vehicles. Radio waves are a form of electromagnetic energy (EM). When electromagnetic energy adversely affects the operation of an electrical device, this adverse effect is called electromagnetic interference (EMI) or radio frequency interference (RFI).
  • Page 11 Ⅲ. EMI/RFI Are all electric vehicles susceptible to EMI / RFI interference? Each brand and model of an electric vehicle differs in terms of EMI / RFI immunity. Each mobile vehicle has a specific level of immunity to EMI/RFI interference. This resistance is measured in volts per meter (V/m). Higher resistance levels provide better protection against EMI/RFI.

  • Page 12: Your Power Wheelchair

    IV. YOUR POWER WHEELCHAIR Your wheelchair is an electric wheelchair for both indoor and outdoor use, designed to increase user mobility. CONTROL PANEL The control panel on the front part houses all the control elements (lights, buttons) needed to operate the wheelchair. See the figure on the right.
  • Page 13 V. YOUR POWER WHEELCHAIR Engine/gearbox system The engine/gearbox system is a gear train and a differential. It is a one piece, direct drive, fully sealed system designed to ensure quiet operation with maximum power and long life. Manual freewheel lever Whenever you want to push your wheelchair short distances, it must be put in freewheel mode.

  • Page 14: Batteries And Charging

    Ⅴ. BATTERIES AND CHARGING BATTERIES AND CHARGING WARNING! Make sure the first charge takes more than 12 hours and the batteries should be empty before the first charge. Charging the battery. Charge the wheelchair's batteries before using it for the first time. Keep the batteries fully charged to keep the wheelchair running smoothly.
  • Page 15 Ⅴ. BATTERIES AND CHARGING BATTERY DISPOSAL AND RECYCLING If the battery is damaged or cracked, place it in a plastic bag immediately and contact your distributor for further disposal instructions. The distributor is obliged to provide the necessary information on the recommended recycling of the battery. FREQUENTLY ASKED QUESTIONS (FAQ) How does the power supply work? When the voltage of the battery is low, the power supply works harder to charge it, sending more current to the battery.
  • Page 16 Ⅴ. BATTERIES AND CHARGING Follow the steps below to properly start using the new batteries for maximum performance and life. Charge a completely new battery before first use. This initial charge cycle gives the batteries approximately 88% of their maximum performance level. Operate the truck in known and safe areas.

  • Page 17: Setup

    Ⅵ. SETUP GETTING ON A WHEELCHAIR WARNING! Never attempt to climb on or off the wheelchair without first removing the ignition key. This will prevent the truck from moving if the control lever accidentally makes contact with the throttle. 1. Make sure the key is removed from the ignition switch. 2.

  • Page 18: Improving Comfort

    Ⅶ. IMPROVING COMFORT WARNING! Remove ignition key before adjusting steering column or seat. Never adjust the tiller or seat while the scooter is in motion. STEERING COLUMN ANGLE ADJUSTMENT The wheelchair's steering column is uniquely designed to allow it to be placed in a comfortable driving position.
  • Page 19 Ⅶ. IMPROVING COMFORT WARNING! Always press your back firmly against the seatback while adjusting the angle. WARNING! Do not use the wheelchair with the backrest tilted down. ADJUSTMENT OF THE ARMREST WIDTH The width of the wheelchair's armrest can be adjusted inwards or outwards. See the figure below: Loosen the thumbscrews on the rear of the seat frame.

  • Page 20: Basic Troubleshooting

    Ⅷ. BASIC TROUBLESHOOTING Every electromechanical device requires occasional troubleshooting. However, most problems that arise can usually be resolved with a little thought and common sense. Many of these problems occur because the batteries are not fully charged or because the batteries are drained of their ability to hold a charge any longer.

  • Page 21: Care And Maintenance

    IX. CARE AND MAINTENANCE Like any vehicle, it requires maintenance. You can do it yourself, but others require assistance from your dealer. Preventive maintenance is extremely important. If you follow the maintenance scheduled in this section, you can be sure that your wheelchair will continue to operate without problems for many years to come.
  • Page 22 IX. CARE AND MAINTENANCE OTHER CORRESPONDENCES 1、Temperature Some parts of the wheelchair are susceptible to temperature changes. Keep the wheelchair at a temperature between 18-70ºC. The battery can freeze in extremely low temperatures. The exact freezing point of a battery depends on many factors including ...

  • Page 23: Warranty

    Ⅹ.WARRANTY THREE-YEAR WARRANTY Three years for all parts of the structural frame. ONE YEAR WARRANTY For one (1) year from the time of purchase, seller will, at its option, repair or replace, at its option, to the original purchaser, free of charge, any part or electrical component found to be defective upon Distributor inspection.

  • Page 24: Xl. Specifications And Contact Details

    Xl. SPECIFICATIONS AND CONTACT DETAILS Model W4026 MINI Speed max (km/h) Width of seat (at upholstery) (mm) Seat width between the sides (mm) 410-510 Seat depth (at upholstery) (mm) Backrest height (mm) Overall height of the wheelchair (mm) 1020 Height of armrest from seat upholstery (mm) Overall width of the wheelchair (mm) Overall length of the wheelchair (mm) 1100...
