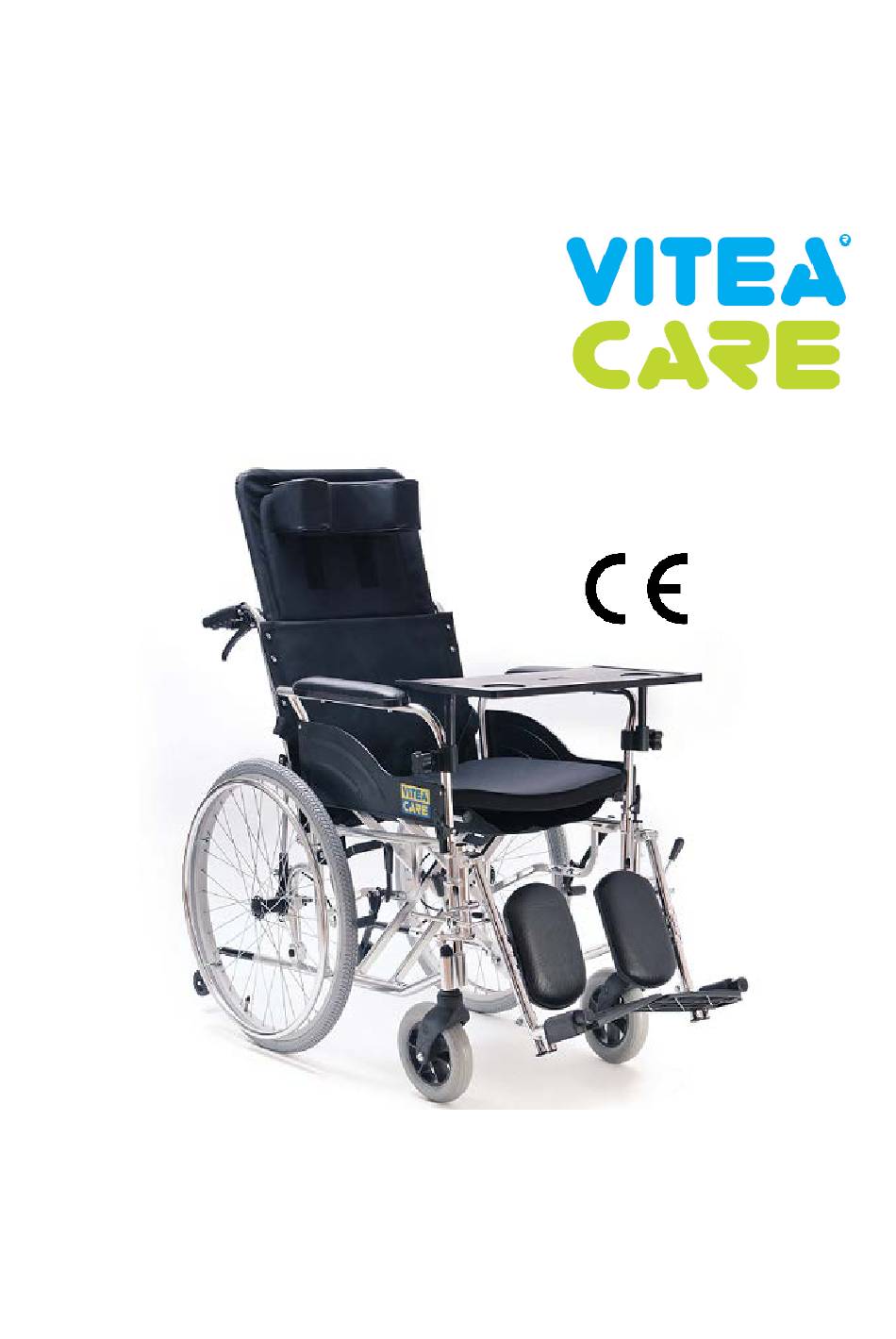

- Page 1 User’s manual Recliner Special wheelchair stabilising back and head VCWK703 MG 11.2015 Edition...
-
Page 2: Table Of Contents
Table of Contents Introduction ............................. 3 Description of product ........................3 Application ............................6 Contraindications ..........................6 Usage............................... 6 Safety of use - WARNING! ......................10 Everyday use and maintenance ...................... 11 Technical parametres ........................19 Symbols ............................19 10. -
Page 3: Introduction
1. Introduction Thank you for choosing our product. We are deeply convinced that it will meet your expectations. Please read this document before first use. This manual was made in order to provide the necessary information on the safe use of the device. The correct application of the recommendations will contribute significantly to extend the durability and aesthetics of the product. - Page 4 Anti-tip wheels 12. Front wheel fork 13. Front wheel 14. Nylon seat 15. Removable armrest 16. Tray 17. Side plate of the armrest 18. Fastener stem table. 19. Seat cushion 20. Seat frame 21. Lowering the footrest handle 22. Brake hanle 23.
- Page 5 Illustration 4. Seat cushion Illustration 5.Removable armrest Tray Two legs Two fasteners Four washers Illustration 6. Tray with mounting elements Illustration 7. Two footrests...
-
Page 6: Application

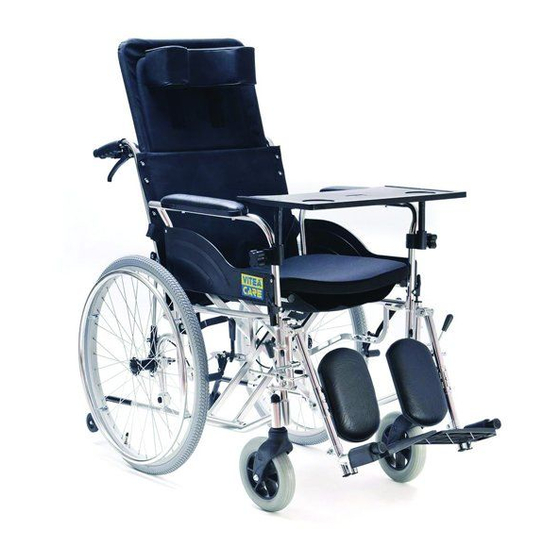

Illustration 8. Wheelchair Illustration 9. Anti-flip wheels. 3. Application The wheelchair is used in order to commute by people with disabilities e.g. after the spinal cord damages, cerebral palsy or various lower limb injuries, neuromuscular diseases, post-traumatic cranial cerebral or for geriatric patients. It is also intended for people who want to actively and comfortably participate in everyday life. - Page 7 UNFOLDING THE WHEELCHAIR • The wheelchair must be placed with rear wheels in front to You. • Unfold the handle holder towards the outside (Illustration 10.). • Then place wheelchair with front wheels in front of you. • Press seat frames, until complete unfolding (Illustration 12 ., 13.) Illustration 10.
- Page 8 Illustration Illustration 17. a 16. • Then attach the higher backrest into the holes localized in the rear of the backrest. (Illustration 18., 19.) • Headrest attach to the higher backrest to on the convenient height for the patient by using velcro.
- Page 9 Illustration 22. Illustration 23. • To install footrests, hang fixing bracket footrest on the hanger of the wheelchair frame (Illustration 24 .; 25). Then rotate it into wheelchair front until it locks (You will hear click). (Illustration 26.) • Unfold the footrests platform. Footrest lock fixing...
-
Page 10: Safety Of Use - Warning
WARNING! 6. Safety of use - a) Before using the wheelchair refer to this manual and keep it for future reference. b) While getting o and out of the wheelchair, the brakes always have to be on! c) Before getting on or getting off the wheelchair, do not stand on the footrest, you must fold or completely set aside footrests first. -
Page 11: Everyday Use And Maintenance
z) In order to avoid accidental rolling off the wheelchair, always put on the brakes when the stroller is stopped, when patient get in, get off, while changing the position. aa) Do not leave the patient in the wheelchair (even with turned on both brakes) on the descents, ramps, landings, etc. - Page 12 • Before mounting the tray, legs must be screwed. • Then unscrew the fasteners screw. Put into it two washers (one smaller second bigger), it is important that the washes were properly pressed into the fastening element.. Fasteners Illustration 28. •...
- Page 13 • Put on the armrest. • Install and open the footrests and put on it patient's feet. • Place the patient on wheelchair so that the patient is in upright sitting position (knees should be bent at an angle of ~ 90 °). PUSHING THE WHEELCHAIR BY CARETAKER •...
- Page 14 MOVING ON THE THRESHOLD OR CURBS Ahead with the help of a caretaker • Experienced wheelchair user can drive on his own from the threshold or curbs. • Caretaker should slightly tilt the wheelchair back. • Wheelchair user should keep balance on the rear wheels to reduce pressure on the front wheels.
- Page 15 The system of quick release rear wheels Illustration 31. • To install or remove the rear wheels, press the system of quick release rear wheels button (Illustration 31) and pull or push a wheel. • To remove the Anti-tip wheels, press the lock button and pull the anti-tip wheels. •...
- Page 16 • Illustration 33 shows the brake mechanism. • To activate the brake, pull the brake lever towards the front wheel to the point where the brake tightly touches to the rear wheel. • Make sure that the brake lever does not switch off when you try to move the wheelchair. •...
- Page 17 • At this point, if the wheel is provided with a valve Prest, it will be necessary to unscrew the top located on the vent. It is a small top, which can be unscrewed with fingers. When doing this, the top should move upwards. Then valve is considered open.
- Page 18 You must not use: • solvents, • toilet detergents, • sharp brushes and hard objects, • detergents that contain chlorine, • corrosive detergents, Do not clean the exerciser with pressure or steam aggregates! TECHNICAL REVIEW The review should be carried out regularly, it should be preceded by thorough cleaning the wheelchair (so as to reveal any hidden damage).
-
Page 19: Technical Parametres
8. Technical parametres Permitted user weight 100 kg Usage period: 5 years since production date The height of the wheelchair with a higher 1220 mm backrest Handle hight 930 mm Stroller width 700 mm The maximum length of the truck (with unfolded 1750 mm footrest and backrest) The minimum length of the wheelchair... -
Page 20: Contact Details
Catalog number Serial number Protect from humidity Protect from sunlight Permitted user weight. Use inside and outside buildings Maximum safe slope. The possibility of fingers jamming. Do not stand on the footrest The product is intended to transport by car. The product is not designed for use as a seat to transport in a motor vehicle.
