Vitea Care VCWK9AHG User Manual

Gold aluminium wheelchair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's manual
Gold
Aluminium wheelchair
VCWK9AHG
Edition MG 01.2016
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCWK9AHG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitea Care VCWK9AHG

Summary of Contents for Vitea Care VCWK9AHG

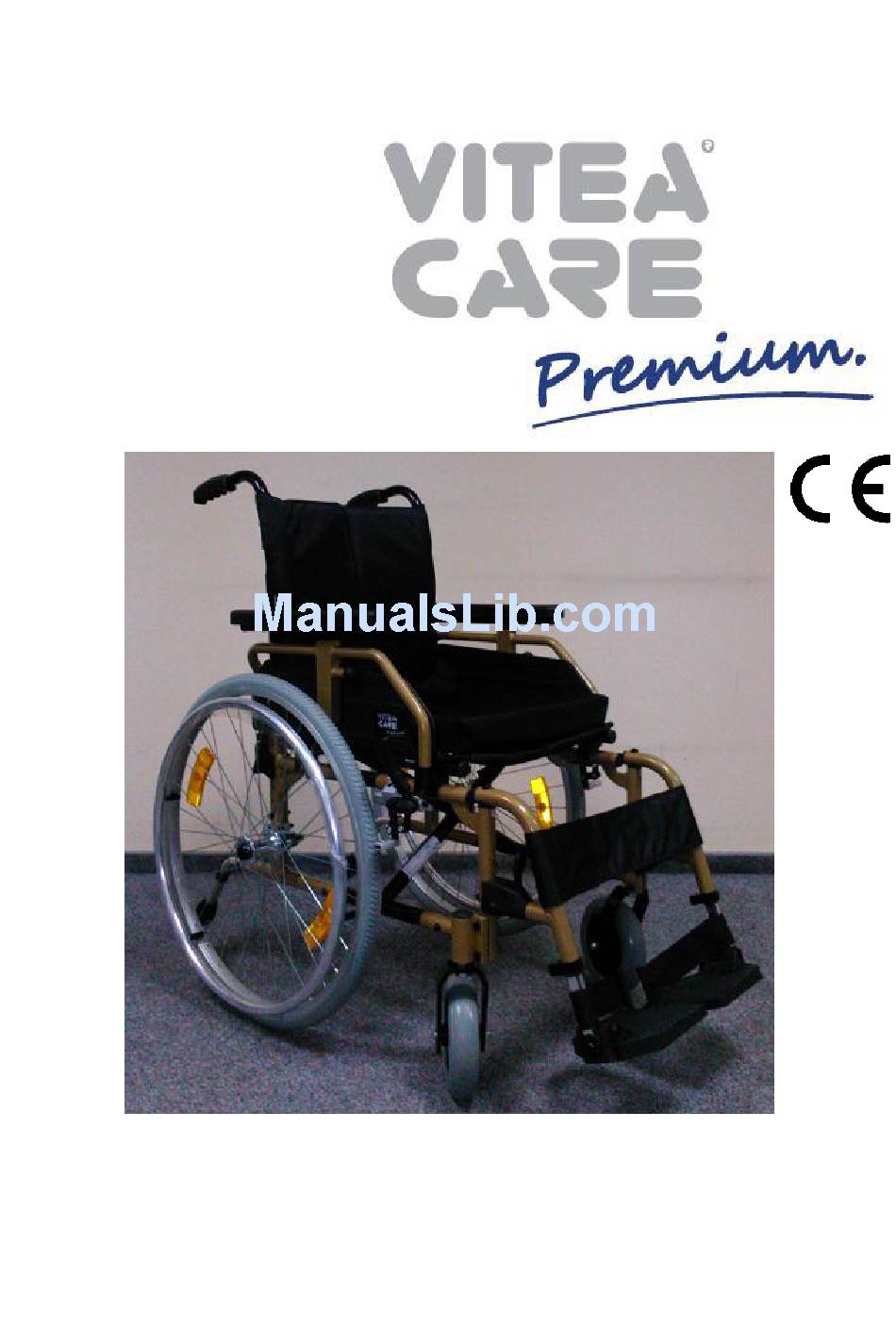

  • Page 1 User’s manual Gold Aluminium wheelchair VCWK9AHG Edition MG 01.2016...

  • Page 2: Table Of Contents

    Table of contents Introduction ............................. 3 Description ofproduct ........................3 Application ............................5 Contradictions ..........................5 Użytkowanie ............................ 5 Everyday use and maintenance ......................9 Technical paramets ........................17 Symbols ............................18 10. Contact details ..........................19 PLEASE READ WHOLE INSTRUCTION CAREFULLY BEFORE USE...

  • Page 3: Introduction

    1. Introduction Thank you for choosing our product. We are deeply convinced that it will meet your expectations. Please read this document before first use. This manual was made in order to provide the necessary information on the safe use of the device. The correct application of the recommendations will contribute significantly to extend the durability and aesthetics of the product.
  • Page 4 Elements that should be inside the packaging: Illustration 2. Two footrests Illustration 3. Seat cushion Illustration 4. Anti-flip wheels Illustraton 5. Calfrest...

  • Page 5: Application

    Illustration 6. Wheelchair 3. Application The wheelchair is used in order to commute by people with disabilities e.g. after the spinal cord damages, cerebral palsy or various lower limb injuries, neuromuscular diseases, post-traumatic cranial cerebral or for geriatric patients. It is also intended for people who want to actively and comfortably participate in everyday life. 4.
  • Page 6 Illustration 7. Illustration 8. Illustration 9. Then push the seat frame until the complete unfolded wheelchair (Illustration 8.) Mounting Frame bracket hanger footrest Illustration 10. Illustration 11. Illustration 12. To install footrests hang footrest pinon the footrest hanger on the mounting bracket footrest (illustration 10;...
  • Page 7 Ilustracja 13. Then fasten the backrest, in such a way that the pocket to be on the back side. The last step is to put cushions on the wheelchair seat and fasten the calfrest belt. Safety of use - WARNING! a) Before using the wheelchair refer to this manual and keep it for future reference.
  • Page 8 q) In order to transfer wheelchair, grab the frame. Never transfer the wheelchair by grabbing the armrests or footrest. r) Never use the wheelchair as a seat for the transportation of people in cars, buses or any motor vehicles. s) The wheelchair is designed for people up to 125 kg. t) Wheelchair must be easy to fold and to unfold.

  • Page 9: Everyday Use And Maintenance

    Keep extreme caution while unfolding / folding the wheelchair, lack of attention may result in finger trap by elements of the area of: joining and removing the footrest, brakes, while folding the wheelchair around moving parts. 7. Everyday use and maintenance SITTING ON THE WHEELCHAIR: Place the wheelchair in a position that will make easier transporting patient (by the bed, chair, close to lifting distance)
  • Page 10  Ahead with the help of a caregiver Higher curbs can be overcome with caregiver help. Caregiver should slightly tilt the wheelchair back. Cross the curb moving on the rear wheels. Then the wheelchair must be paced on all four wheels. ...
  • Page 11 REGULATIONS: ARMREST In order to repeal armrest, press the front armrest lock (Illustration 14), lift up the front part of the armrest and pull the rear armrest lock and then remove the armrest. The front armrest lock Illustration 14. Illustration 15. To remove the armrest, rotate the rear armrest lock towards the backrest (Illustration 16., 17.) and pull the armrest up.
  • Page 12 ANTI-FLIP WHEELS HEIGHT ADJUSTMENT The wheelchair is equipped with anti tip wheels, which play an important role when a person sitting in a wheelchair has a problem with the stabilization of the body. Before using the wheelchair, turn the anti-flip wheels towards the ground. To do this, push the anti-flip wheelblock and turn them towards the ground.
  • Page 13 Quick connect handle Illustration 23. Press the black button to remove the wheels and remove the wheel (Illustration 23.) You can put a wheelchair on the side which has already been demounted rear wheel and remove the other rear wheel. To change the position of the rear wheel axis (up and down), hold with Allen wrench 5 mm screws located right on the axis of the rear wheel on the outside.
  • Page 14 Front wheel axle Illutration 26. BRAKE MECHANISM Brake adjustment screw lnego Illustrationa 27. Illustration 27. show the brake mechanism seen from outside To adjust the position of the brake mechanism to the rear wheel, Allen wrench 5 mm unscrew the screws on the brake mechanism (Illustration 27.) It is important to locked brake reliably prevent the possibility of rotation of the wheel FOOTREST To change the height of the footrest, by using Allen wrench 5 mm height-adjustable footrest...
  • Page 15 PRESSURE IN WHEELS AND BRAKING POWER Pressure in wheels should be select to the user weight and then with assistance caregiver check the operation of the parking brakes (wheelchair with user facing toward the fall, can not roll on a plane with a slope of 15%.) After all the adjustments, be sure to thoroughly check all connections.
  • Page 16 COMMENTS Observe proper tire inflation level with the information provided by the manufacturer on the sides of the tire. Use a pump with a pressure gauge or manual pump cycling. EVERYDAY USE AND MAINTANCE Clean the upholstery and frame with a moist cloth, without the addition of detergents and other similar chemicals.

  • Page 17: Technical Paramets

    Once a month State connections, threaded, soldered, Pay attention to the cracks on frame the system of quick release rear material in connections threaded, wheels soldered, the system of quick release rear wheels. Once a month Condition of the tires Make sure that the tire tread is not worn and that the tires have no visible signs of damage.

  • Page 18: Symbols

    9. Symbols Confirmation of compliance with EU standards Manufacturer Date of production Read the user's manual Warning Catalog number Serial number Protect from humidity Protect from sunlight Permitted user weight. Use inside and outside buildings Maximum safe slope...

  • Page 19: Contact Details

    The product is intended to transport by car. The product is not designed for use as a seat to transport in a motor vehicle. The product is not designed for use as a seat to transport in a motor vehicle The product is intended to the transport by plane.
