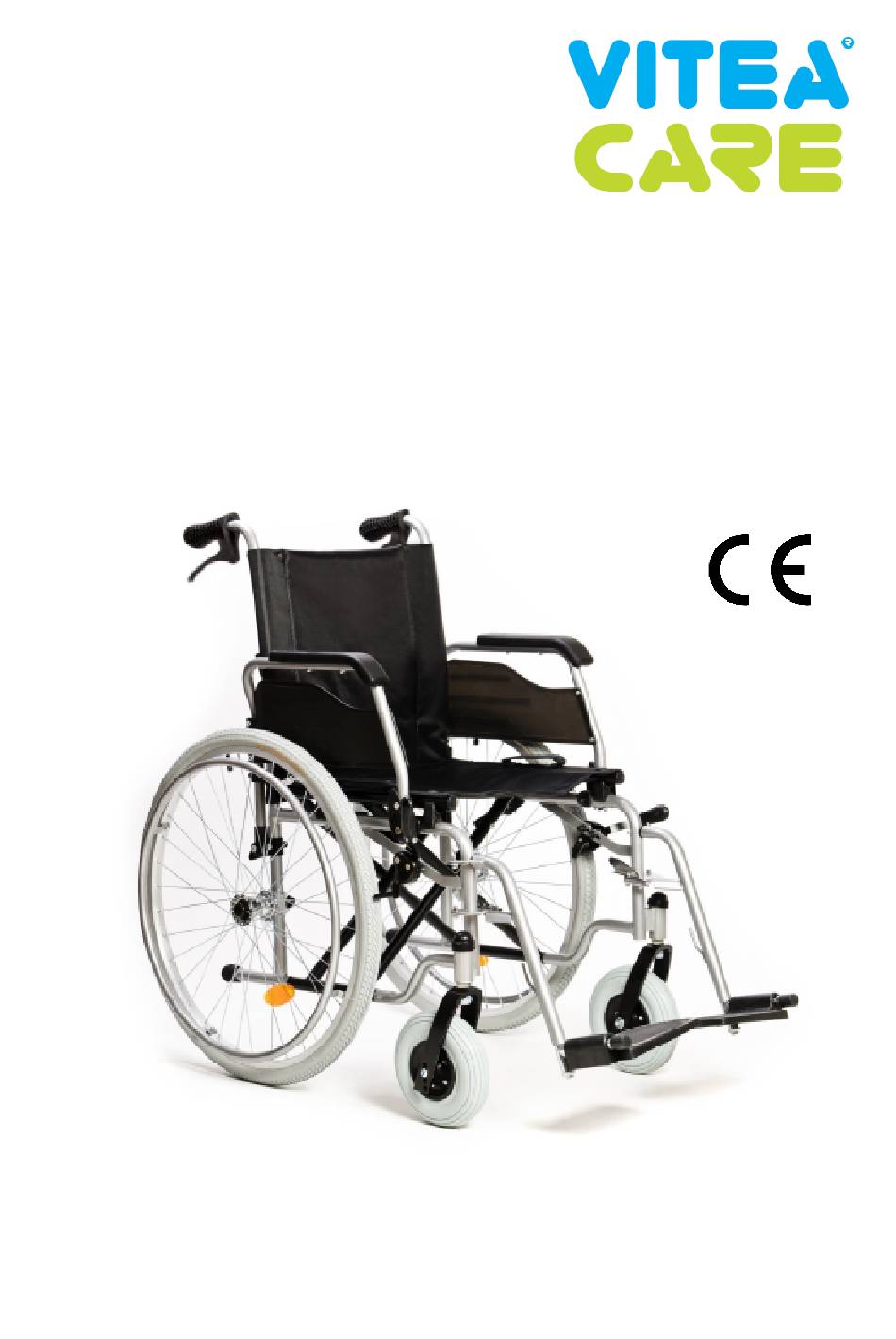

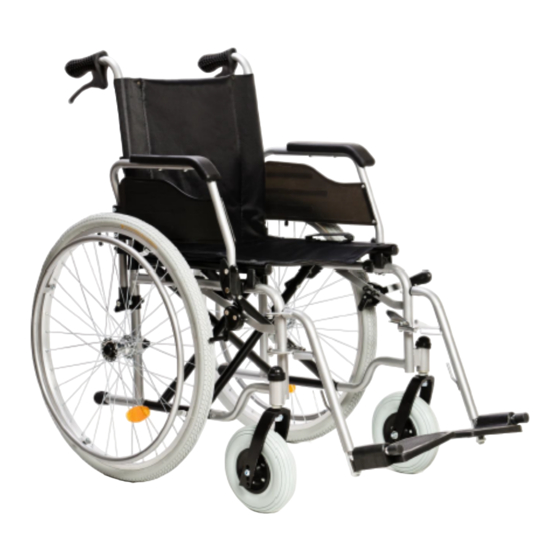

- Page 1 INSTRUCTIONS FOR USE SOLID PLUS STANDARD WHEELCHAIR WITH HANDBRAKES VCWK43L Edition EJ 08.2022...
-
Page 2: Table Of Contents
Table of Contents Introduction ............................. 3 Description of product ........................3 Indications ............................5 Contraindications ..........................5 Usage ............................... 5 Safety of use - WARNING! ......................6 Everyday use and maintenance ......................8 Technical paramets ........................15 Symbols ............................15 10. -
Page 3: Introduction
1. Introduction Thank you for choosing our product. We are deeply convinced that it will meet your expectations. Please read this document before first use. This manual was made in order to provide the necessary information on the safe use of the device. The correct application of the recommendations will contribute significantly to extend the durability and aesthetics of the product. - Page 4 13. Handle footrest 14. Cross-frame 15. Hook 16. Footrest frame 17. Footrest platform 18. Handbrake lever Elements that should be inside the packaging: Illustration 2. Belt stabilizing the calf Hook Illustration 3. Two footrests Illustration 4. Wheelchair...
-
Page 5: Indications
3. Application The wheelchair is used in order to commute by people with disabilities e.g. after the spinal cord damages, cerebral palsy or various lower limb injuries, neuromuscular diseases, post-traumatic cranial cerebral or for geriatric patients. It is also intended for people who want to actively and comfortably participate in everyday life. 4. -
Page 6: Safety Of Use - Warning
Footrest lock Mounting bracket footrest Frame hanger Illustration 8. Illustration 9. • The belt stabilizing the calf must be fasten with velcro on the footrests frame. • To avoid slipping belts, hook it on hangers. (Illustration 10.) Illustration 10. 6. Safety of use - WARNING! a) Before using the wheelchair refer to this manual and keep it for future reference. - Page 7 j) The wheelchair is designed to use indoors and outdoors only on hard and even surfaces. k) Using the wheelchair on an unstable surface (covered with ice, wet, greasy, sandy) is unacceptable- it causes risk of falling, l) You can only use the wheelchair on surfaces where all four wheels are touching the ground. m) To overcome architectural barriers (steep or long climbs, thresholds or curbs, etc.) help of caretaker is needed.
-
Page 8: Everyday Use And Maintenance
hh) Storing the wheelchair in areas with very high humidity (baths, laundry, etc.) or in the open air, also the lack of hygiene causes rapid loss of operating parameters and aesthetic of the product. ii) It is unacceptable to use the wheelchair after discovering any visible or detectable damages or when the wear of some parts may cause an accident. - Page 9 PUSHING THE WHEELCHAIR BY CARETAKER • Before use, make sure that no part of the patient's body or his / hers clothing is not exposed to hook with the moving parts of the wheelchair. • If patient can not sit on one's own, wheelchair should by equipped with stabilizing belts (belts, which are in standard equipment to protect the patient from sliding off the seat).
- Page 10 Higher curbs can be crossed going backwards with the help of a caretaker • Turn the wheelchair in such a way that both rear wheels are turned toward the curb. • Wheelchair user should keep balance on the rear wheels to reduce the pressure on the front wheels.
- Page 11 REGULATIONS: BRAKE MECHANISM Brake lever Brake Illustration 15. • Illustration 15. shows the brake mechanism. • To activate the brake, pull the brake lever towards the front wheel to the point where the brake is tightly touching to the rear wheel •...
- Page 12 Footresr frame Wrench number 12 Illustration 17. PUMPING TYRE (It applies to wheelchair fitted with wheels pumped) Schrader valve Prest valve Illustration Illustration • Before pumping the tires, identify the type of valve which is located on the tire. This may be one of the two valves shown in Illustration 18 and 19.
- Page 13 • At the beginning of pumping the pressure in tyres should be checked at some points. Check tire pressure with your fingers at the end of the tread. If it is possible, make only a millimeter indentation. It means that the tire has enough air. If necessary continue pumping.
- Page 14 TECHNICAL REVIEW The review should be carried out regularly, it should be preceded by thorough cleaning the wheelchair (so as to reveal any hidden damage). Frequency Object of control Comments Before first Checking the technical condition and Check if any elements have any installation all the elements within the visible mechanical damage.
-
Page 15: Technical Paramets
8. Technical paramets Permitted user weight 120 kg Usage period: 5 years since production date Wheelchair hight 960 mm Wheelchair width 600 mm 660 mm (depending on the model) Wheelchair lenght 1120 mm Seat width 410 mm 450 mm (depending on the model) Seat depth 400 mm Back width... - Page 16 Warning Catalog number Serial number Protect from humidity Protect from sunlight Permitted user weight. Use inside and outside buildings Maximum safe slope. The product is intended to transport by car. The product is not designed for use as a seat to transport in a motor vehicle. Unique Device Identifier The possibility of fingers jamming.
-
Page 17: Contact Details
Do not stand on the footrest Temperature of storage and use Medical device 10. Contact details mdh Sp. z o.o. ul. Maratońska 104, 94-007, Łódź, Polska tel. +48 42 674 83 84 fax. +48 42 636 52 21 www.mdh.pl www.viteacare.com...
