Operating Instructions
FTZ-UNI-15

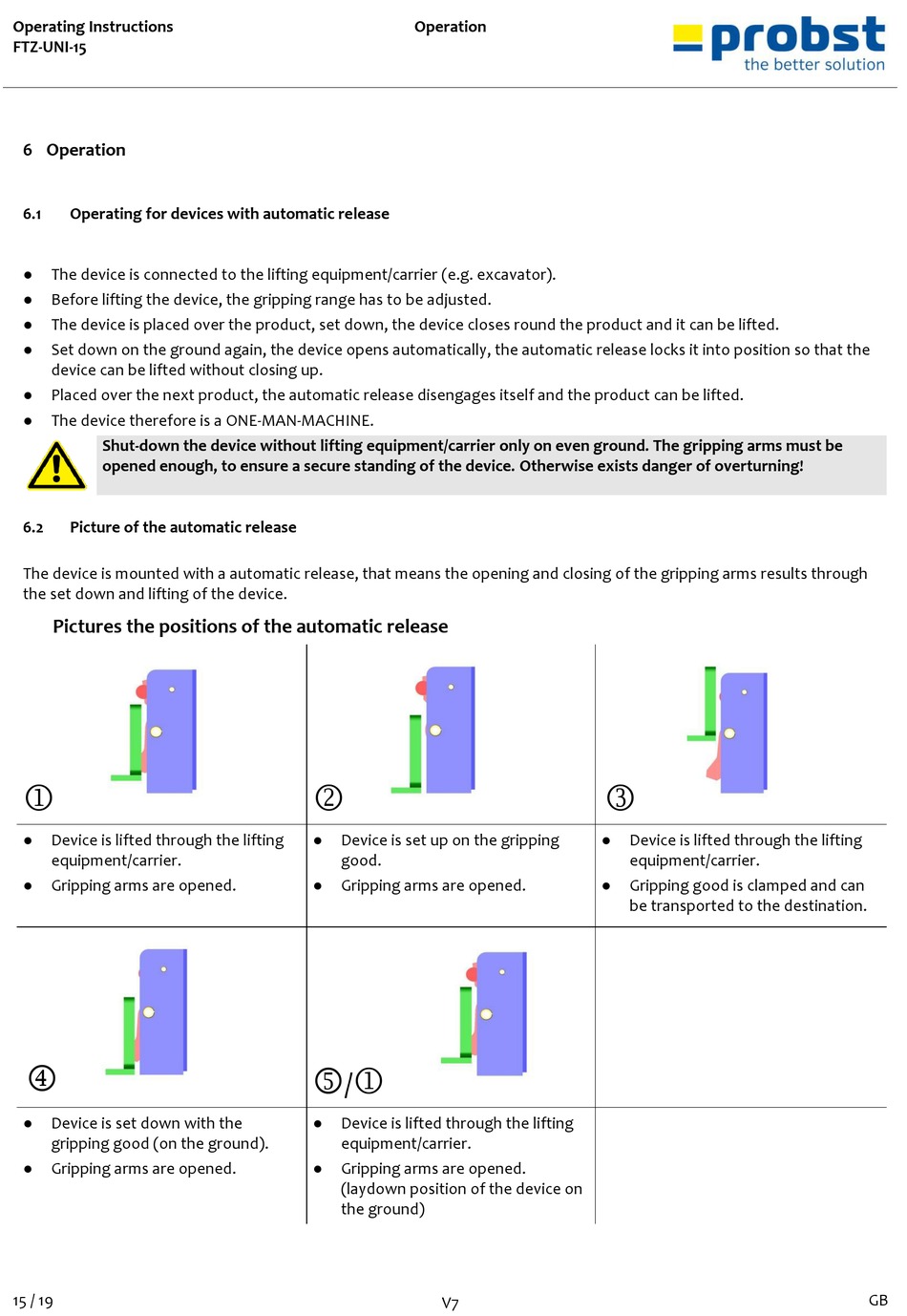

6 Operation

6.1

Operating for devices with automatic release

●
The device is connected to the lifting equipment/carrier (e.g. excavator).
●
Before lifting the device, the gripping range has to be adjusted.
●
The device is placed over the product, set down, the device closes round the product and it can be lifted.
●
Set down on the ground again, the device opens automatically, the automatic release locks it into position so that the
device can be lifted without closing up.
●
Placed over the next product, the automatic release disengages itself and the product can be lifted.
●
The device therefore is a ONE-MAN-MACHINE.
Shut-down the device without lifting equipment/carrier only on even ground. The gripping arms must be
opened enough, to ensure a secure standing of the device. Otherwise exists danger of overturning!
6.2

Picture of the automatic release

The device is mounted with a automatic release, that means the opening and closing of the gripping arms results through
the set down and lifting of the device.
Pictures the positions of the automatic release

●
Device is lifted through the lifting
equipment/carrier.
●
Gripping arms are opened.

●
Device is set down with the
gripping good (on the ground).
●
Gripping arms are opened.
15 / 19
Operation

●
Device is set up on the gripping
good.
●
Gripping arms are opened.
 
/
●
Device is lifted through the lifting
equipment/carrier.
●
Gripping arms are opened.
(laydown position of the device on
the ground)
V7

●
Device is lifted through the lifting
equipment/carrier.
●
Gripping good is clamped and can
be transported to the destination.
