Operating Instructions
FTZ-UNI-15

5 Adjustments

5.1

Adjustment of the gripping range

Before the product can be lifted and transported, the gripping range has to be adjusted to the dimensions of the
product.
●
The adjustment of the gripping range may never take place on both sides at the same time. Always adjust
the gripping range first to the one and then on the other side.
●
Pull the spring bolt upwards, rotate around 180° and lock in position (in nick).
●
Move the rectangular tube, until the gripping range is approx. 5 cm larger than the product.
●
Pull the spring bolt upwards again and rotate around 180°.
●
Move the rectangular tube so long until the spring bolt engages in one of the holes.
●
The adjustment of the gripping range has to follow general symmetrical.
That means, it must be used in each case the same adjustable hole with both rectangular tubes.
●
Caution while adjusting of the gripping range. There is a danger of injuring the hands!
12 / 19

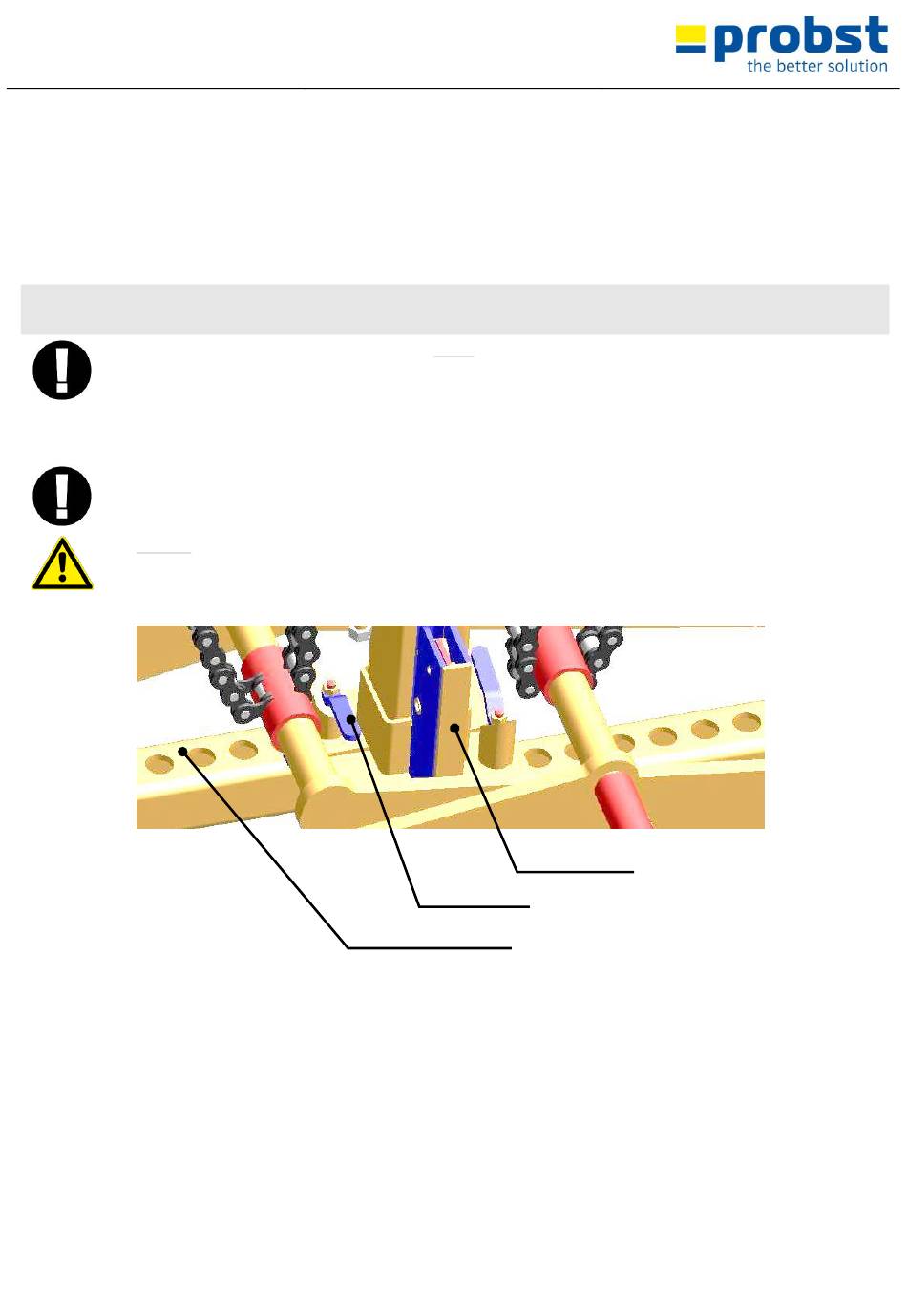

Adjustments
Spring bolt
Rectangular tube with adjustable holes
V7
Automatic release
GB
