Adjusting Gripping range

5.1

Adjustments

6 Adjusting Gripping range
The device (H-FVZ-UNI) must be adjusted individual, independence of his profile and size, before the gripping
good (bolder) can be gripped.
●
Pull the spring bolt (2) out and rotate it, to release the securing device on the device (H-FVZ-UNI).
●
Lift the device (H-FVZ-UNI), position it over the gripping good (bolder) and set it down on the ground.
●

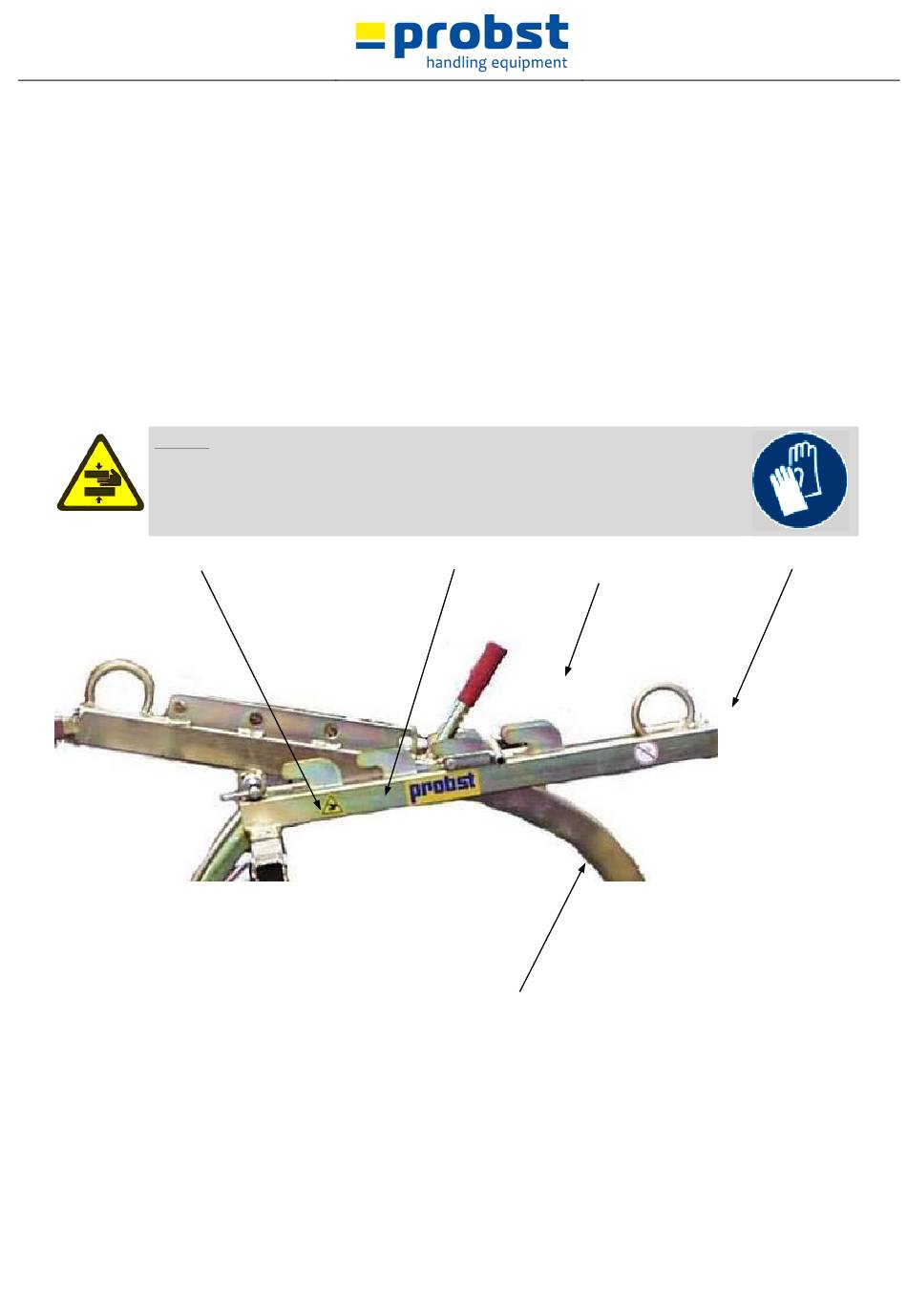

Adjust the gripping range of the gripping arms through the grid system (3) as follows.
●
Lift the device (H-FVZ-UNI) with one hand on the suspension lug (4).
●
Move the single gripping arm (6), through the adjusting lever (5) with the other hand up.
●
And displace the single gripping arm (6) in the corresponding position of the grid system.
Caution while adjusting of the gripping range.
There is a danger of injuring the hands! Use safety gloves 
