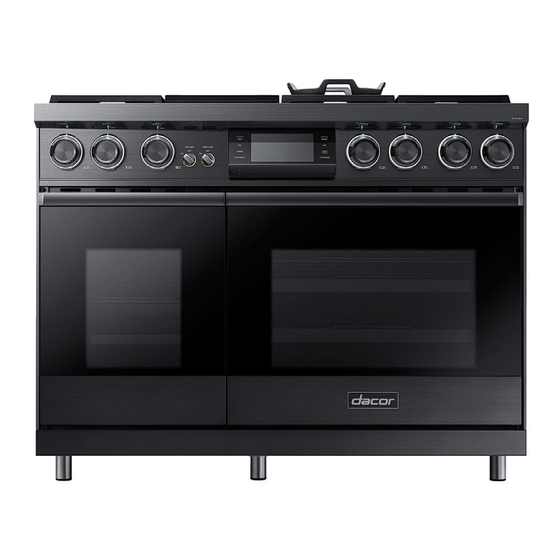

- Page 1 Installation Instructions Modernist Pro Range DOP48M96D/DOP36M94D Part No. 112158 Rev G...
-
Page 2: Table Of Contents
Contents Before You Begin Important Customer-Assurance Information Important Safety Instructions Read All Instructions Before Using This Manual Appliance Symbols Used In This Manual About the Anti-tip Device Installation-Related Safety Instructions Product Specifications What Is Included (DOP48M96) What Is Included (DOP36M94) Needed Tools and Parts Installation Requirements Pre-Installation Checklist... -
Page 3: Before You Begin
The electrical diagram is attached inside the burner box. Customer-Assurance Information To resolve questions and installation issues, contact your Dacor dealer or the Dacor Customer Assurance Team. Before calling, have the range's model/serial numbers available. (See the range's data label: Double oven – left door trim of small oven; single oven – left door trim.) -
Page 4: Important Safety Instructions
Important Safety Instructions READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE • To avoid property damage/personal injury/death, follow the directions in this manual. • Electrical and gas equipment with moving parts can be dangerous. The Important safety instructions in this manual are intended to minimize the risk of property damage, personal injury, and death. -
Page 5: Installation-Related Safety Instructions
Important Safety Instructions Installation-Related Safety Instructions This section consists of general and specific safety instructions surrounding the range's installation. WARNING Read these instructions thoroughly to reduce risk of property damage, fire, personal injury, and death, and to ensure proper installation. General Safety •... - Page 6 Important Safety Instructions Installation-Related Safety Instructions, cont. This section consists of general and specific safety instructions surrounding the range's installation. WARNING Read these instructions thoroughly to reduce risk of property damage, fire, personal injury, and death, and to ensure proper installation. Gas Safety If you smell gas: do not use the range, and close the gas valve.
- Page 7 Important Safety Instructions Installation-Related Safety Instructions, cont. This section consists of general and specific safety instructions surrounding the range's installation. WARNING Read these instructions thoroughly to reduce risk of property damage, fire, personal injury, and death, and to ensure proper installation. Installation Safety •...
- Page 8 Important Safety Instructions Installation-Related Safety Instructions, cont. This section consists of general and specific safety instructions surrounding the range's installation. WARNING Read these instructions thoroughly to reduce risk of property damage, fire, personal injury, and death, and to ensure proper installation. Cooktop Safety •...
- Page 9 Important Safety Instructions Installation-Related Safety Instructions, cont. This section consists of general and specific safety instructions surrounding the range's installation. WARNING Read these instructions thoroughly to reduce risk of property damage, fire, personal injury, and death, and to ensure proper installation. Oven Safety •...
-
Page 10: Product Specifications
Product Specifications What Is Included (DOP48M96D) The range comes with brass and porcelain burner caps to suit customer preference. Grates (3) Burner heads (6) and Burner Griddle (1) caps (7) Convection filter (3) Temp. Probe (2) Glide racks (2) WOK ring (1) -
Page 11: What Is Included (Dop36M94)
Product Specifications What Is Included (DOP36M94D) The range comes with brass and porcelain burner caps to suit customer preference. Grates (2) Burner heads (4) and Burner Wire rack (1) caps (5) Convection filter (2) Temp. Probe (1) Glide racks (2) Griddle (1) WOK ring (1) Anti-tip bracket (1) -
Page 12: Needed Tools And Parts
Product Specifications Needed Tools and Parts Parts Needed Gas line shut-off valve Flexible metal appliance Flare union adapter ¾ in connector ½ in (ID) x 5 ft (NPT) x ½ in (ID) 135-degree elbow Lag bolt or ½-in (OD) Flare union adapter ½ in (optional) sleeve anchor (NPT) x ½... -
Page 13: Installation Requirements
Installation Requirements Pre-Installation Checklist 1. Before installing the range, read this manual thoroughly. 2. Plan for a location where the range will not be subject to strong drafts. 3. Remove packaging, grate boxes, regulator with literature, and literature package from the range, verify that all items are present before beginning the installation. General Requirements Clearances and Dimensions •... - Page 14 Installation Requirements Product Dimensions—Product tolerances: ±1/16” (±1.6 mm) DOP36M94D: 35 7/8” (91.1 cm) wide ; DOP48M96D: 47 7/8” (121.6 cm) 48” (121.9 cm) Front of open door 28 1/8” (71.4 cm) Front of handle 27 1/2” (69.9 cm) Front of bull nose 26”...
- Page 15 Range Model DOP36M94D 42” (106.7 cm)*; 36” (91.4 cm)** 36” (91.4 cm)**; 36 1/8” (91.7 cm)*** 33 1/2” (84.8 cm) DOP48M96D 54” (137.2 cm)*; 48” (121.9 cm)** 48” (121.9 cm)**; 48 1/8” (122.2 cm)*** 43 1/2” (110.5 cm) *Recommended, **Minimum, ***Maximum Backsplash 3/8"...
-
Page 16: Location Requirements
Installation Requirements Location Requirements DOP48M96D (rear) 8 1/8" (20.6 cm) Gas Inlet 26 5/8" (67.6 cm) Shown with electrical access cover removed 6 5/8" (16.8 cm) E - Electrical wiring 5 1/2" access hole in bottom (13.9 cm) DOP36M94D (rear) 11 3/16"... - Page 17 Model DOP36M94D 8 7/8" (22.5 cm) 6 5/8" (16.8 cm) 11 3/16" (28.4 cm) 24 1/4" (61.6 cm) DOP48M96D 5 1/2" (13.9 cm) 6 5/8" (16.8 cm) 8 1/8" (20.6 cm) 26 5/8" (67.6 cm) Recommended position for...
-
Page 18: Gas Requirements
Installation Requirements Gas Requirements Provide Adequate Gas Supply This oven's installation must conform to local codes or, in their absence, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54. This range's cooktop is designed to operate at a manifold pressure of 5 in. (13 cm) of water column for natural gas/natural gas at high altitude (NG-H) or 10 in. -
Page 19: Electrical Requirements
Installation Requirements Electrical Requirements Follow these directions to reduce risk of property damage, personal injury, or death. WARNING The owner shall ensure that the electrical service meets requirements and that the electrical outlet is installed by a licensed electrician. All Ranges •... -
Page 20: Installation Instructions
Installation Instructions Preparing for Installation WARNING • If the gas or electric service provided does not meet the product specifications, do not proceed with the installation. Call the dealer, the gas supplier or a licensed electrician. • Before installing the range, you must locate and secure the anti-tip bracket to the floor. Unpacking the Range Unpack the parts box and verify that all required components have been provided. - Page 21 ANTI-TIP BRACKET PLACEMENT SCREW SIZE Sub-Floor Type/Floor Covering Thickness Screw Size DOP36M94D DOP48M96D Dim. Concrete/wood subfloor, no floor covering 13” (33.0 cm) 3 1/2” (8.9 cm) over top 22 1/2” (57.2 cm) 22 1/2” (57.2 cm)
- Page 22 Installation Instructions Installing the Anti-Tip Bracket and Foot, cont. Wall-Mounting the Anti-Tip Bracket For this option to be suitable, the range front panel must be 26 1/2" (67.3 cm) or less from the wall, and the bracket screws must be able to engage the base plate inside the wall. Notches on the sides of the bracket indicate the minimum height of the base plate and that any floor covering thickness will not impede secure threading.
- Page 23 Range front panel ANTI-TIP BRACKET PLACEMENT Dimension DOP36M94D DOP48M96D 14 1/8” (35.9 cm) 3 1/2” (8.9 cm) Removing the Oven Door WARNING Do not try to disengage the hinge catches with the door(s) removed. The hinge springs could •...
- Page 24 Installation Instructions Removing the Oven Door, cont. Lift the oven door to about a 15° angle from vertical. With both hands, grasp the door just below the Door handle, and pull up slightly. Gripping Points 5. On the bottom-right edge of the door, pull out the wire connector, and disconnect the wires.
- Page 25 Instal Installation lation Instruction Instructions s Installing the Flexible Conduit Remove the conduit connection plate from the rear of the drawer body, and flip it as shown. (Use the 1⅛" hole.) 1⅛" 1⅜" 1⅛" 1⅜" 1. Prepare the conduit cord (Figure 1). 2.
- Page 26 Installation Instructions Installing the Flexible Conduit, cont. Installing a 4-wire conduit • Aluminum building wire may be used but it must be rated for the correct amperage and voltage. Connect wires according to this Step 4 depending on the number of wires. •...
- Page 27 Installation Instructions Gas Connection, cont. Before sliding the range into the cabinet Regulator connection 1. Turn off the gas-supply valve, and turn off power to the range. 2. Connect a flexible gas line to the shut-off valve installed on the stub out. The line must be long enough that the range can be pulled out for service without disconnecting the line.
- Page 28 Hinge slot Notch (hinge bottom) Adjusting the Door (DOP48M96D only) Ensure the oven doors are parallel and flush. To Steps 1 and 3 do this, use the three bolts (one on the right- upper side, and one under the each hinge) .The upper bolt adjusts the door horizontally.
-
Page 29: Installing The Burner-Control Knobs
Installation Instructions Adjusting the Door (DOP48M96D only), cont. NOTE Lifting the door-hinge latches too much makes fastening the two screws difficult. To adjust door side to side, turn the upper bolt (see left). Installing the Burner-Control Knobs WARNING Installing the range knobs in the wrong position may result in damage to the griddle included with the range. -
Page 30: Rangetop Assembly
Installation Instructions Rangetop Assembly Assembling the Burners CAUTION • Do not operate the rangetop burners unless properly assembled. • Do not push in a rangetop knob while removing the burner; a slight electrical shock might result. • Do not remove the top or touch a burner electrode while another burner is on. 1. - Page 31 Installation Instructions Dual Burner Head/Cap, cont. 3. Match the burner caps to the burners by size, then install the caps on the heads. Round Burner Head/Cap Put the burner heads on the burner bases as shown at left. The bottom of the head fits within the burner base.
- Page 32 Installation Instructions SimmerSear Assembly 1. Put the burner heads in place as shown. The locating tab on the burner head goes in the keyed hole as shown. Burner Locating Head Burner Base Keyed Hole 2. Put the burner rings on the burner heads as shown. Match the tabs on the bottom of the ring to the Burner slots on the head.
- Page 33 Installation Instructions Installing the Grates For best results and longest life, install the grates as instructed. When installed properly, the openings in the grates are centered over the burners. The grates occupy specific positions on the rangetop. For maximum stability and safe operation, these grates should only be used in their proper positions.
-
Page 34: Verifying Proper Operation
4. If the range still does not work, contact Dacor Customer Assurance: (800) 793-0093 x2813. Be ready with the model/serial numbers. (See the data label, left-side door trim.) Do not try to repair the range yourself. Dacor is not responsible for the cost of correcting problems caused by a faulty installation. -
Page 35: Installation Checklist
Instal Installation lation Instruction Instructions s Installation Checklist WARNING The installer should complete this checklist to ensure thorough, proper installation. Proper installation is the responsibility of the homeowner. • Was the plastic sheeting peeled off the range exterior? • Was all packaging removed from the oven chamber? •... - Page 36 DG68-00936A-00 Dacor ∙ 14425 Clark Avenue, City of Industry, CA 91745 ∙ Phone: (800) 793-0093 ∙ Fax: (626) 403-3130 ∙ www.dacor.com...
