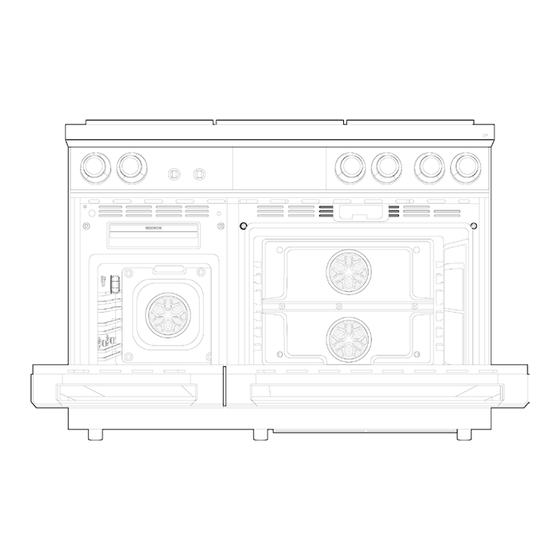

- Page 1 Installation Instructions Modernist Pro Range DOP48M86D*/DOP36M86D* Part No. 115116 Rev A...
-
Page 2: Table Of Contents
Table of Contents Before You Begin Important Customer-Assurance Information Important Safety Instructions Read All Instructions Before Using This Manual Appliance Symbols Used In This Manual About the Anti-tip Device Installation-Related Safety Instructions Product Specifications What is Included (DOP48M86D*) What is Included (DOP36M86D*) Needed Tools and Parts Installation Requirements Pre-Installation Checklist... -
Page 3: Before You Begin
The electrical diagram is attached inside the burner box. Customer-Assurance Information To resolve questions and installation issues, contact your Dacor dealer or the Dacor Customer Assurance Team. Before calling, have the range's model/serial numbers available. (See the range's data label: Double oven –... -
Page 4: Important Safety Instructions
Important Safety Instructions READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE • To avoid property damage/personal injury/death, follow the directions in this manual. • Electrical and gas equipment with moving parts can be dangerous. The Important safety instructions in this manual are intended to minimize the risk of property damage, personal injury, and death. Read these instructions. -
Page 5: Installation-Related Safety Instructions
Important Safety Instructions Installation-Related Safety Instructions This section consists of general and specific safety instructions surrounding the range's installation. Read these instructions thoroughly to reduce risk of property damage, fire, personal injury, and death, and to ensure proper installation. General Safety •... - Page 6 Important Safety Instructions Installation-Related Safety Instructions, cont. Read these instructions thoroughly to reduce risk of property damage, fire, personal injury, and death, and to ensure proper installation. Gas Safety If you smell gas: • do not use the range, and close the gas valve. •...
- Page 7 Important Safety Instructions Installation-Related Safety Instructions, cont. This section consists of general and specific safety instructions surrounding the range's installation. Read these instructions thoroughly to reduce risk of property damage, fire, personal injury, and death, and to ensure proper installation. Installation Safety •...
- Page 8 Important Safety Instructions Installation-Related Safety Instructions, cont. This section consists of general and specific safety instructions surrounding the range's installation. Read these instructions thoroughly to reduce risk of property damage, fire, personal injury, and death, and to ensure proper installation. Cooktop Safety •...
- Page 9 Important Safety Instructions Installation-Related Safety Instructions, cont. This section consists of general and specific safety instructions surrounding the range's installation. Read these instructions thoroughly to reduce risk of property damage, fire, personal injury, and death, and to ensure proper installation. Oven Safety •...
-
Page 10: Product Specifications
Product Specifications What Is Included (DOP48M86D*) The range comes with brass and porcelain burner caps to suit customer preference. Grates (3) Burner heads (6) and Burner Glide racks (2) caps (7) Convection filter (2) Temp. Probe (1) Wire rack (1) Small rack (1)* Steam tray (2)* Anti-tip bracket (1) -
Page 11: What Is Included (Dop36M86D*)
Product Specifications What Is Included (DOP36M86D*) The range comes with brass and porcelain burner caps to suit customer preference. Grates (3) Burner heads (6) and Burner Glide racks (2) caps (7) Convection filter (3) Temp. Probe (2) Wire rack (1) WOK ring (1) Anti-tip bracket (1) English... -
Page 12: Needed Tools And Parts
Product Specifications Needed Tools and Parts Parts Needed Gas line shut-off valve Flexible metal appliance Flare union adapter ³/₄ in (NPT) x connector ¹/₂ in (ID) x 5 ft ¹/₂ in (ID) 135-degree elbow (op- Lag bolt or 1/2-in (OD) Flare union adapter 1/2 in (NPT x 1/2 tional) sleeve anchor... -
Page 13: Installation Requirements
Installation Requirements Pre-Installation Checklist Before installing the range, read this manual thoroughly. 2. Plan for a location where the range will not be subject to strong drafts. 3. Remove packaging, grate boxes, regulator with literature, and literature package from the range, verify that all items are present before beginning the installation. - Page 14 Installation Requirements Product Dimensions—Product tolerances: ±1/16” (±1.6 mm) DOP36M86D*: 35 7/8” (91.1 cm) wide ; DOP48M86D*: 47 7/8” (121.6 Range Installed Range Installed with Downdraft Vent English...
- Page 15 Installation Requirements Cabinet Dimensions Maintain all max/min dimensions and clearances in the diagrams below for safe use. CUTOUT DIMENSIONS Range Model 42” (106.7 cm)*; 36” (91.4 cm)** 36” (91.4 cm)**; 36 1/8” (91.7 cm)*** 33 1/2” (84.8 cm) DOP36M86D* 54” (137.2 cm)*; 48” (121.9 cm)** 48”...
-
Page 16: Location Requirements
Installation Requirements Location Requirements DOP36M86D* (rear) DOP36M86D* (rear) Measurement with appli- ance legs adjusted to lowest height. 2. The hole size for the electri- cal wiring may be increased to 1 1/8” (2.9 cm) by removing the conduit bracket in the bottom of the range electri- cal box. - Page 17 Installation Requirements Gas and Electrical Service • See below for the recommended location of the gas inlet and electrical junction box/receptacle. Existing utilities may be used if they are compatible with this range. Check local building codes for allowed gas- valve locations.
-
Page 18: Gas Requirements
Installation Requirements Gas Requirements Provide Adequate Gas Supply This oven's installation must conform to local codes or, in their absence, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54. This range's cooktop is designed to operate at a manifold pressure of 5 in. (13 cm) of water column for natural gas/natural gas at high altitude (NG-H) or 10 in. -
Page 19: Electrical Requirements
Installation Requirements Electrical Requirements Follow these directions to reduce risk of property damage, personal injury, or death. The owner shall ensure that the electrical service meets requirements and that the electrical outlet is installed by a licensed electrician. All Ranges •... -
Page 20: Installation Instructions
Installation Instructions Preparing for Installation • If the gas or electric service provided does not meet the product specifications, do not proceed with the installation. Call the dealer, the gas supplier or a licensed electrician. • Before installing the range, you must locate and secure the anti-tip bracket to the floor. Unpacking the Range Unpack the parts box and verify that all required components have been provided. - Page 21 Installation Instructions Floor-Mounting the Anti-Tip Bracket, cont. • Determine the required position of the anti-tip bracket, based on the diagram below. Mark the 4 mount- ing-hole locations on the floor with a pencil. • Determine the screw size. The minimum full thread depth (portion of screw threaded into wood/slab) is 3/8”...
- Page 22 Installation Instructions Installing the Anti-Tip Bracket and Foot, cont. Wall-Mounting the Anti-Tip Bracket For this option to be suitable, the range front panel must be 26 1/2" (67.3 cm) or less from the wall, and the bracket screws must be able to engage the base plate inside the wall. Notches on the sides of the bracket indicate the minimum height of the base plate and that any floor covering thickness will not impede secure threading.
- Page 23 Installation Instructions Preparing for Installation, cont. Wall-Mounting the Anti-Tip Bracket, cont. ANTI-TIP BRACKET PLACEMENT Dimension DOP36M86DL* DOP48M86DL* 14 1/8” (35.9 cm) 3 1/2” (8.9 cm) Removing the Oven Door • Do not try to disengage the hinge catches with the door(s) removed. The hinge springs could release caus- ing personal injury.
- Page 24 Installation Instructions Removing the Oven Door, cont. 3. Lift the oven door to about a 15° angle from verti- cal. 4. With both hands, grasp the door just below the handle, and pull up slightly. 5. On the bottom-right edge of the door, pull out the wire connector, and disconnect the wires.
- Page 25 Installation Instructions Installing the Flexible Conduit Remove the conduit connection plate from the rear of the drawer body, and flip it as shown. (Use the 1⅛" hole.) Prepare the conduit cord (Figure 1). 2. Install the conduit cord (Figure 2). Conduit installations: Insert the strain relief (not included) in the 1⅛"conduit hole, thread the conduit cord through the body of the strain relief, and fasten the ring, then reinstall the bracket.
- Page 26 Installation Instructions Installing the Flexible Conduit, cont. Installing a 4-wire conduit • Aluminum building wire may be used but it must be rated for the correct amperage and voltage. Connect wires according to this Step 4 depending on the number of wires. •...
- Page 27 Installation Instructions About Oven Functions, cont. Gas Connection, cont. Before sliding the range into the cabinet Turn off the gas-supply valve, and turn off power to the range. 2. Connect a flexible gas line to the shut-off valve installed on the stub out. The line must be long enough that the range can be pulled out for service without disconnect- ing the line.
- Page 28 Installation Instructions Reinstalling the Oven Door(s) To avoid personal injury or damage to the door from it falling off its hinges: • Make sure that the notch on the bottom of each hinge rests on the lower lip of each hinge receptacle before trying to open the oven door.
-
Page 29: Installing The Burner-Control Knobs
Installation Instructions Adjusting the Door (DOP48M86D* only), cont. Lifting the door-hinge latches too much makes fasten- ing the two screws difficult. Installing the Burner-Control Knobs When installing the knobs, align the “D” shaped opening on the back of the knob with the end of the valve shaft. -
Page 30: Rangetop Assembly
Installation Instructions Rangetop Assembly Assembling the Burners • Do not operate the rangetop burners unless properly assembled. • Do not push in a rangetop knob while removing the burner; a slight electrical shock might result. • Do not remove the top or touch a burner electrode while another burner is on. Place the burner heads on the burner bases as shown at left. - Page 31 Installation Instructions Dual Burner Head/Cap, cont. 3. Match the burner caps to the burners by size, then install the caps on the heads. Round Burner Head/Cap 1. Put the burner heads on the burner bases as shown at left. The bottom of the head fits within the burner base.
- Page 32 Installation Instructions 1. Put the burner heads in place as shown. The locat- ing tab on the burner head goes in the keyed hole as shown. 2. Put the burner rings on the burner heads as shown. Match the tabs on the bottom of the ring to the slots on the head.
- Page 33 Installation Instructions Installing the Grates For best results and longest life, install the grates as instructed. When installed properly, the openings in the grates are centered over the burners. The grates occupy specific positions on the rangetop. For maximum sta- bility and safe operation, these grates should only be used in their proper positions.
-
Page 34: Verifying Proper Operation
4. If the range still does not work, contact Dacor Customer Assurance: (833) 35-ELITE (35483). Be ready with the model/serial numbers. (See the data label, left-side door trim.) Do not try to repair the range yourself. Dacor is not responsible for the cost of correcting problems caused by a faulty installation. -
Page 35: Installation Checklist
Installation Instructions Installation Checklist The installer should complete this checklist to ensure thorough, proper installation. Proper installation is the responsibility of the homeowner. • Was the plastic sheeting peeled off the range exterior? • Was all packaging removed from the oven chamber? •... -
Page 36: Warranty Information
Dacor product, please return all forms in one envelope, or activate the warranty online for each product. Please be assured that Dacor will never sell your name or any information on this form for mailing-list purposes, as we do not... - Page 37 NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO 1600 CITY OF INDUSTRY CA POSTAGE WILL BE PAID BY ADDRESSEE DACOR ATTN WARRANTY PROCESSING DEPT PO BOX 90070 CITY OF INDUSTRY CA 91715-9907...
