LED Power Supply Status
Steady: normal. Blink: AC brownout. Flash: power supply failure (Fig.1b, pg. 3)
Power
56V or 24V Indicates output voltage selection (Fig.1d, pg. 3)
Status Steady: normal. Blink: low battery. Flash: power supply trouble (Fig.1e, pg. 3)
Terminal Legend Function/Description
Connect 115/230VAC 50/60Hz to these terminals: L to hot, N to neutral,
L, G, N
G to ground (non power-limited) (Fig. 1a, pg. 4).
– BAT + Stand-by battery connections (Fig. 1c, pg. 4).
– DC + 24VDC @ 8A or 56VDC @ 4A output (Fig. 1c, pg. 4).
Indicates low battery condition, e.g. connect audible device or alarm panel.
C BAT NC
Relay is normally energized. Contact rating 1A @ 28VDC (Fig. 1f, pg. 4).
Indicates loss of AC, e.g. connect audible device or alarm panel. Relay is normally
C AC NC
energized when AC power is present. Contact rating 1A @ 28VDC. (Fig. 1f, pg. 4)
24–56V Output voltage selector (Fig. 1g, pg. 4)

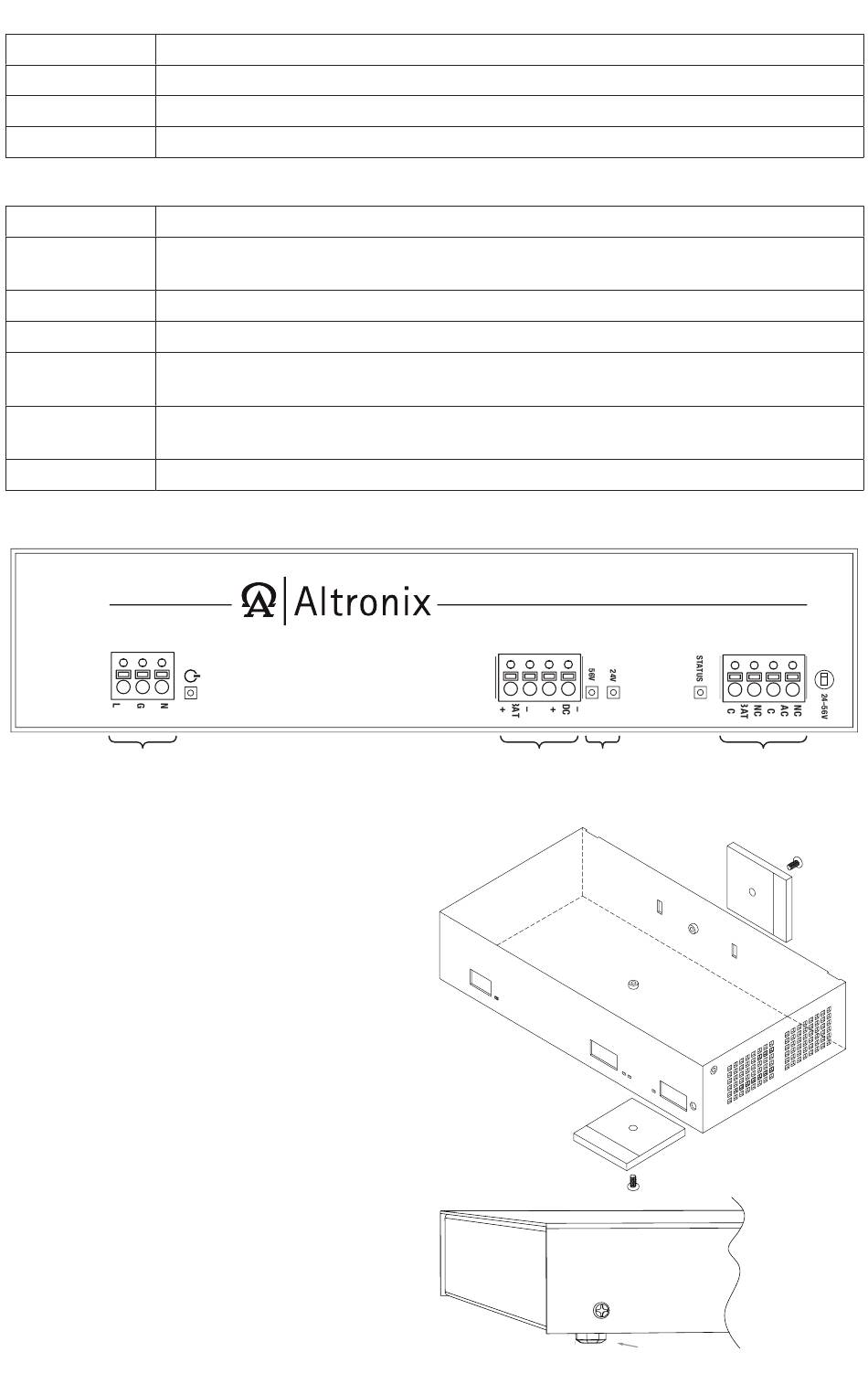

Fig. 1 - DN200
1a
DIN Rail Installation:
1. Attach included DIN Rail bracket to
the back of the enclosure (Fig. 2).
2. Attach DN200 to DIN Rail using the bracket
Shelf Installation:
1- Position and affix rubber pads (included) at
each corner on the bottom of the unit (Fig. 3).
2- Place unit in desired location.
DN200 Installation Guide

LED Diagnostics:

Terminal Identification:

1b

Mounting Options:

1d
1c
Fig. 2
Fig. 3
Left Side
C
1g
1e
1f
Rubber Pad
