DN200
DIN Rail Mountable Power Supply/Charger
Installation Guide
More than just power.
TM
Rev. 072623
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Advertisement
Table of Contents
Related Manuals for Altronix DN200
Summary of Contents for Altronix DN200

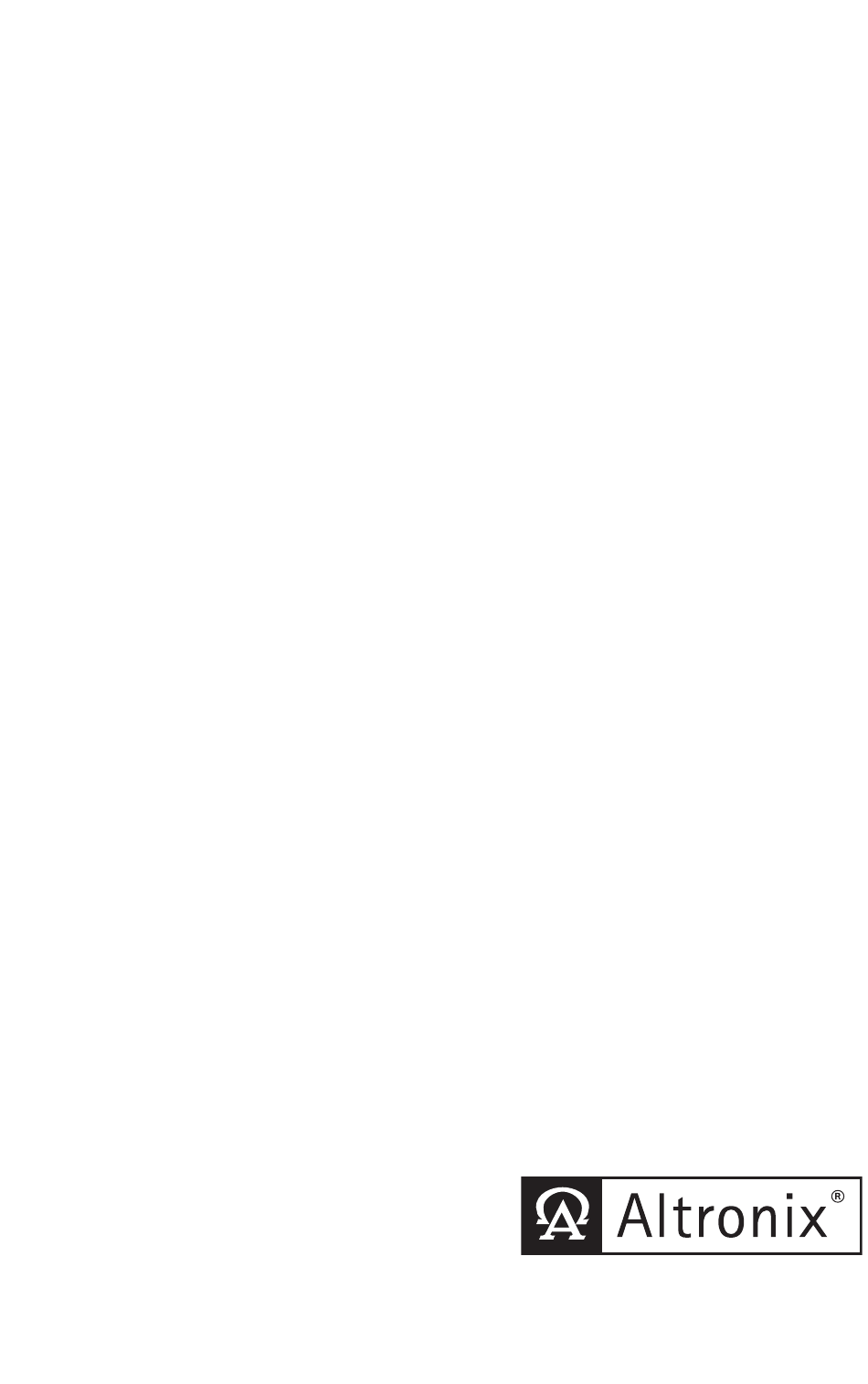

- Page 1 DN200 DIN Rail Mountable Power Supply/Charger Installation Guide More than just power. Rev. 072623 Installing Company: _______________ Service Rep. Name: __________________________________ Address: _____________________________________________ Phone #: __________________...

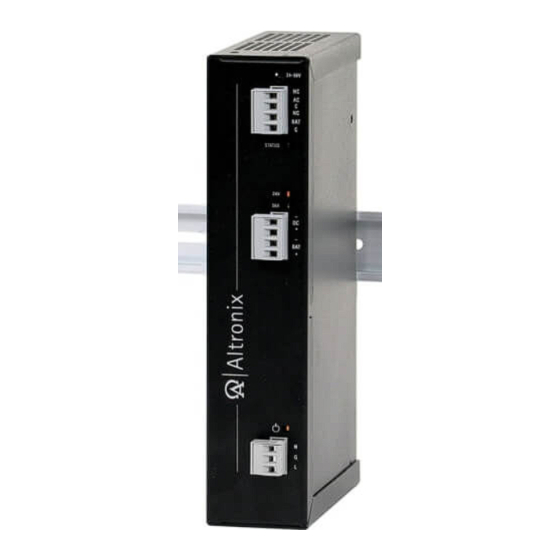

- Page 2 Overview: Altronix DN200 power supply/charger converts a 115VAC or 230VAC, 50/60Hz input into a 24VDC or 56VDC regulated output. It can be mounted on a standard 35mm DIN Rail or on a shelf. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.
- Page 3 DIN Rail Installation: Fig. 2 1. Attach included DIN Rail bracket to the back of the enclosure (Fig. 2). 2. Attach DN200 to DIN Rail using the bracket Shelf Installation: Position and affix rubber pads (included) at Fig. 3 each corner on the bottom of the unit (Fig. 3).
- Page 4 8.85” (225.8mm) 1.95” (49.5mm) 4.6” (116.8mm) 4.1” (104.1mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIDN200...
