Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-833-9200
tek.com/keithley
Description
The Keithley Instruments Model 237-BAN-3A connects instruments and switching products that have three-lug
triaxial connectors to fixtures and instruments that have safety banana jack terminals.
The item shipped may vary from the item in the picture.
Electrical characteristics
Safety standard: EN 61010-1
Installation category: CAT O pollution degree 2
Working voltage: 600 V
outer shell
Current: 1 A maximum
Operating environment: 0 °C to 50 °C, up to 70 percent relative humidity at ≤ 35 °C
Contact resistance: < 0.5 Ω
Insulation resistance: 10
relative humidity)
PA-308 Rev. D July 2023

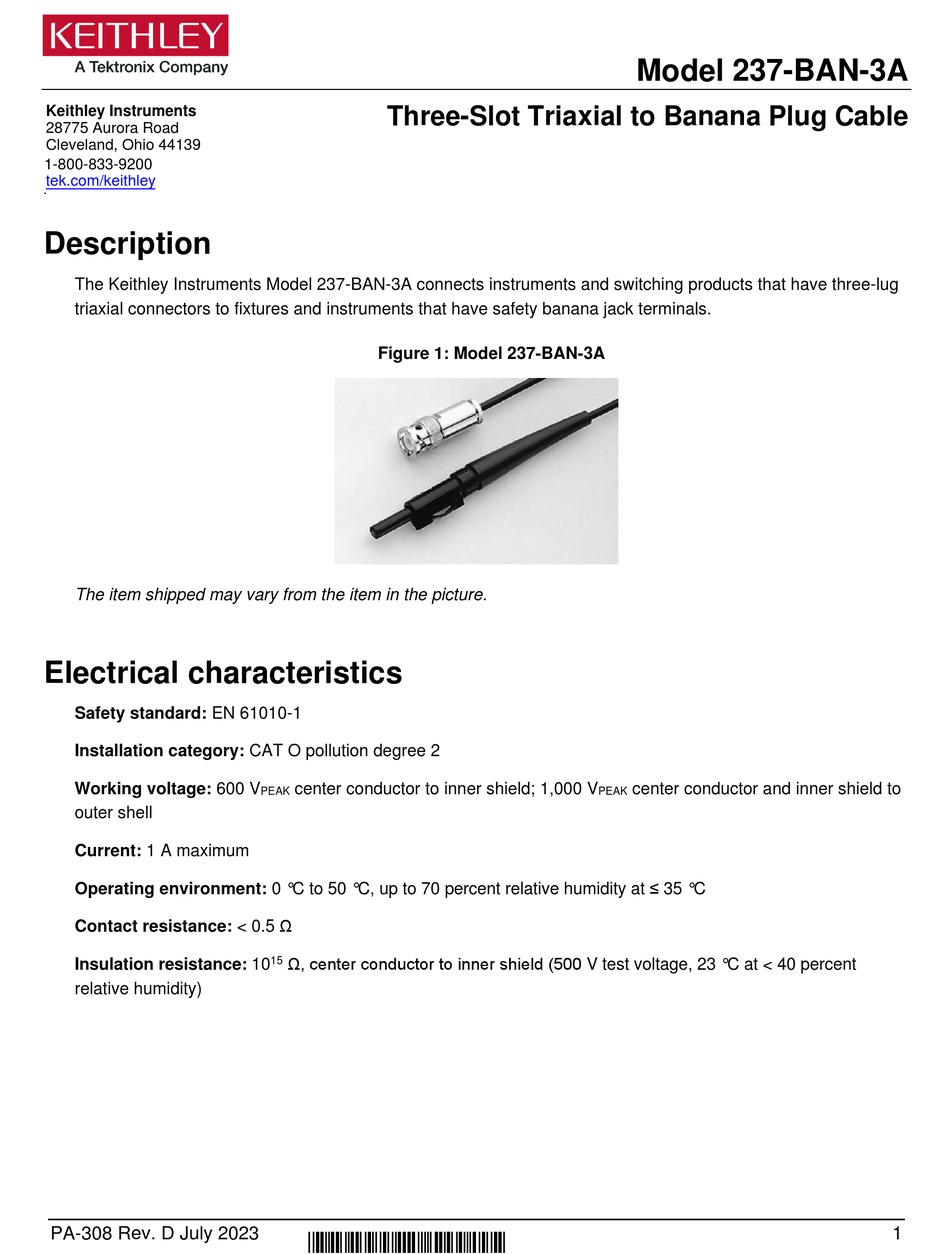

Three-Slot Triaxial to Banana Plug Cable
Figure 1: Model 237-BAN-3A
center conductor to inner shield; 1,000 V
PEAK
Ω, center conductor to inner shield (500 V test voltage, 23 °C at < 40 percent
15
*PPA-308D*
Model 237-BAN-3A
center conductor and inner shield to
PEAK
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tektronix KEITHLEY 237-BAN-3A
Summary of Contents for Tektronix KEITHLEY 237-BAN-3A
- Page 1 Model 237-BAN-3A Keithley Instruments Three-Slot Triaxial to Banana Plug Cable 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Description The Keithley Instruments Model 237-BAN-3A connects instruments and switching products that have three-lug triaxial connectors to fixtures and instruments that have safety banana jack terminals. Figure 1: Model 237-BAN-3A The item shipped may vary from the item in the picture.
- Page 2 Model 237-BAN-3A Three-Slot Triaxial to Banana Plug Cable Mechanical characteristics The following figure shows a schematic of the cable. Figure 2: Model 237-BAN-3A schematic The banana plug connects to the center conductor (HI) of the triaxial cable. The banana plug may be at 1000 V, but the working voltage may be higher than that if the voltage at protective earth (safety ground) is greater than 0 V.
- Page 3 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 4 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories. Maximum signal levels are defined in the specifications and operating information and shown on the instrument panels, test fixture panels, and switching cards.
