Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-833-9200
tek.com/keithley
Description
The Keithley Instruments 2601B-PULSE-CA3 BNC-to-BNC Cable Kit includes two 3.0 m 15 Ω low-inductance
cables. The 2601B-PULSE-CA3 is intended to make the FORCE HI and LO connections for a 4-wire
measurement. On the end intended for connection to the device under test (DUT), the shields are jumpered to
reduce loop inductance.
The SENSE HI and SENSE LO connections are made using the 2601B-PULSE-CA2 BNC-to-BNC Coaxial
Cables (sold separately).
This cable kit is intended for use with the Model 2601B-PULSE System SourceMeter
2601B-P-INT Interlock and Cable Connector Box installed.
077169000 April 2020

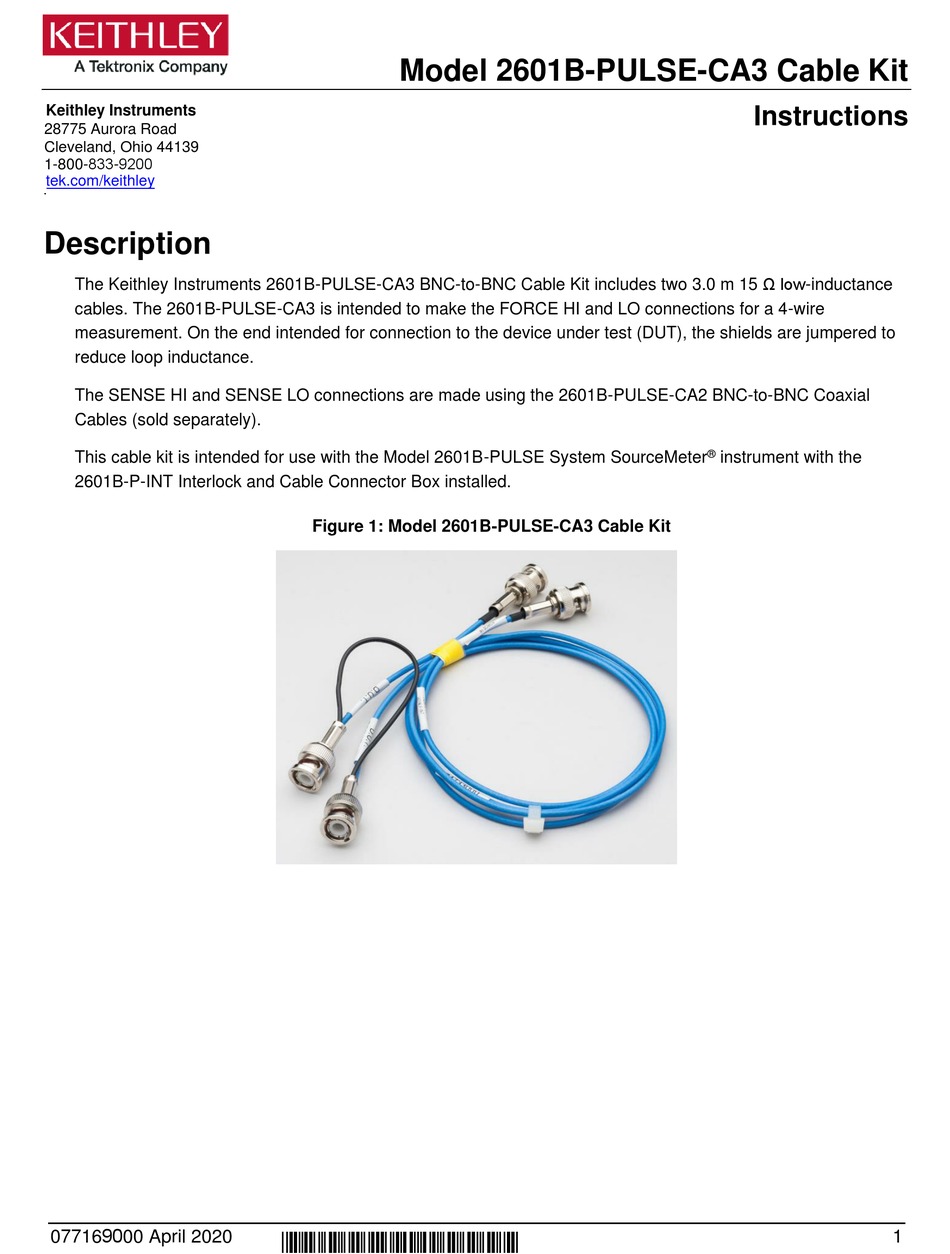

Model 2601B-PULSE-CA3 Cable Kit

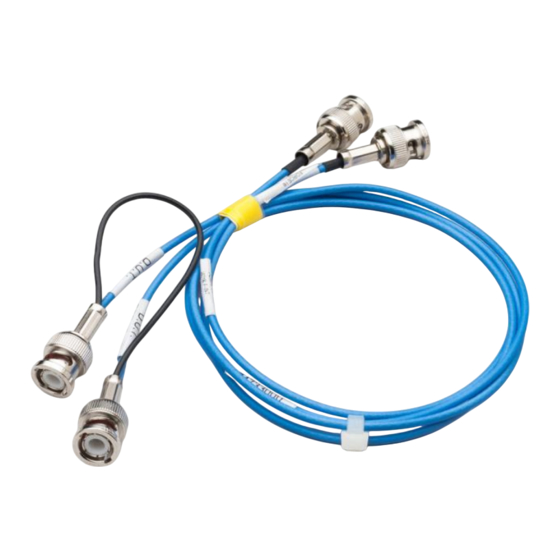

Figure 1: Model 2601B-PULSE-CA3 Cable Kit
*P077169000*
Instructions
®
instrument with the
1
Advertisement
Table of Contents
Related Manuals for Tektronix KEITHLEY 2601B-PULSE-CA3
Summary of Contents for Tektronix KEITHLEY 2601B-PULSE-CA3
- Page 1 Model 2601B-PULSE-CA3 Cable Kit Keithley Instruments Instructions 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Description The Keithley Instruments 2601B-PULSE-CA3 BNC-to-BNC Cable Kit includes two 3.0 m 15 Ω low-inductance cables. The 2601B-PULSE-CA3 is intended to make the FORCE HI and LO connections for a 4-wire measurement.
- Page 2 Model 2601B-PULSE-CA3 Cable Kit Instructions Characteristics Rated voltage and current: 40 V maximum, 11 A Operating environment: −55 °C to +200 °C Characteristic impedance: 15 Ω Loop DC resistance*: 100 mΩ Loop inductance at 100 kHz*: 700 nH Individual cable diameter: 2.5 mm (0.10 in.) Jumper length: 152 mm (6.0 in.) * Measured using a 2601B-PULSE System SourceMeter ®...
- Page 3 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 4 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. The CAUTION heading with the symbol in the user documentation explains hazards that could result in moderate or minor injury or damage the instrument. Always read the associated information very carefully before performing the indicated procedure.
