Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
tek.com/keithley
Description
The Model 2460-KIT Screw Terminal Connector Kit contains a cable housing, an inverted plug connector, and
a cable tie. The cable housing is made up of two half-shells with a cable outlet. The inverted plug secures
cables to pins for quick connection to the Model 2460 or 2461 rear panel.
071335401 / October 2019

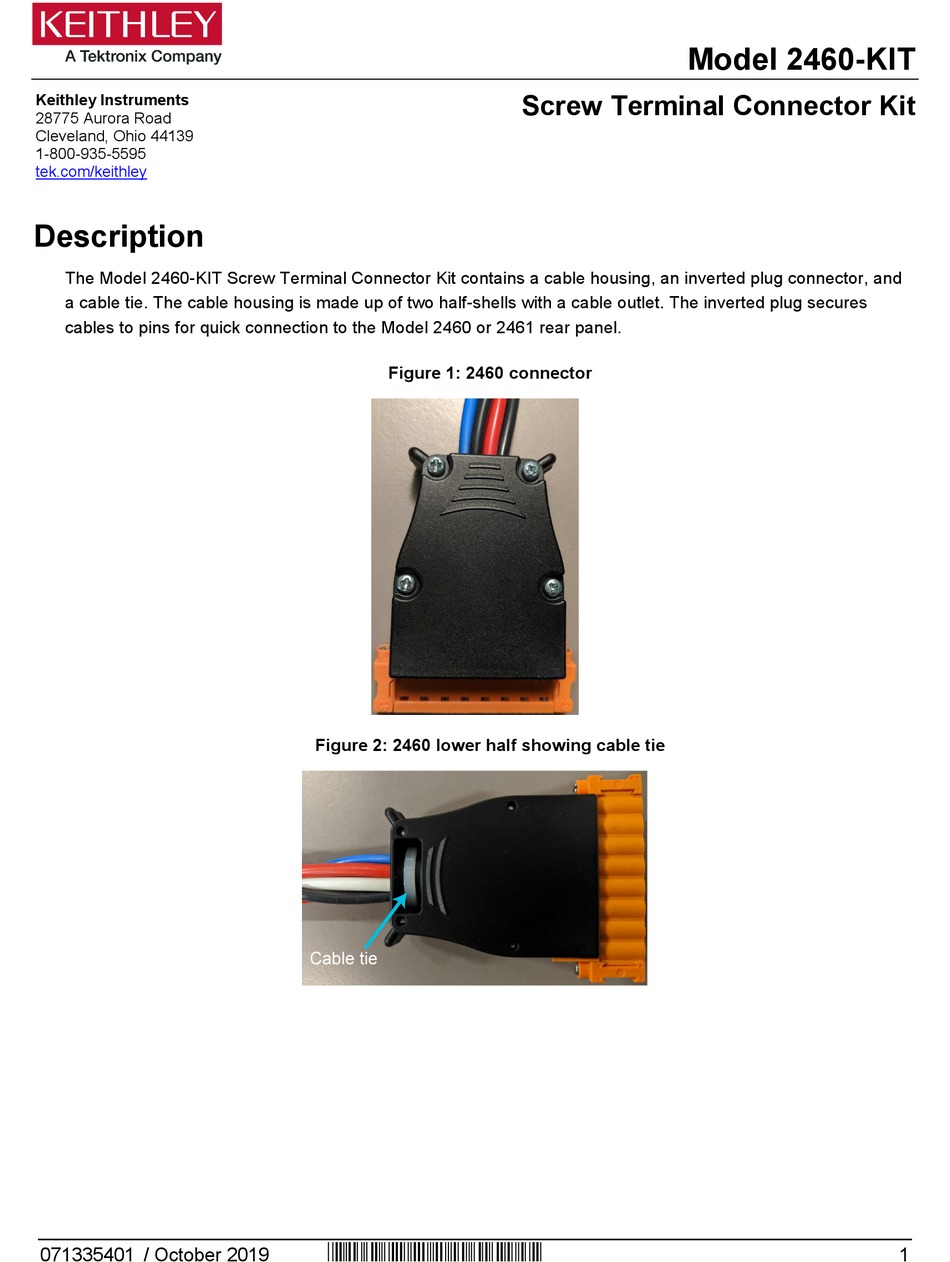

Figure 1: 2460 connector
Figure 2: 2460 lower half showing cable tie
*P071335401*
Model 2460-KIT
Screw Terminal Connector Kit
1
Advertisement
Table of Contents
Related Manuals for Tektronix Keithley 2460-KIT
Summary of Contents for Tektronix Keithley 2460-KIT
- Page 1 Model 2460-KIT Screw Terminal Connector Kit Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 tek.com/keithley Description The Model 2460-KIT Screw Terminal Connector Kit contains a cable housing, an inverted plug connector, and a cable tie. The cable housing is made up of two half-shells with a cable outlet. The inverted plug secures cables to pins for quick connection to the Model 2460 or 2461 rear panel.
- Page 2 Model 2460-KIT Screw Terminal Connector Kit Figure 3: Model 2460-KIT All measurement connections should be considered to be hazardous. The maximum floating (common mode) voltage for a source-measure unit (SMU) is ±250 V. Exceeding this level may cause damage to the instrument and create a shock hazard. Using an external source to float a SMU could create a shock hazard in the test circuit.
- Page 3 Model 2460-KIT Screw Terminal Connector Kit Each screw in the screw terminal connector can accommodate from 26 AWG (0.2 mm ) to 12 AWG (2.5 mm conductors. Parts list Model 2460-KIT parts list Quantity Part 8-pin connector Cable housing (2 half-shells) Cable tie Screws Characteristics...
- Page 4 Model 2460-KIT Screw Terminal Connector Kit To assemble the kit: 1. Determine your wiring requirements and pinouts. 2. Split the cable housing into upper and lower halves. 3. Thread wire and cabling into housing through the cable outlet. 4. Connect wires to the 8-pin inverted plug. 5.
- Page 5 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 6 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories. Maximum signal levels are defined in the specifications and operating information and shown on the instrument panels, test fixture panels, and switching cards.
