Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
tek.com/keithley
Description
The Keithley Instruments 2601B-PULSE-CA1 50 Ω BNC-to-BNC Cable Kit is a set of four
1.2 m BNC-to-BNC cables.
Two of these cables are jumpered to reduce loop inductance and are intended for making the FORCE HI and
LO connections for a 4-wire measurement. The jumpered end is intended for connection to the device under
test (DUT).
The other two cables are intended for making the SENSE HI and LO connections.
This cable kit is intended for use with the Model 2601B-PULSE System SourceMeter
2601B-P-INT Interlock and Cable Connector Box installed.
077168800 April 2020
Model 2601B-PULSE-CA1 Cable Kit

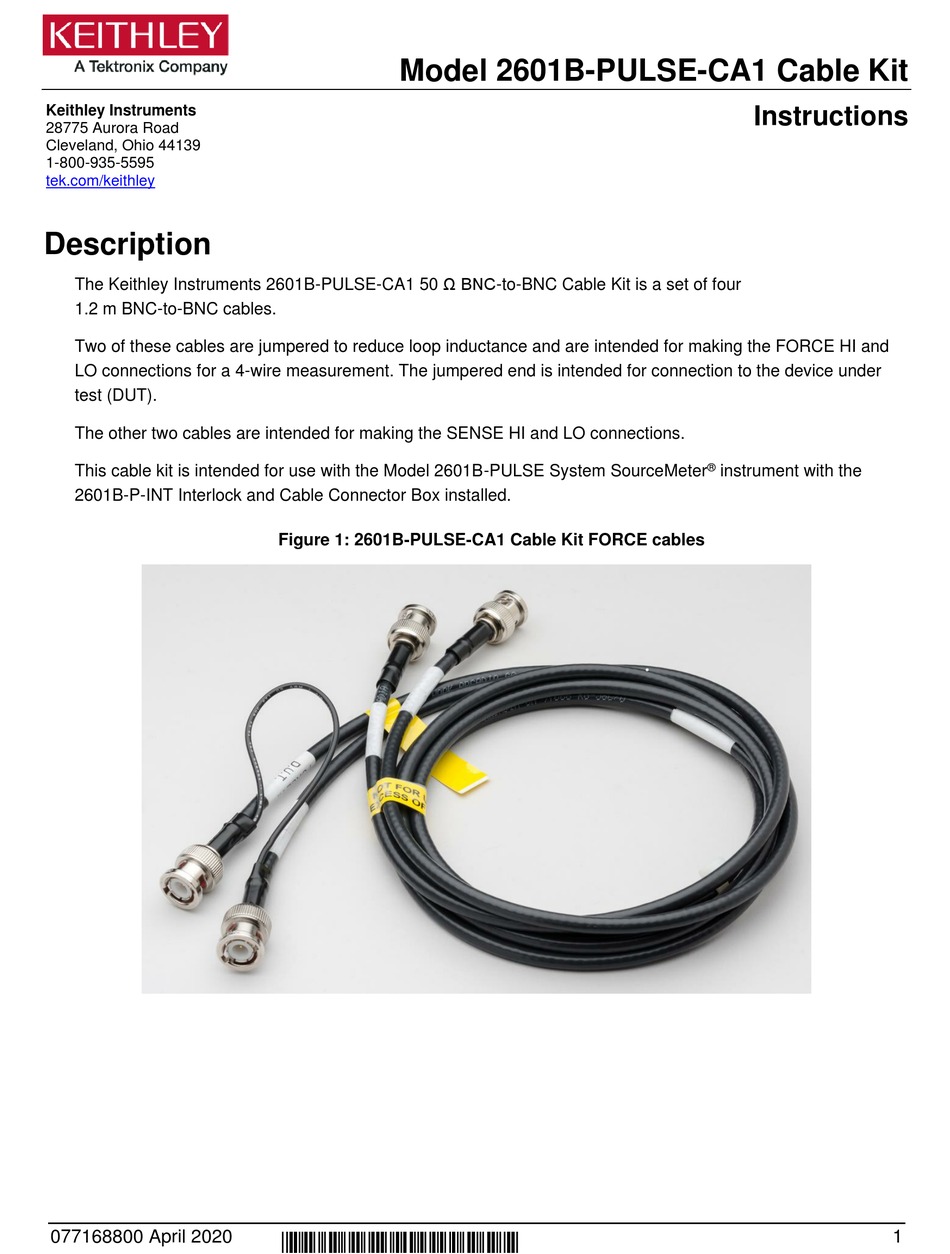

Figure 1: 2601B-PULSE-CA1 Cable Kit FORCE cables
*P077168800*
Instructions
®
instrument with the
1
Advertisement
Table of Contents
Related Manuals for Tektronix KEITHLEY 2601B-PULSE-CA1
Summary of Contents for Tektronix KEITHLEY 2601B-PULSE-CA1
- Page 1 Model 2601B-PULSE-CA1 Cable Kit Keithley Instruments Instructions 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 tek.com/keithley Description The Keithley Instruments 2601B-PULSE-CA1 50 Ω BNC-to-BNC Cable Kit is a set of four 1.2 m BNC-to-BNC cables. Two of these cables are jumpered to reduce loop inductance and are intended for making the FORCE HI and LO connections for a 4-wire measurement.
- Page 2 Model 2601B-PULSE-CA1 Cable Kit Instructions Characteristics SENSE cables ▪ Rated voltage and current: 40 V maximum, 11 A Operating environment: −40 °C to +85 °C ▪ ▪ Characteristic impedance: 50 Ω ▪ DC resistance: 70 mΩ ▪ Cable diameter: 2.85 mm (0.112 in.) FORCE cables ▪...
- Page 3 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 4 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. The CAUTION heading with the symbol in the user documentation explains hazards that could result in moderate or minor injury or damage the instrument. Always read the associated information very carefully before performing the indicated procedure.
