Tektronix Keithley 2657A-PCT-KIT Manual

Accessory kit for 2657a-pct

Keithley Instruments

28775 Aurora Road

Cleveland, Ohio 44139

1-800-833-9200

tek.com/keithley

Supplied accessories

The following table lists the parts that are supplied with the 2657A-PCT-KIT.

Part number

Description

174694600

RJ45 crossover cable

CA-558-2B

2 m (6.6 ft) safety interlock cable

CA-568-120A

3 m (10 ft) green and yellow safety ground cable

HV-CA-554-2

2 m (6.6 ft) plug-to-plug high-voltage triaxial cable

MC-1059A

High-voltage triaxial cable label

4299-6

Full-Rack Single-Unit Rack Mount Kit (not shown)

0713411xx

Safety precautions (not shown)

PA-937x

Environmental disclosure report (accessory) (not shown)

071326902 August 2022

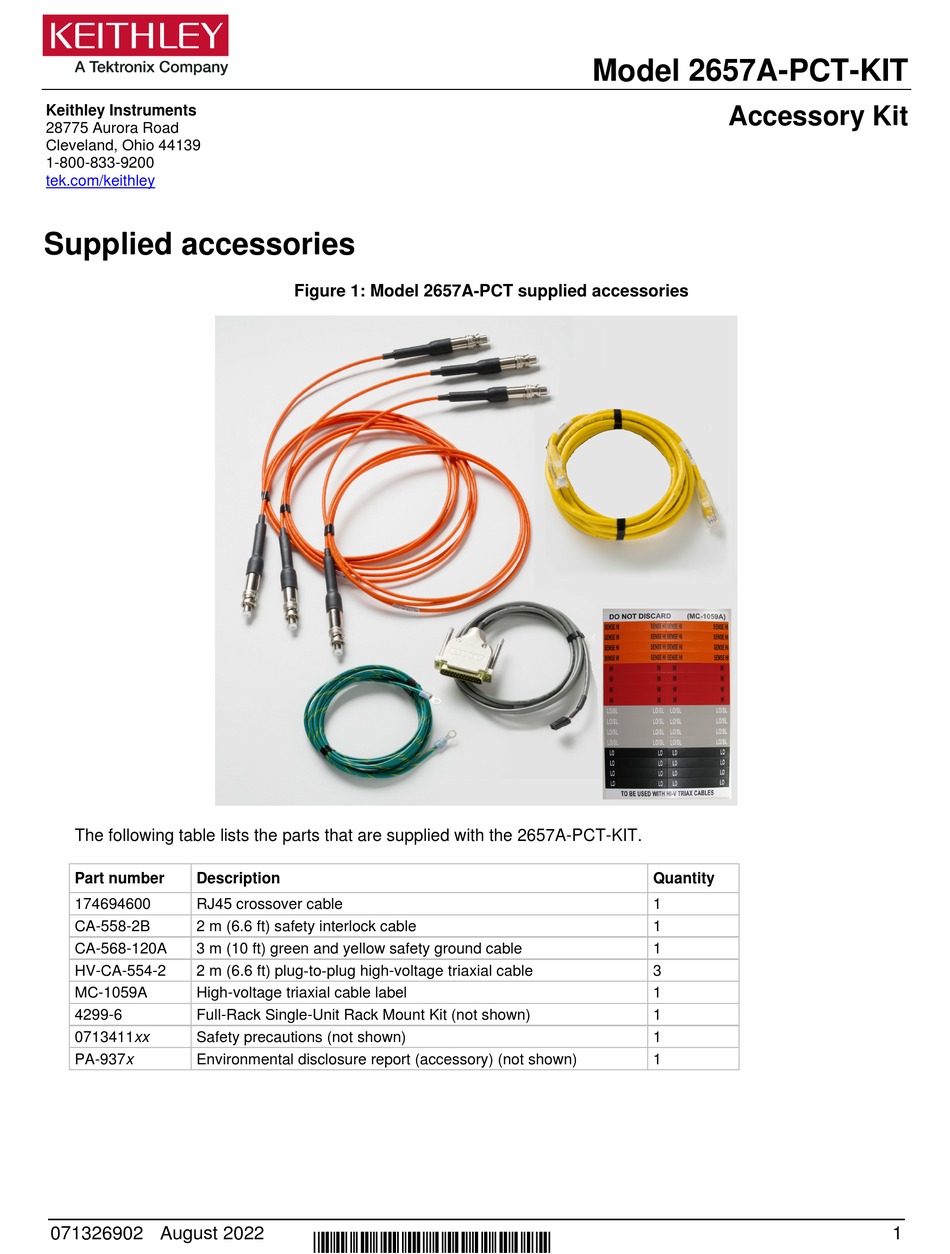

Figure 1: Model 2657A-PCT supplied accessories

*P071326902*

Model 2657A-PCT-KIT

Accessory Kit

Quantity

Table of Contents

Do you have a question about the Keithley 2657A-PCT-KIT and is the answer not in the manual?

Page 1 Model 2657A-PCT-KIT Keithley Instruments Accessory Kit 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Supplied accessories Figure 1: Model 2657A-PCT supplied accessories The following table lists the parts that are supplied with the 2657A-PCT-KIT. Part number Description Quantity 174694600 RJ45 crossover cable CA-558-2B 2 m (6.6 ft) safety interlock cable CA-568-120A...
Page 2 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
Page 3 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories. Maximum signal levels are defined in the specifications and operating information and shown on the instrument panels, test fixture panels, and switching cards.
