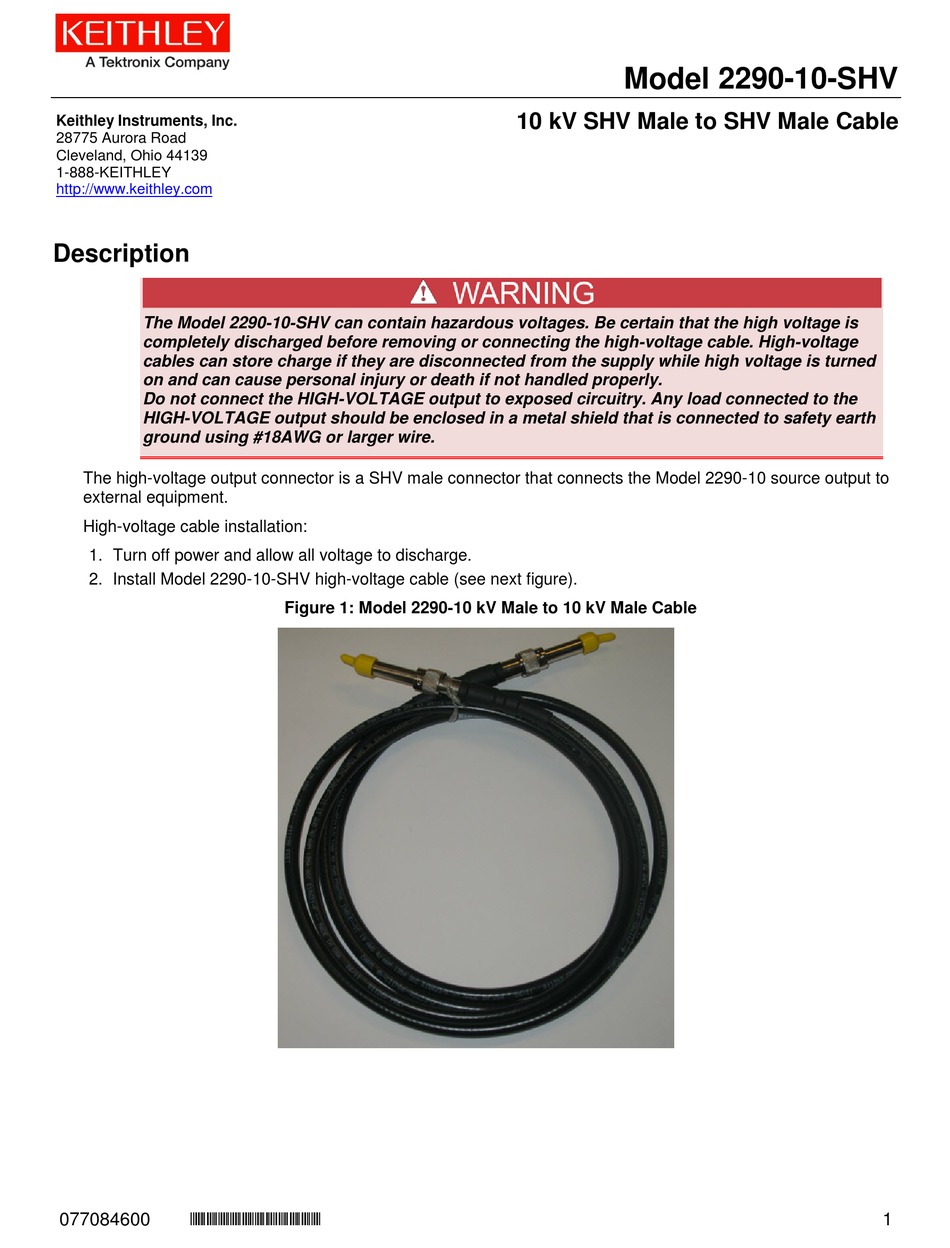

Tektronix Keithley 2290-10-SHV Manual

Keithley Instruments, Inc.
28775 Aurora Road
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com

Description

The Model 2290-10-SHV can contain hazardous voltages. Be certain that the high voltage is
completely discharged before removing or connecting the high-voltage cable. High-voltage
cables can store charge if they are disconnected from the supply while high voltage is turned
on and can cause personal injury or death if not handled properly.
Do not connect the HIGH-VOLTAGE output to exposed circuitry. Any load connected to the
HIGH-VOLTAGE output should be enclosed in a metal shield that is connected to safety earth
ground using #18AWG or larger wire.
The high-voltage output connector is a SHV male connector that connects the Model 2290-10 source output to
external equipment.

High-voltage cable installation:

1. Turn off power and allow all voltage to discharge.
2. Install Model 2290-10-SHV high-voltage cable (see next figure).
077084600 *077084600*
Figure 1: Model 2290-10 kV Male to 10 kV Male Cable
Model 2290-10-SHV
10 kV SHV Male to SHV Male Cable
