Tektronix Keithley 236-ILC-3 Quick Start Manual

3-pin interlock cable

Keithley Instruments

28775 Aurora Road

Cleveland, Ohio 44139

1-800-833-9200

tek.com/keithley

Description

The Model 236-ILC-3 (part number 236-326A) is a 3-pin female to 3-pin female interlock cable assembly for the

Model 4200A-SCS. The cable is 3 m (9.8 ft).

The item shipped may vary from the item in the picture.

The 236-ILC-3 cable connects the safety interlock circuit of the 4200A-SCS to the safety interlock switch of the

test fixture containing the device under test. To use the 236-ILC-3, plug one end of the cable into the INTERLOCK

connector on the test fixture, and connect the other end of the cable into the INTERLOCK connector on the rear

panel of the instrument.

Detailed information on using the interlock cable can be found in the 4200A-SCS Learning Center.

Connecting the interlock cable to protective earth (safety ground) may result in damage to the

interlock circuit. A self-resetting fuse is provided in the interlock power supply to protect the

circuit from damage if the cable is shorted to protective earth (safety ground). If the current

limit from the interlock circuit is exceeded, the fuse will open and may not reset for

several minutes.

PA-266 Rev. D July 2023

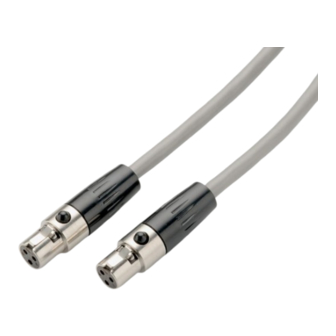

Figure 1: Model 236-ILC-3

*PPA-266D*

Model 236-ILC-3 (236-326A)

3-Pin Interlock Cable

Table of Contents

Do you have a question about the Keithley 236-ILC-3 and is the answer not in the manual?

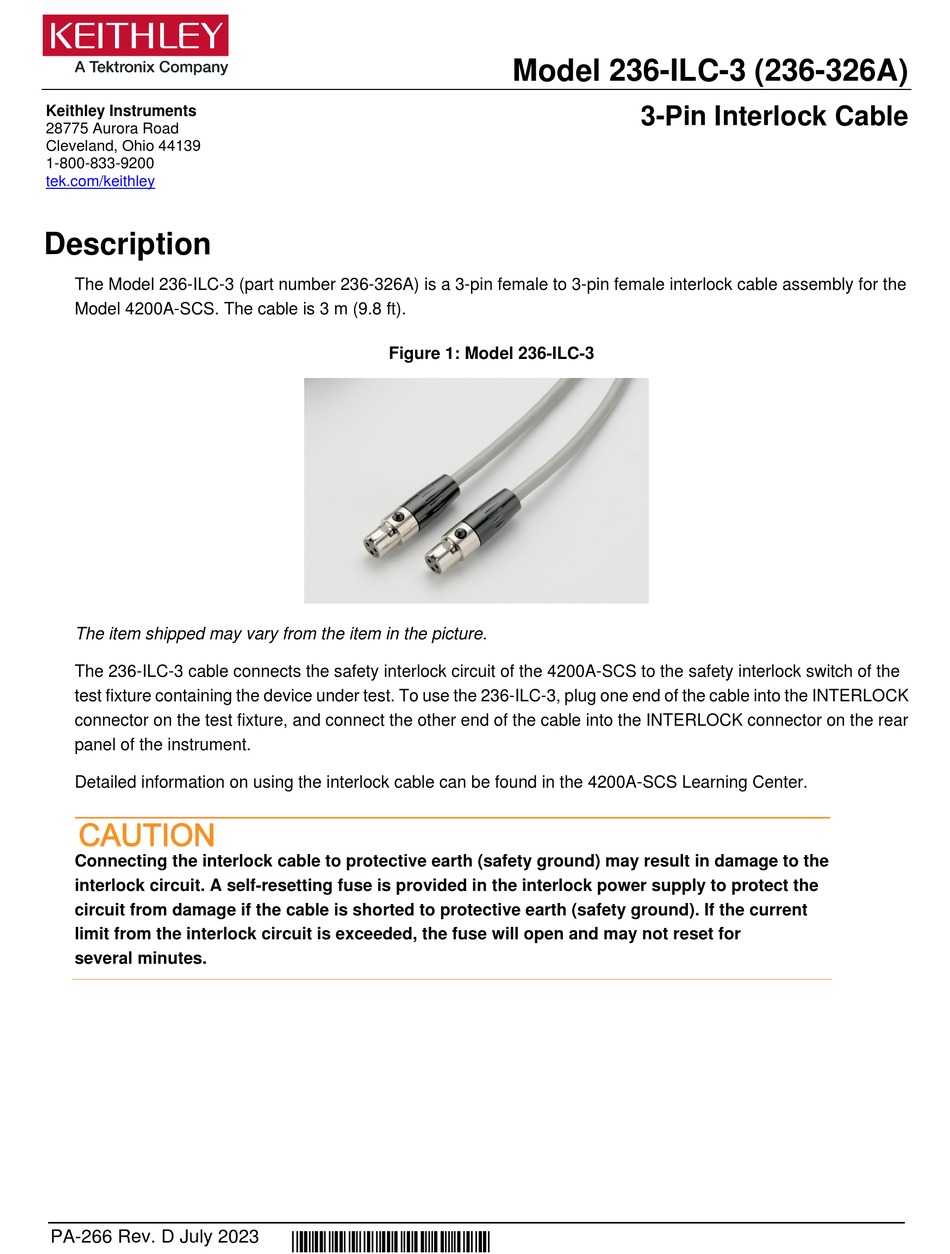

Page 1 Model 236-ILC-3 (236-326A) Keithley Instruments 3-Pin Interlock Cable 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Description The Model 236-ILC-3 (part number 236-326A) is a 3-pin female to 3-pin female interlock cable assembly for the Model 4200A-SCS. The cable is 3 m (9.8 ft). Figure 1: Model 236-ILC-3 The item shipped may vary from the item in the picture.
