Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 - TestEquipmentDepot.com
Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
tek.com/keithley
Description

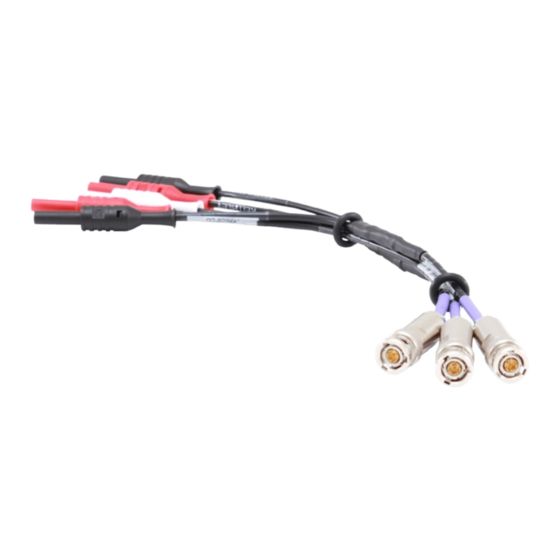

The Model TRX-1100V-BAN High Voltage Triax to Banana Adapter cable assembly connects three
male triaxial connectors to five female safety banana jacks (4 mm safety jacks).
Characteristics
Length: 12 in. (30.5 cm) (from end of triax to end of banana)
Voltage rating: 1500 VDC (working voltage up to 1500 VDC)
Safety standard: Conforms to the European Union Low Voltage Directive
Installation category: CAT O
Maximum current: 1 A
Operating environment: 0 °C to 50 °C, up to 70 percent relative humidity at ≤ 35 °C
Altitude: Maximum 2000 meters (6562 feet) above sea level
Pollution degree: 1 or 2
071364900 / May 2019

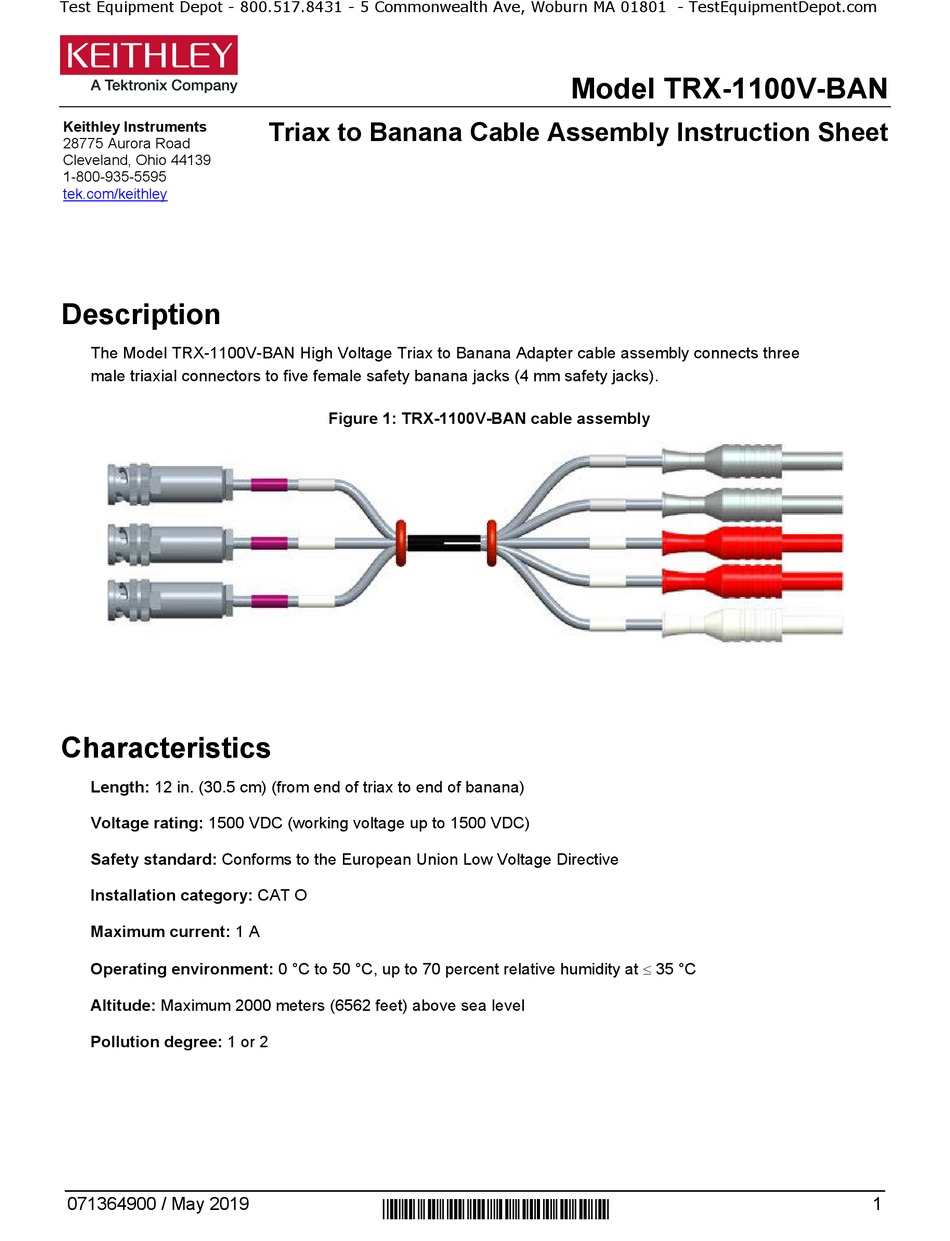

Triax to Banana Cable Assembly Instruction Sheet
Figure 1: TRX-1100V-BAN cable assembly
*P071364900*
Model TRX-1100V-BAN
1
Advertisement
Table of Contents
Related Manuals for Tektronix KEITHLEY TRX-1100V-BAN
Summary of Contents for Tektronix KEITHLEY TRX-1100V-BAN
- Page 1 Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 - TestEquipmentDepot.com Model TRX-1100V-BAN Triax to Banana Cable Assembly Instruction Sheet Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 tek.com/keithley Description The Model TRX-1100V-BAN High Voltage Triax to Banana Adapter cable assembly connects three male triaxial connectors to five female safety banana jacks (4 mm safety jacks).
- Page 2 Model 1100V-TRX-BAN Triax to Banana Cable Assembly Instruction Sheet Hazardous voltages may be present on any connector in this cable assembly. Failure to follow all safety precautions could result in injury or death due to electric shock. To maintain the maximum insulation resistance, keep the cable connectors free of contaminants such as dirt and oil.
- Page 3 Model 1100V-TRX-BAN Triax to Banana Cable Assembly Instruction Sheet Connection instructions The front and rear terminals of the 2470 are rated for connection to circuits rated Measurement Category O only, with transients rated less than 1500 V above the maximum PEAK rated input.
- Page 4 Model 1100V-TRX-BAN Triax to Banana Cable Assembly Instruction Sheet Figure 3: TRX-1100V-BAN cable connection 071364900 / May 2019...
- Page 5 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 6 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories. Maximum signal levels are defined in the specifications and operating information and shown on the instrument panels, test fixture panels, and switching cards.
