Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-833-9200
tek.com/keithley
Description

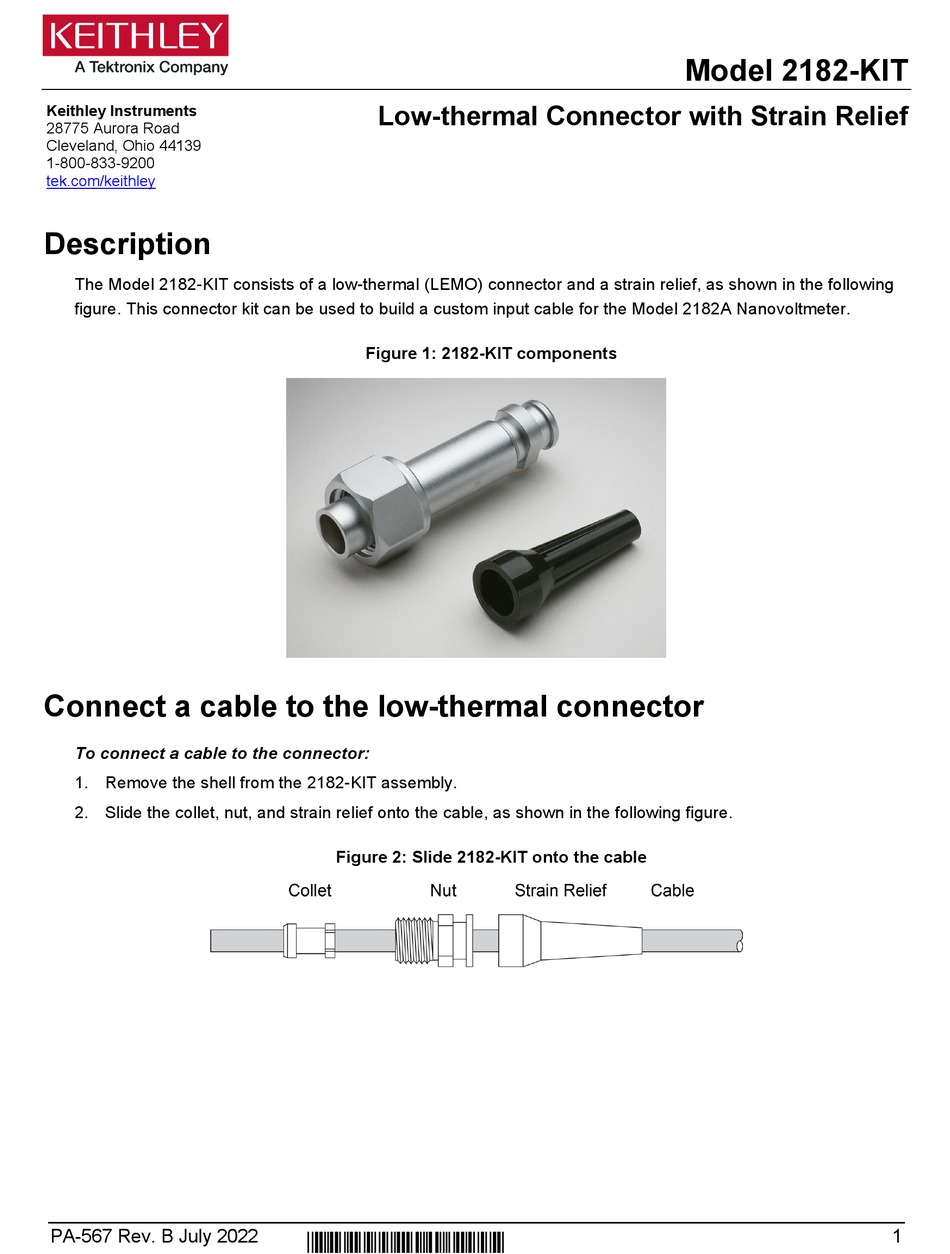

The Model 2182-KIT consists of a low-thermal (LEMO) connector and a strain relief, as shown in the following
figure. This connector kit can be used to build a custom input cable for the Model 2182A Nanovoltmeter.
Connect a cable to the low-thermal connector
To connect a cable to the connector:
1. Remove the shell from the 2182-KIT assembly.
2. Slide the collet, nut, and strain relief onto the cable, as shown in the following figure.
PA-567 Rev. B July 2022
Low-thermal Connector with Strain Relief

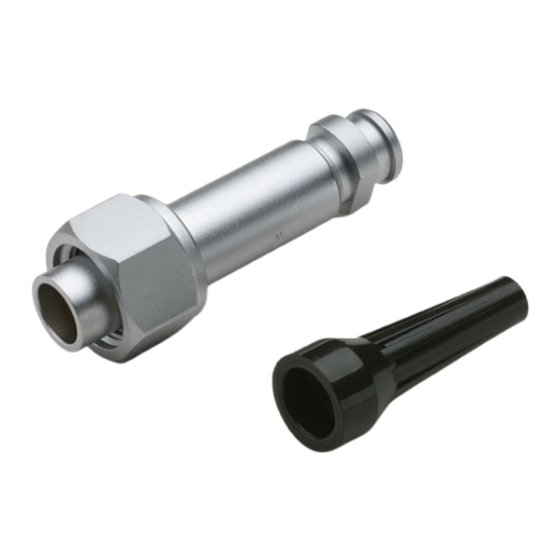

Figure 1: 2182-KIT components
Figure 2: Slide 2182-KIT onto the cable
*PPA-567B*
Model 2182-KIT
1
Advertisement
Table of Contents
Related Manuals for Tektronix KEITHLEY 2182-KIT
Summary of Contents for Tektronix KEITHLEY 2182-KIT
- Page 1 Model 2182-KIT Low-thermal Connector with Strain Relief Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Description The Model 2182-KIT consists of a low-thermal (LEMO) connector and a strain relief, as shown in the following figure. This connector kit can be used to build a custom input cable for the Model 2182A Nanovoltmeter. Figure 1: 2182-KIT components Connect a cable to the low-thermal connector To connect a cable to the connector:...
- Page 2 Model 2182-KIT Low-thermal Connector with Strain Relief 3. Prepare the individual wires of the cable, as shown in the following figure. Figure 3: Prepare individual wires of the cable 4. Install the contact and sleeve on to the cable and on to the shield, as shown in the following figure. Figure 4: Install contact and sleeve 5.
- Page 3 Model 2182-KIT Low-thermal Connector with Strain Relief Specifications Electrical specifications: Contact material: Copper Number of contacts: 4 Contact diameter: 0.035 Maximum wire sizes: 0.8 mm (22 AWG) Operating voltage: 400 ac; 800 dc Rated current: 10 A ...
- Page 4 Operators of this product must be protected from electric shock at all times. The responsible body must ensure that operators are prevented access and/or insulated from every connection point. In some cases, connections must be exposed to potential human contact. Product operators in these circumstances must be trained to protect themselves from the risk of electric shock. If the circuit is capable of operating at or above 1000 V, no conductive part of the circuit may be exposed.
