Summary of Contents for Tektronix Keithley 4200-TRX Series
- Page 1 sales@artisantg.com artisantg.com (217) 352-9330 | Click HERE Find the Keithley 4200-TRX-0.3 at our website:...

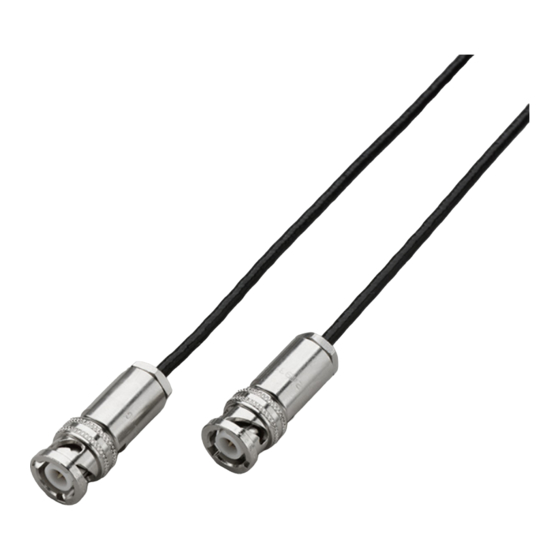

- Page 2 Model 4200-TRX-* Triaxial Cable Assembly Instruction Sheet Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 http://www.tek.com/keithley Description The 4200-TRX-* Triaxial Cable Assembly consists of a standard triaxial cable terminated with a standard 3-slot male triaxial connector on each end. You can use this cable assembly for connections such as: •...
- Page 3 Model 4200-TRX-* Triaxial Cable Assembly Electrical specifications Electrical impedance: 50 Ω Frequency range: 0 Hz to 4 GHz Working voltage: Inner shield to outer shield: 250 VDC Center conductor to outer shield: 250 VDC Center conductor to inner shield: < 100 V Ω...
- Page 4 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 5 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. Instrumentation and accessories shall not be connected to humans. Before performing any maintenance, disconnect the line cord and all test cables. To maintain protection from electric shock and fire, replacement components in mains circuits —...
