Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-833-9200
tek.com/keithley
Description
The Model SHV-CA-553 is a high-voltage triaxial cable assembly. This cable assembly is terminated on one
end with a female safe high-voltage (SHV) connector. The other end is terminated with a male high-voltage
(HV) triaxial connector.
You can order the cable in three different lengths (see table below).
Model number
Cable length
SHV-CA-553-1
3.3 ft (1.0 m)
SHV-CA-553-2
6.6 ft (2.0 m)
SHV-CA-553-3
9.8 ft (3.0 m)
The male high-voltage (HV) triaxial connector mates with rear-panel connectors of the Keithley Model 2657A
High Power System SourceMeter SMU Instrument. It also mates with the HV-CA-571-3 High-Voltage Triaxial
Panel-Mount Cable and with the HV-CS-1613 High-Voltage Triaxial Feedthrough Connector.
The inner shield of the HV triaxial is not connected to the SHV end. This may impact source and measurement
settling time and low-current measurement performance.
On the Model 2657A, be aware that when you connect to the SLO / LO triaxial terminal on the rear
panel, the LO terminal is the inner shield. Therefore, the LO terminal is not connected to the SHV
end of the Model SHV-CA-553 cable assembly. Use the LO triaxial terminal on the rear panel (not
SLO / LO) of the Model 2657A to access Output LO.
PA-1054 Rev. C May 2021
High-Voltage Triaxial to SHV Cable Information

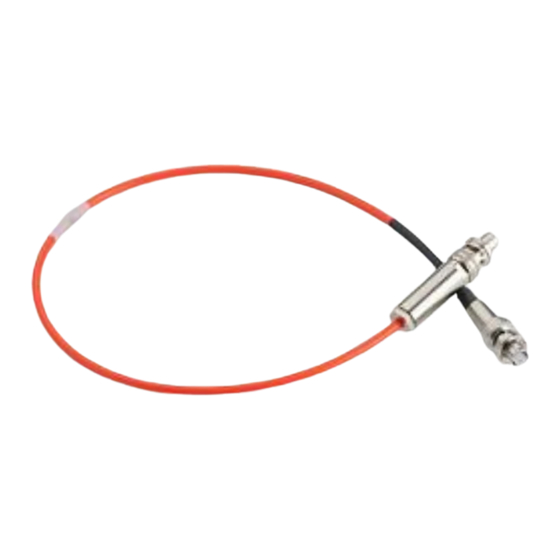

Figure 1: Model SHV-CA-553
*PPA-1054C*
Model SHV-CA-553
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Keithley SHV-CA-553 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tektronix Keithley SHV-CA-553

  • Page 1 Model SHV-CA-553 Keithley Instruments High-Voltage Triaxial to SHV Cable Information 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Description The Model SHV-CA-553 is a high-voltage triaxial cable assembly. This cable assembly is terminated on one end with a female safe high-voltage (SHV) connector. The other end is terminated with a male high-voltage (HV) triaxial connector.
  • Page 2: Electrical Characteristics

    Model SHV-CA-553 High-Voltage Triaxial to SHV Cable Information If you need to convert from a safe high-voltage (SHV) connector to another connector type, be sure to only adapt SHV connectors to connectors that are rated to the maximum possible voltage in your test setup. Using adapters in your setup that are not rated to the maximum possible voltage may result in serious injury or death due to electric shock.
  • Page 3: Safety Precautions

    Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
  • Page 4 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. The CAUTION heading with the symbol in the user documentation explains hazards that could result in moderate or minor injury or damage the instrument. Always read the associated information very carefully before performing the indicated procedure.
  • Page 5 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Keithley Instruments, Inc. SHV-CA-553-3...

This manual is also suitable for:

Keithley shv-ca-553-1Keithley shv-ca-553-2Keithley shv-ca-553-3
