Flash Memory Architecture

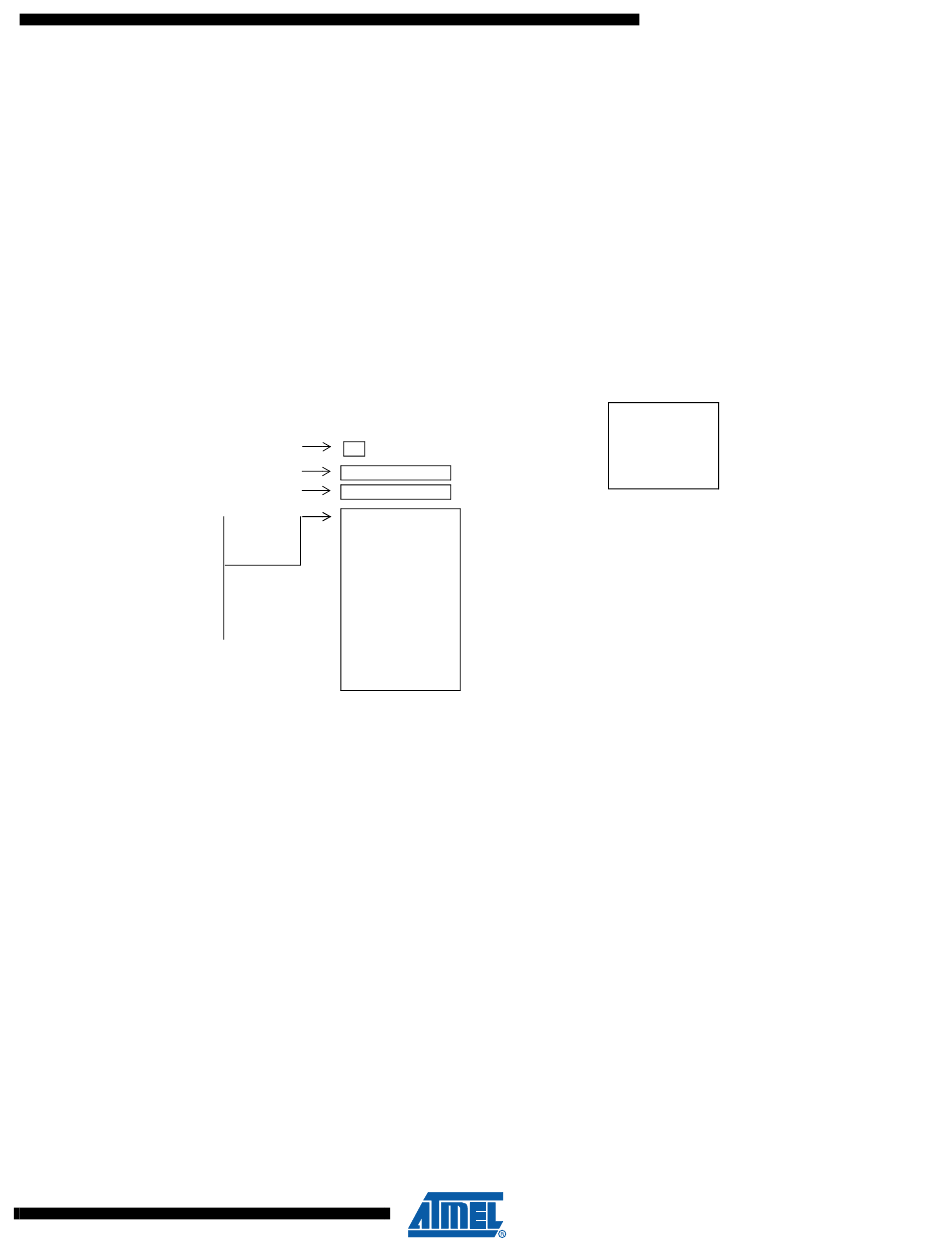

Figure 8-4.
Flash Memory Architecture
Hardware Security (1 Byte)
Extra Row (128 Bytes)
Column Latches (128 Bytes)
3FFFh for
AT89C5130A
for 16 KB
7FFFh for
AT89C5131A
for 32 KB
8.2.1
FM0 Memory Architecture
8.2.1.1
User Space
8.2.1.2
Extra Row (XRow)
8.2.1.3
Hardware Security Space
4337K–USB–04/08
AT89C5130A/31A-M features two on-chip Flash memories:
• Flash memory FM0:
containing 32 Kbytes of program memory (user space) organized into 128-byte pages,
• Flash memory FM1:
3 Kbytes for bootloader and Application Programming Interfaces (API).
The FM0 supports both parallel programming and Serial In-System Programming (ISP) whereas
FM1 supports only parallel programming by programmers. The ISP mode is detailed in the "In-
System Programming" section.
All Read/Write access operations on Flash memory by user application are managed by a set of
API described in the "In-System Programming" section.
16/32 KB
Flash Memory
User Space
FM0
0000h
The Flash memory is made up of 4 blocks (see Figure 8-4):
1. The memory array (user space) 32 Kbytes
2. The Extra Row
3. The Hardware security bits
4. The column latch registers
This space is composed of a 16/32 Kbytes Flash memory organized in 128/256 pages of 128
bytes. It contains the user's application code.
This row is a part of FM0 and has a size of 128 bytes. The extra row contains information for
bootloader usage (see
9-3 "Software Registers" on page
The hardware security space is a part of FM0 and has a size of 1 byte.
The 4 MSB can be read/written by software. The 4 LSB can only be read by software and written
by hardware in parallel mode.
AT89C5130A/31A-M
FFFFh
3 Kbytes
Flash Memory
Boot Space
FM1
F400h
FM1 mapped between FFFFh and
F400h when bit ENBOOT is set in
AUXR1 register
41)
31
