Summary of Contents for Atmel AT88CK101BK8

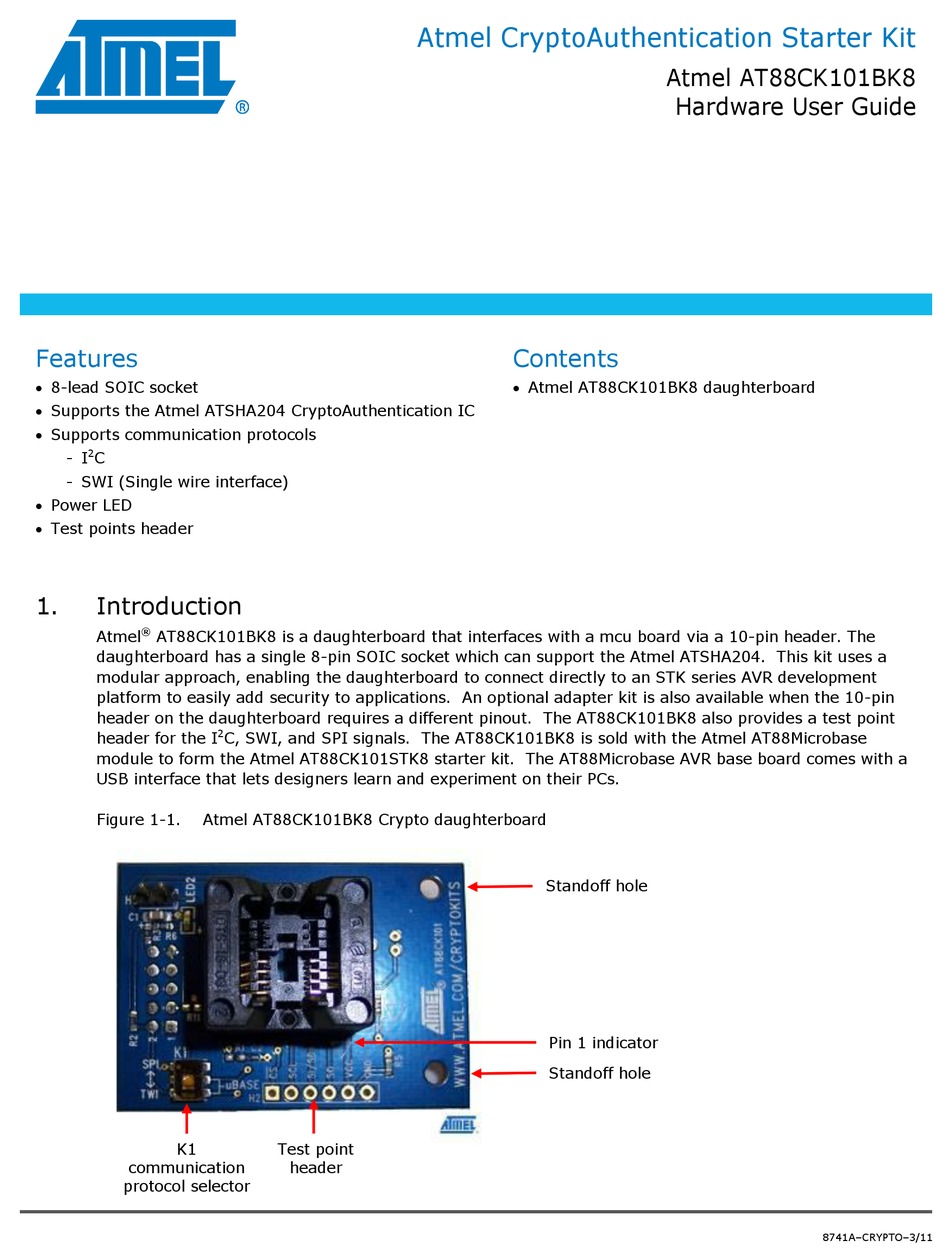

Page 1
AT88CK101BK8 is a daughterboard that interfaces with a mcu board via a 10-pin header. The daughterboard has a single 8-pin SOIC socket which can support the Atmel ATSHA204. This kit uses a modular approach, enabling the daughterboard to connect directly to an STK series AVR development platform to easily add security to applications.
Page 2

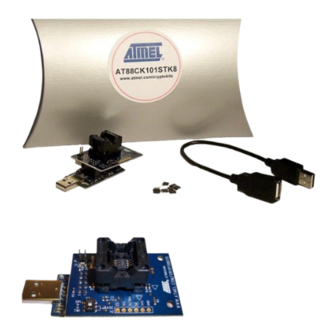

1.1. Atmel AT88CK101STK8 starter kit The AT88CK101BK8 is sold with the Atmel AT88Microbase module to form the Atmel AT88CK101STK8 starter kit. For additional information on the AT88Microbase, See Atmel doc8723A, Atmel AT88Microbase Hardware User Guide. Figure 1-2. Atmel AT88CK101STK8 starter kit Figure 1-3.
MOSI/SDA MISO Note: C Pins: SCL, SDA SPI Pins: /CS, SCLK, MOSI, MISO 2.3. Supports 8-lead SOIC and SPI interfaces with the following pinout Figure 2-1. Pinout configurations 8-lead SOIC 8-lead SOIC 8-lead SOIC Atmel AT88CK101BK8 Hardware User Guide 8741A–CRYPTO–3/11...
Page 4
2.4. Configurations Table 2-3 describes the how to configure the AT88CK101BK8 with respect to the AT88Microbase and the STK/EVK development platforms. Table 2-3. Atmel AT88CK101STK8 starter kit configuration guide Atmel AT88CK101STK8 starter kit configuration guide Atmel AT88Microbase Atmel AT88CK101BK8 Atmel AT88CK101BK8...
Page 5
An optional adapter kit is also available when the 10-pin header on the daughterboard requires a different pinout. Figure 2-3. Atmel AT88CK301ADP adapter kit Figure 2-4. Atmel AT88CK101BK8 and Atmel AT88CK301ADP with the Atmel AT91SAM7S-EK board Table 2-4. 10 pin squid cable 10 pin squid cable black white...
