Description
The 1100DI provides two-way, supervised communication using 900 MHz frequency hopping-spread-spectrum
technology. The 1100DI In-Line Wireless Receiver provides up to up to 32 wireless zones for XT30/XT50 Series
Version 102 or higher. The compact design allows the receiver to be installed anywhere along the panel keypad bus,
such as next to a keypad. The wireless system is designed so only one 1100 receiver is used per panel.
Compatibility
•
XT30 Series panel
•
XT50 Series panel using firmware version 102 or higher
What is Included
The 1100DI Wireless Receiver includes the following items:
•
One Model 1100DI Wireless Receiver with housing
•
One Optional Mounting Bracket
•
One 4-wire Harness
•
Hardware pack
Installing the Wireless Receiver
Selecting a Location
A location should be selected that will be centrally located between the 1100 Series transmitters used in the
installation. Install the receiver away from large metal objects. Mounting the receiver on or near metal surfaces
impairs performance. Do not use shielded wire between the panel and receiver. When selecting the proper
mounting location and operation, refer to the LED Survey Operation section.
Installing the Receiver without the Mounting Bracket
1. Remove the cover from the plastic housing by squeezing both ends toward each other or inserting a screwdriver
in the slot at the end of the housing.
2. Connect the receiver to the panel keypad bus using the supplied 4-wire harness. Route the wires through the
opening in the back of the housing.
3. Place one screw into the mounting hole location as shown in Figure 1 or use the optional double-sided tape and
secure the housing to the surface.
4. Snap the cover back in place.
Note: For UL listed installations, do not use the optional double-sided tape.
Inst alla tIon GuIde
1100DI In-Line Wireless Receiver

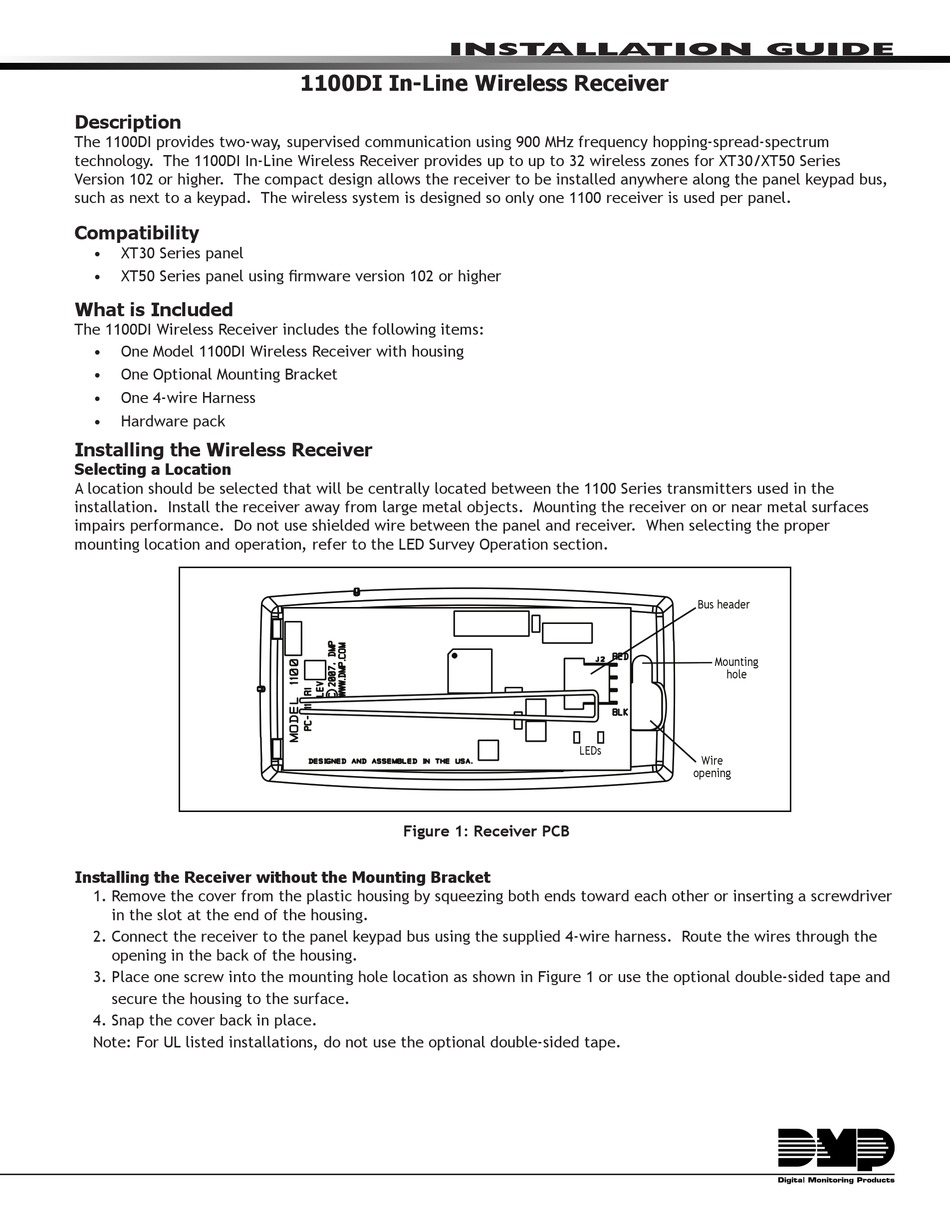

Figure 1: Receiver PCB
Bus header
Mounting
hole
LEDs
Wire
opening
Advertisement
Table of Contents
Related Manuals for DMP Electronics 1100DI
Summary of Contents for DMP Electronics 1100DI
- Page 1 The 1100DI provides two-way, supervised communication using 900 MHz frequency hopping-spread-spectrum technology. The 1100DI In-Line Wireless Receiver provides up to up to 32 wireless zones for XT30/XT50 Series Version 102 or higher. The compact design allows the receiver to be installed anywhere along the panel keypad bus, such as next to a keypad.
- Page 2 (LT-0305) as needed. In System Options, program the House Code (1-50). In Zone Information, program the wireless zones. 1100DI Receiver Operation The 1100DI receiver automatically sends the panel house code to wireless transmitters when the unique transmitter serial number is programmed into the panel. The house code identifies the panel, receiver, and transmitters to each other. The receiver only listens for transmissions using the specified house code and/or programmed transmitter serial number.
- Page 3 Refer to the XT30/XT50 Series Programming Guide (LT-0981) for complete wireless programming information. Note: When any wireless input zone for a particular address is programmed (Ex: 11-14 = Addr 1), the 1100DI responds to the panel for this address. Other devices, such as keypads or hardwired zone expanders, cannot use this address.
- Page 4 If ALL wireless devices do not operate, refer to the following checklist: • Verify equipment model numbers. • Verify the House Code (1-50) is programmed in System Options. • Verify the 4-wire connector from the receiver J3 is connected to the XT30/XT50 Series panel terminals 7, 8, 9, and 10. • Verify what zone numbers are assigned as wireless zones and check the address settings of other device(s) connected to the keypad bus to ensure no duplicate addresses have been used. • Verify the 1100DI LEDs are operating as listed in 1100DI LED Operation on the previous page. • Verify transmitters have batteries correctly inserted. Digital Monitoring Products 1100DI Wireless Receiver Installation Guide...
- Page 5 900 MHz telephone or other cordless telephone. To comply with RF exposure requirements, a minimum distance of 20cm must be maintained between the antenna and all persons. Digital Monitoring Products 1100DI Wireless Receiver Installation Guide...
- Page 6 Attention! Older Cordless Telephones Your wireless alarm system is comprised of a state-of-the-art two-way secure network created by sophisticated transmitters and receivers. It is compliant with all FCC rules as they pertain to 900 MHz Spread Spectrum devices which require devices to share the same frequencies.
