DMP Electronics 1100DI Installation Manual

1100DI IN-LINE WIRELESS
RECEIVER
Installation Guide

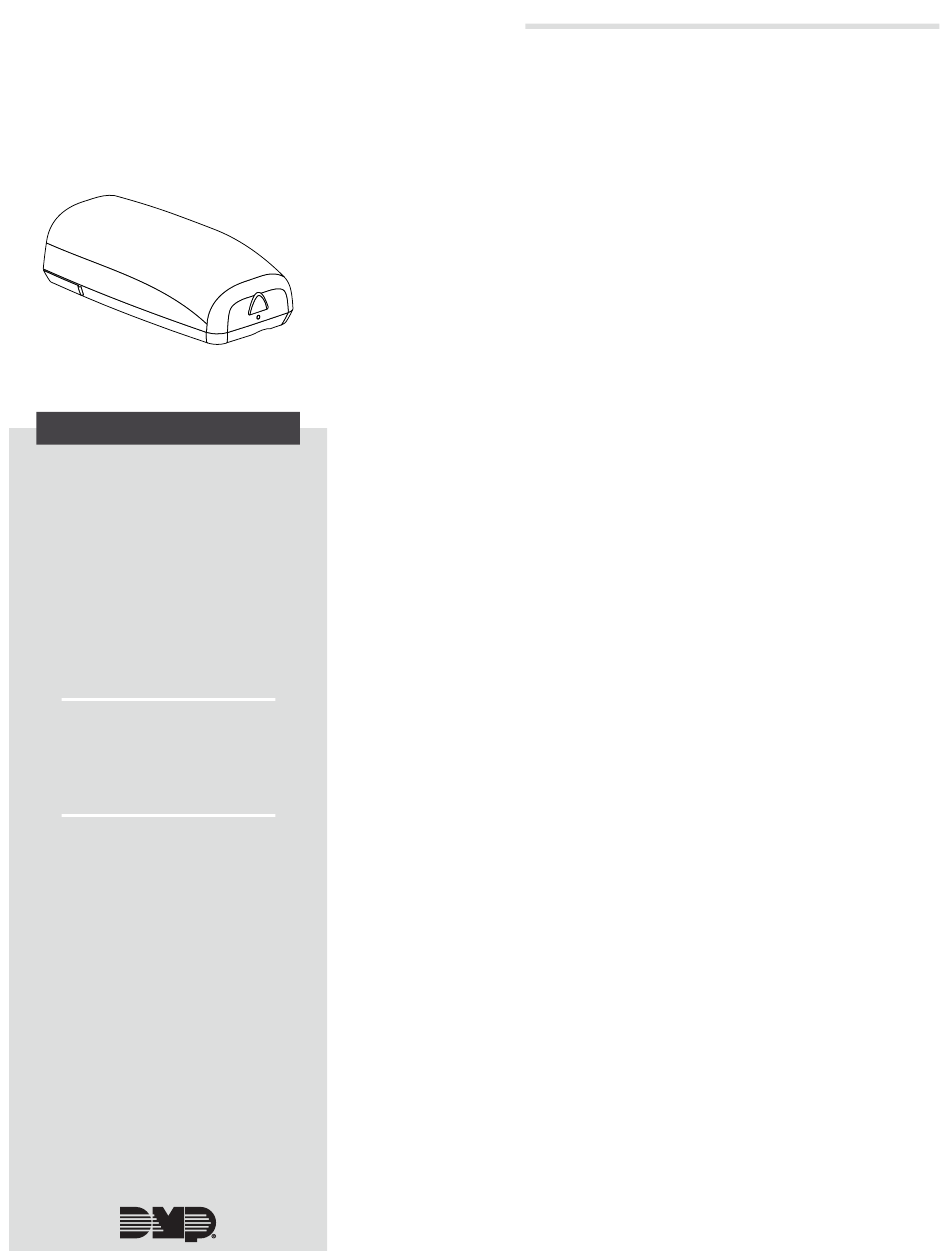

Figure 1: 1100DI Wireless Receiver
DESCRIPTION
The 1100DI provides two‑way,
supervised communication using
900 MHz frequency hopping
spread spectrum technology. The
1100DI In‑Line Wireless Receiver
provides up to 32 wireless zones
for XT30/XT50 Series Version 102
or higher. The compact design
allows the receiver to be installed
anywhere along the panel keypad
bus, such as next to a keypad. The
wireless system is designed so only
one 1100 receiver is used per panel.
Compatibility
• XT30 Series panels
• XT50 Series panels with firmware
Version 102 or higher

What is Included?

• One Model 1100DI Wireless
Receiver with housing
• One 4‑wire harness
• Hardware pack
1
PROGRAM THE PANEL
Refer to the panel programming guide as needed. After completing
each of the following steps, press CMD to advance to the next
prompt.
1. Reset the panel and enter 6653 (PROG) to access the
Programmer menu.
At SYSTEM OPTIONS, program a HOUSE CODE between
2.
1 and 50. After turning on the house code, an XT50 will
display RECEIVER NO YES. Select NO. XT30 Series panels
can only work with external receivers. For more information,
refer to House Code Explained.
3. At ZONE INFORMATION, enter the wireless ZONE NO.
At *UNUSED*, enter the zone name.
4.
At ZONE TYPE, press any select key or area and select the
5.
zone type.
6. At NEXT ZN? select NO.
When WIRELESS? displays, select YES.
7.
Enter the eight‑digit SERIAL# and press CMD.
8.
9. Enter the SUPRVSN TIME and press CMD. Default is 240.
10. At the NEXT ZN? prompt, select YES to finish programming
or select NO for additional programming options.
2
WIRE AND MOUNT THE 1100DI
Select a Location
When selecting a location to mount the 1100DI, keep in mind that
the receiver should be centrally located between the 1100 Series
transmitters used in the installation.
The 1100DI can be mounted up to 500 ft (150 m) from the panel
using 22 AWG or 1000 ft (300 m) using 18 AWG. Be sure to mount
the 1100DI away from large metal objects because it may impair
the receiver's performance. Do not use shielded wire between the
panel and receiver.
Wire and Mount the 1100DI
Refer to Figure 2 when mounting and wiring the receiver.
1. Remove the cover from the plastic housing.
2. Connect one end of the wire harness to the 1100DI bus
terminal. Connect the other end to the panel Keypad Bus.
3. Use the included screw to secure the 1100DI to the wall.
4. Snap the cover back in place.
