DMP Electronics 1100DH Series Installation Manual

1100DH SERIES HIGH POWER
WIRELESS RECEIVERS

Installation Guide

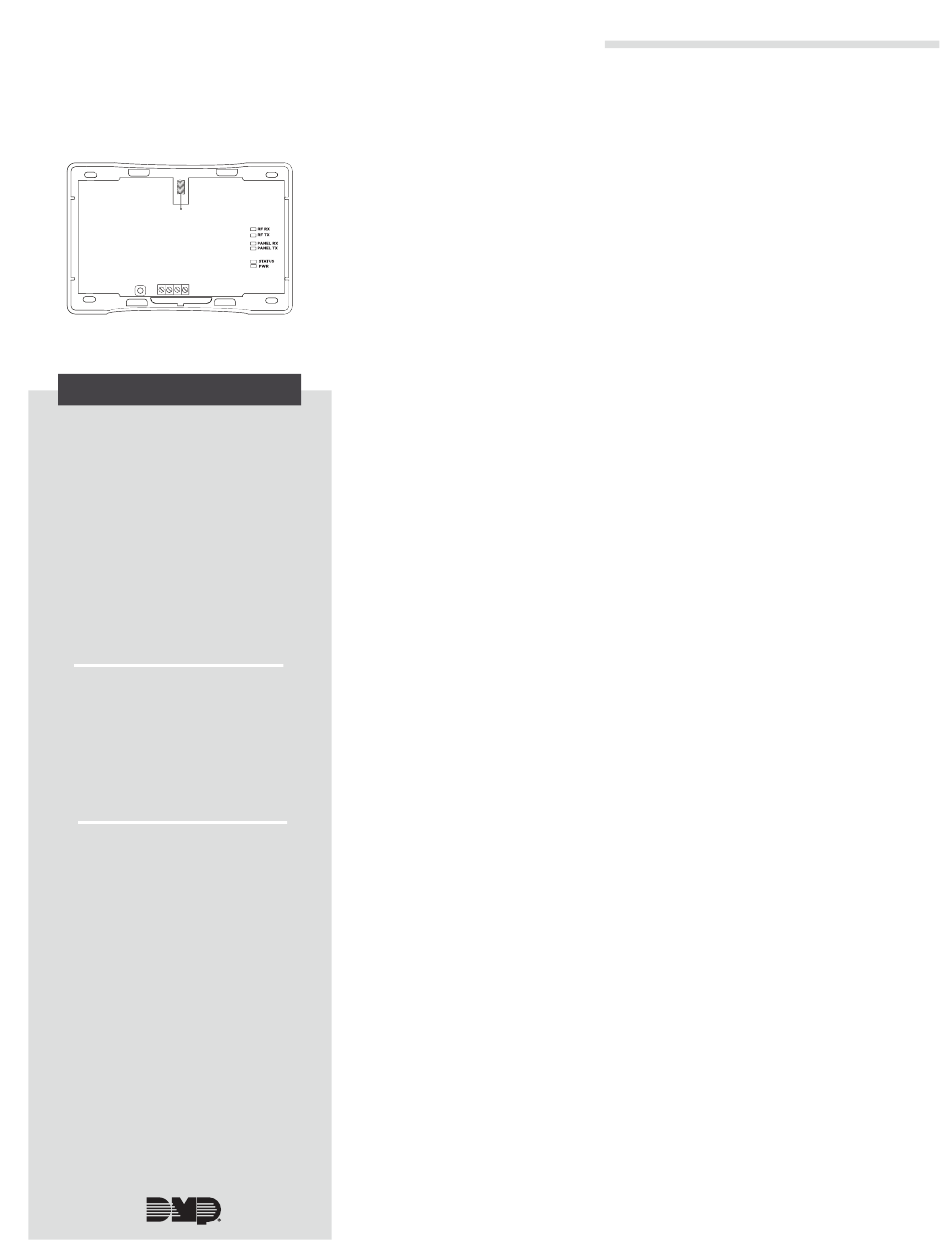

Figure 1: 1100DH High Power
Wireless Receiver
DESCRIPTION
The 1100DH Series High-Power Wireless
Receivers provide up to 32 wireless
zones for XT30/XT50 Series panels and
provides two-way communication using
900 MHz frequency hopping spread-
spectrum technology. The 1100DHE
features 128-bit AES encryption.
The 1100DH contains additional transmit
and receiver amplifiers to enable greater
distances for 1100 Series operation for
harsh building environments.
The system is designed so only one
1100DH is used per panel.
Compatibility
• XT30 Series panels
• XT50 Series panels running
firmware Version 102 or higher
• Encryption requires panel
Version 183 or higher

What is Included?

• One 1100DH Wireless Receiver
• Hardware Pack
1
PROGRAM THE PANEL
Refer to the panel programming guide as needed.
1. Reset the panel.
2. At a keypad, enter 6653 (PROG) to access the
PROGRAMMER menu.
3. In SYSTEM OPTIONS, program a HOUSE CODE
between 1 and 50. See House Code Explained
for more information.
4. If you are programming an XT50 Series panel,
select NO at the BUILT IN 1100 WIRELESS
prompt to allow the panel to use the 1100D for
wireless communication.
5. (1100DHE only) At the 1100 ENCRYPTION
prompt, select ALL to only add encrypted
wireless devices to the system. Select BOTH
to allow both encyrpted and non-encrypted
wireless devices to be programmed.
6. (1100DHE only) The default passphrase appears
at the ENTER PASSPHRASE prompt. Press
CMD to keep the default. Press any select key
or area to change the passphrase and enter an
8-character hexidecimal string (0-9, A-F).
7. Press CMD until STOP displays and press
a select key or area to save and exit the
Programmer.
2
MOUNT THE 1100DH
Select a Location
When selecting a location to mount the 1100DH, keep
in mind that the receiver should be centrally located
between the 1100 Series transmitters used in the
installation and no more than 100 feet (30 meters)
from the panel using 22 AWG wire, or 250 feet
(76.2 meters) using 18 AWG wire.
The additional amplification may inhibit proper
communication with 1100 Series wireless transmitters
located within four feet of the receiver. This distance
may be up to eight feet when using the 1122 PIR or
9000 Series Wireless Keypads.
To ensure optimal performance, be sure to mount the
receiver away from large metal objects and at least
one foot away from the panel's metal enclosure. Do
not use shielded wire between the panel and receiver.
1. Remove the cover from the plastic housing.
2. Use the included #6 screws to secure the
1100DH to the wall. See Figure 2 for mounting
hole locations.
