DMP Electronics 1100XH Installation Manual

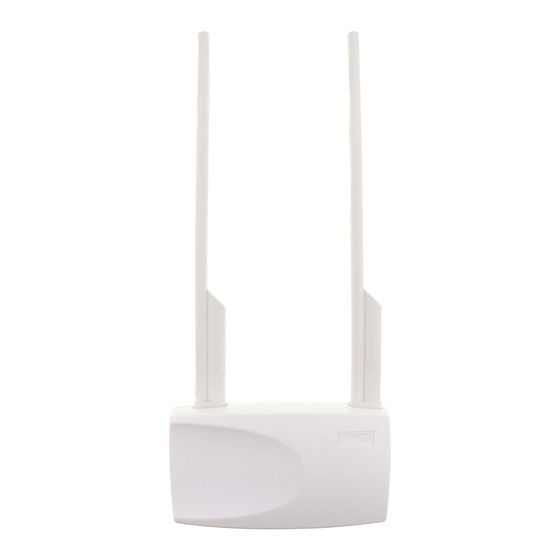

Description

The 1100XH High Power Wireless Receiver provides two-way, supervised communication using 900 MHz frequency
hopping-spread-spectrum technology. The receiver provides additional transmit and receive amplification for improved
performance at greater distance or harsh building environments. The receiver provides up to 500 wireless zones. Refer to
the panel installation guide for number of available wireless zones. The system is designed so only one 1100 receiver is
used per panel.

Compatibility

• XR150/XR550 Series panels

What is Included

• One Model 1100XH High Power Wireless Receiver
• Hardware pack

Install the Wireless Receiver

Select a Location

Choose an optimum location to mount the receiver. A
location should be selected that is centrally located
between the 1100 Series transmitters used in the
installation. Install the receiver away from large
metal objects and at least 1 foot away from the panel
enclosure. Mounting the receiver on or near metal
surfaces impairs performance. Do not use shielded wire
between the panel and receiver. When selecting the
proper mounting location of a transmitter, refer to the
LED Survey Operation section.
The 1100XH High Power Wireless Receiver contains
additional transmit and receive amplifiers to enable
greater distances for 1100 Series operation. The
additional gain introduced by this amplification may inhibit
proper communication with 1100 Series transmitters located
within 4 feet of the receiver. This distance may be 8 feet when
using the 1121 PIR or 9000 Series Keypad.
Tamper Switches
The 1100XH is equipped with a case tamper and a wall tamper.
A two position header is provided to disable the wall tamper. To
disable the wall tamper, place the jumper across the two pins of
the header. If wall tamper is required, place the jumper over just
one pin for storage.

Mount the Receiver

1. Remove the cover from the plastic housing by squeezing
both sides toward each other.
2. Secure the receiver to the wall ensuring the two antennas
are pointing up and the wall tamper switch makes proper
contact with the wall. Use the supplied screws in the
mounting hole locations as shown in Figure 1.
1100XH High Power Wireless Receiver
INSTALLATION GUIDE
Panel Receive
Panel Transmit
RF Transmit
Mounting Hole
Mounting Screw
Locations
Shoulder Washer
1
Squeeze
2-pin Header
to Remove
Cover
L17
U11

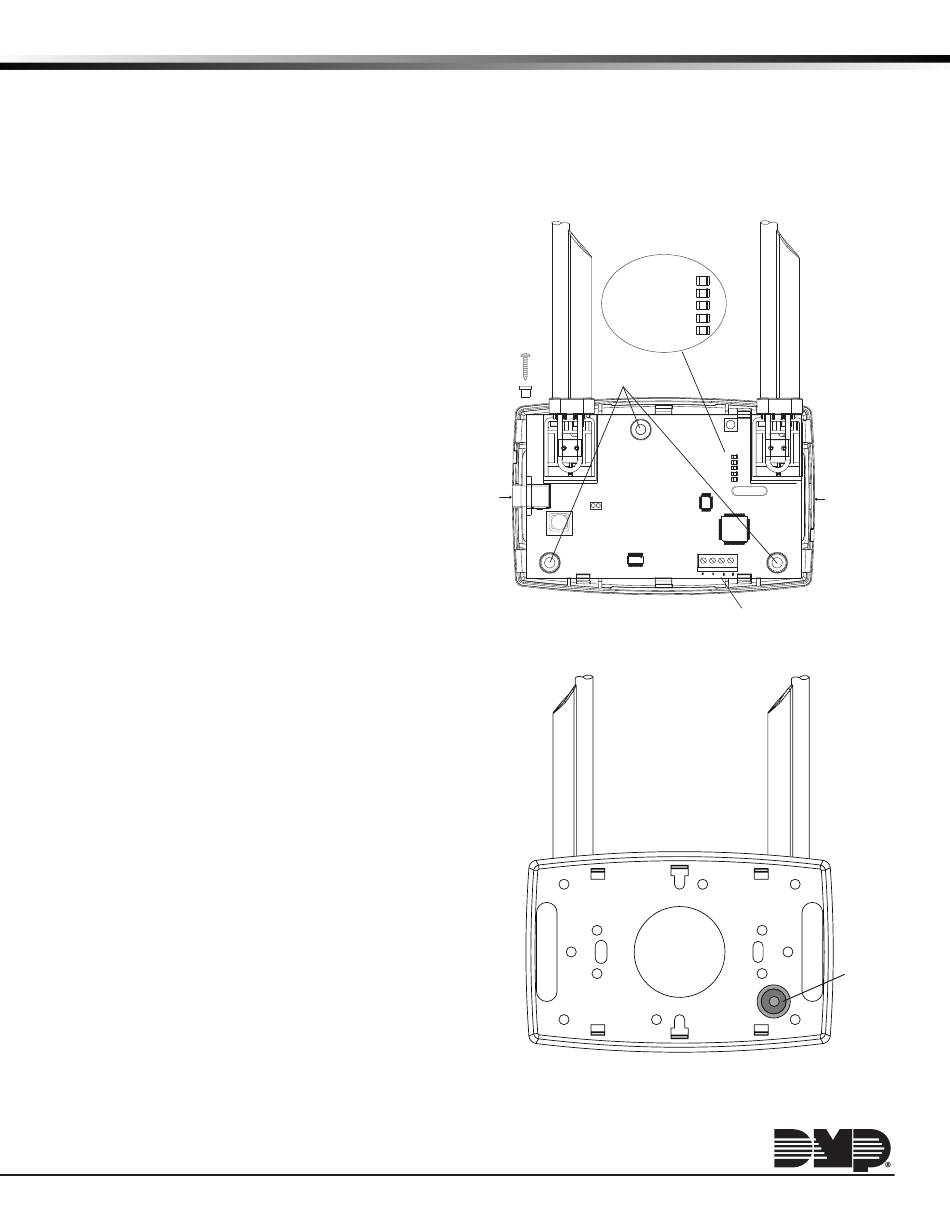

Figure 1: Receiver PCB
Figure 2: Wall Tamper Location
Status
RF Receive
LEDs
Tamper
Switch
1
Panel Receive
Panel Transmit
Status
RF Receive
RF Transmit
Y1
U8
U10
TO PANEL
To Panel
Squeeze
to Remove
Cover
Wall
Tamper
