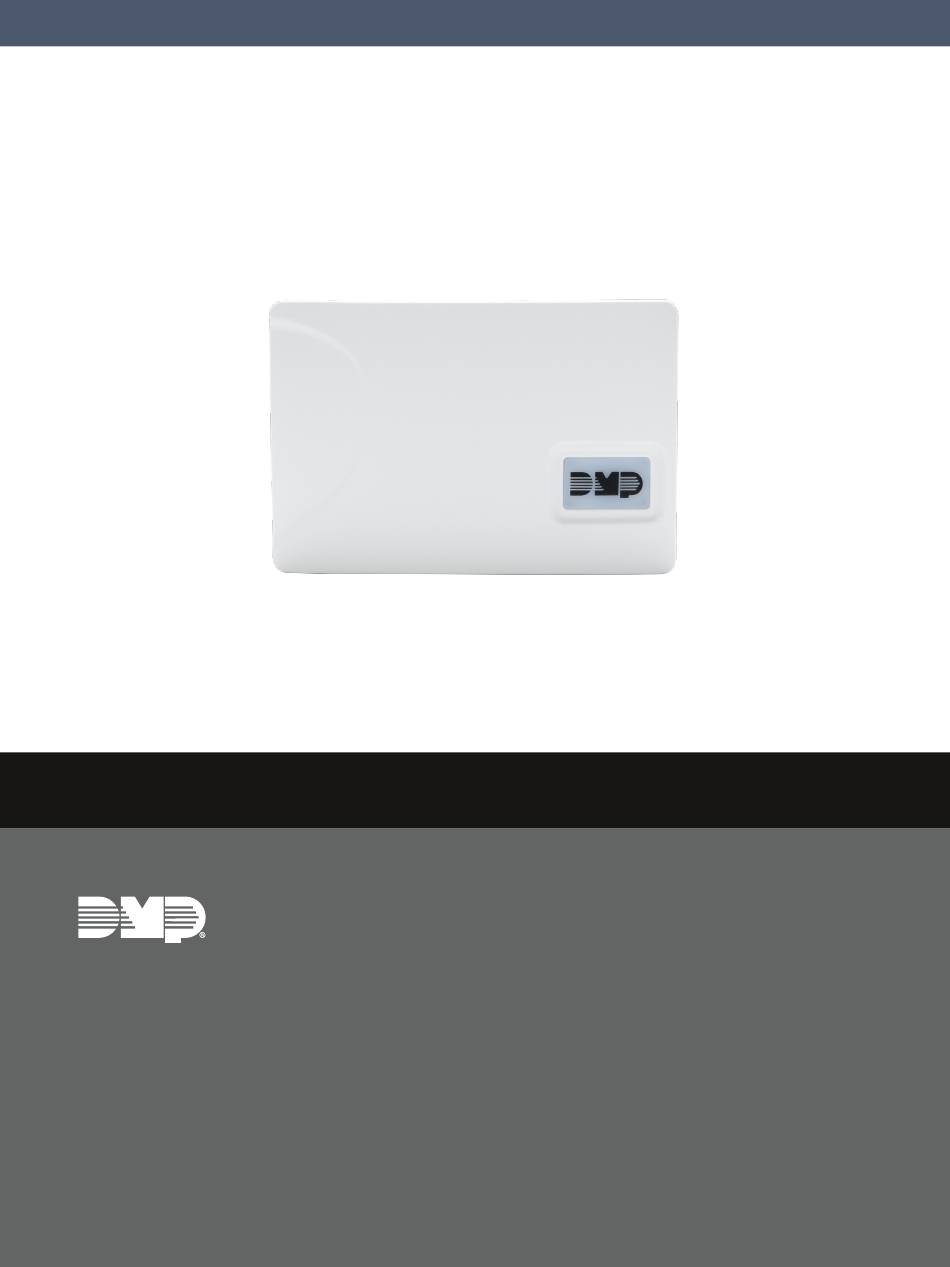

- Page 1 INSTALLATION AND PROGRAMMING GUIDE 1100X Series Wireless Receiver...
-
Page 2: Get Started
GET STARTED The 1100X Series Wireless Receiver provides up to 100 wireless zones for XR150 Series panels and up to 500 wireless zones for XR550 Series panels. The 1100XE features 128-bit AES encryption. The 1100X also provides two-way communication using 900 MHz frequency hopping-spread-spectrum technology. -
Page 3: Installation
INSTALLATION Program the Panel Refer to the panel programming guide as needed. Reset the panel. At a keypad, enter 6653 (PROG) to access the PROGRAMMER menu. In SYSTEM OPTIONS, program a HOUSE CODE between 1 and 50. See House Code Explained for more information. -
Page 4: Wire The Receiver
Snap the cover back onto the base. Note: The receiver can’t operate if it’s connected to the keypad bus. Mounting Hole Power LED XR150/XR550 Locations Series Panel WALL TAMPER 1100X Series RF RX ENABLE RF TX DISABLE Receiver PANEL RX PANEL TX STATUS... -
Page 5: Additional Information
Other devices, such as keypads or hardwired zone expanders, cannot use this address. Zones connected directly to the panel cannot be wireless. See Table 1 for designated zone numbers. DMP PANEL AVAILABLE ZONES ZONE RANGES XR150 (1100X Series) 500 - 599 XR550 (1100X Series) 500 - 999 Table 1: Zone Number Designations... -
Page 6: Transmitter Supervision Time
Transmitter Supervision Time For listed installations, program the transmitter supervision time in panel zone programming as listed in the following table. Refer to the panel programming guide for complete wireless programming information. UL LISTING LISTED ACCESSORIES SUPERVISION TIME 1164 Synchronized Smoke Detector UL 268 Smoke-Automatic Fire Detectors 1164NS Smoke Detector with No Sounder 1168 Wireless Smoke/CO/Low Temp Detector... -
Page 7: Ordering Information
LISTED COMPLIANCE SPECIFICATIONS For applications that must conform to a National Recognized Testing Laboratory certified system, read the information below for additional information. Commercial Fire Transmitters must be programmed as supervised. Refer to Table 3 for specific supervision times. The maximum line impedance of the 4-wire bus is 16.2 Ohms for 1,000 feet (305 meters). -
Page 8: Fcc Information
CERTIFICATIONS ▶ California State Fire Marshal (CSFM) New York City (FDNY) ▶ ▶ FCC Part 15 Registration ID: CCKPCO114R6 CCKPC0245 ▶ Industry Canada: 5251A-PC0114R6 5251A-PC0245 Underwriters Laboratory (UL) Listed ANSI/UL 1023 Household Burglar Alarm System Units ANSI/UL 864 Fire Protective Signaling Systems ANSI/UL 985 Household Fire Warning System ANSI/UL 2610...
