Description
The 1100X Wireless Receiver is compatible with all DMP wireless devices. The receiver provides two-way, supervised
communication using 900 MHz frequency hopping-spread-spectrum technology. The receiver can be mounted up to
1,000 feet from the panel enclosure. The receiver provides up to 500 wireless zones. Refer to the panel installation
guide for number of available wireless zones.
Compatibility
• XR500 Series panels using firmware Version 113 or higher
• XR100 Series panels
• XR150/XR350/XR550 Series panels

What is Included

The receiver includes the following items:
• One Model 1100X Wireless Receiver
• One 4-wire Harness
• Hardware pack
Compliance Instructions
For applications that must conform to a National Recognized Testing Laboratory certificated system, please see the
Listed Compliance Specifications section at the end of this guide for additional instructions.
Installing the Wireless Receiver
Selecting a Location
Choose an optimum location to mount the receiver. The 1100X Wireless Receiver is typically mounted at a distance
not to exceed 1000 feet away from the panel enclosure. A location should be selected that is centrally located
between the 1100 Series transmitters used in the installation. Install the receiver away from large metal objects.
Mounting the receiver on or near metal surfaces impairs performance. Do not use shielded wire between the panel
and receiver. When selecting the proper mounting location of a transmitter, refer to the LED Survey Operation
section of the specific installation guide for the transmitter being installed.
Tamper Switches
The 1100X is equipped with a case tamper and a wall tamper.
Mounting the Receiver
1. Remove the cover from the plastic housing by
squeezing both sides toward each other.
2. Secure the receiver to the wall in the desired
location installing the supplied shoulder
washers and screws in the mounting hole
locations as shown in Figure 1.
3. Snap the cover back on the unit. The panel
immediately recognizes the 1100X Receiver if
the panel is programmed with a house code.
1100X Wireless Receivers
Mounting Screw
Shoulder Washer
Squeeze to
Remove Cover

InstallatIon GuIde

Power
Panel Receive
Panel Transmit
Status
RF Receive
RF Transmit
LEDs
Mounting Hole
Locations
J1
1
Power
RXD
TXD
Status
RF RXD
RF TXD
1
U4
U5
U7
J5
1
Q2
RED
RED
J3
PANEL
PROG
1
1
J3 Connects
To Panel

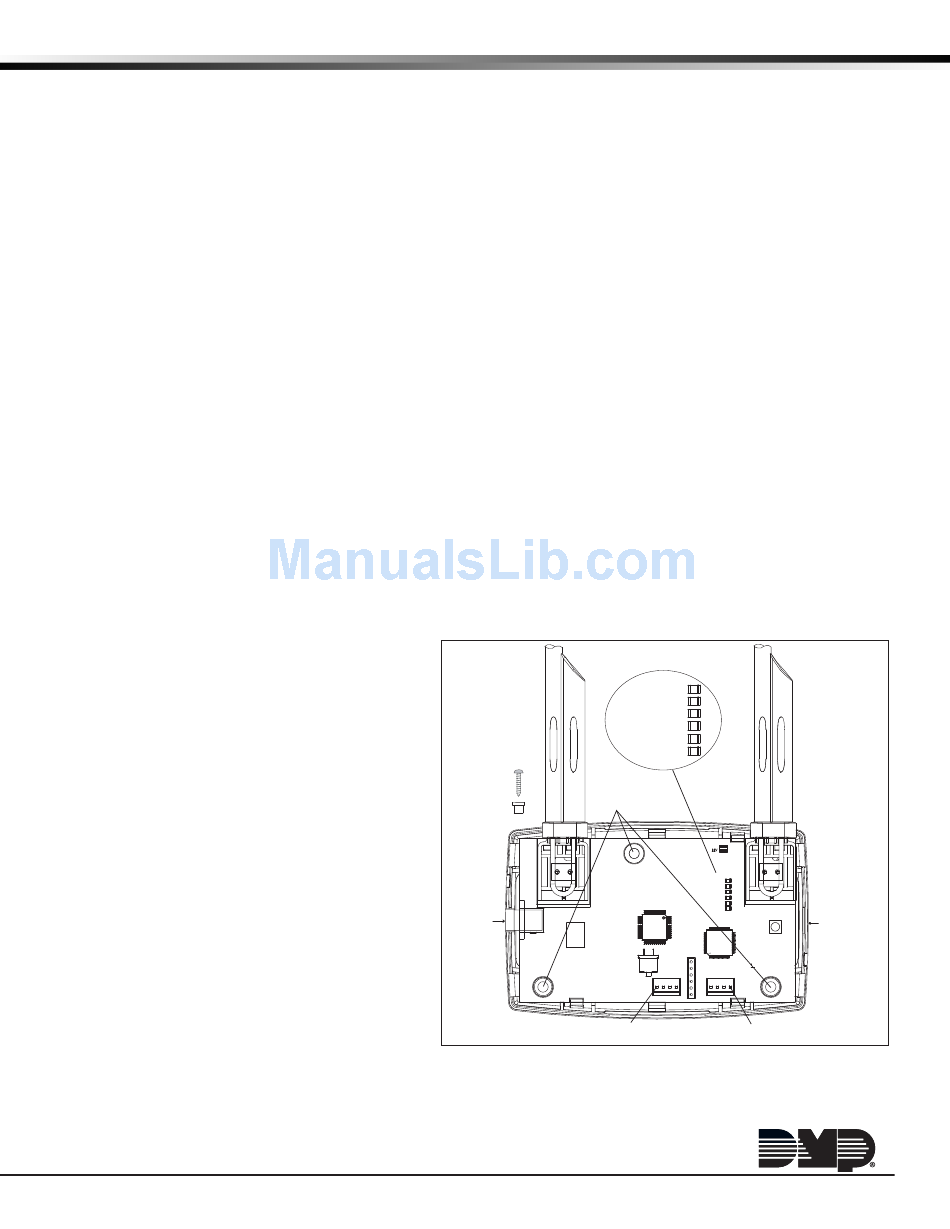

Figure 1: Receiver PCB
J4
1
Squeeze to
Remove Cover
Tamper
Switch
J4
J4 Not Used
