Description
The 1100 Wireless Receiver provides up to 32 wireless zones for XT30/XT50 Series Version 102 or higher. The 1100D
provides two-way, supervised communication using 900 MHz frequency hopping-spread-spectrum technology. The
receiver can be mounted up to 500 feet from the panel enclosure.
Compatibility
• XT30 Series panel
• XT50 Series panel using firmware version 102 or higher

What is Included

The 1100D Wireless Receiver includes the following items:
• One Model 1100D Wireless Receiver
• One 4-wire Harness
• Hardware pack
Installing the Wireless Receiver
Selecting a Location
Choose an optimum location to mount the receiver. The 1100D Wireless Receiver is typically mounted at a distance
not to exceed 500 feet away from the panel enclosure. A location should be selected that will be centrally located
between the 1100 Series transmitters used in the installation. Install the receiver away from large metal objects.
Mounting the receiver on or near metal surfaces impairs performance. Do not used shielded wire between the panel
and receiver. When selecting the proper mounting location and operation, refer to the LED Survey Operation section
of the specific installation guide for the transmitter being installed.
Mounting the Receiver
1. Remove the cover from the plastic housing by squeezing both sides toward each other.
2. Secure the receiver to the wall in the desired location installing the supplied shoulder washers and screws in
the mounting hole locations as shown in Figure 1.
3. Snap the cover back on the unit. The panel immediately recognizes the 1100D Receiver if the panel is
programmed with a house code.
Shoulder Washer
Squeeze to
Remove Cover
1100D Wireless Receiver
Panel Receive
Panel Transmit
Mounting Screw
Mounting Hole
Locations
J1
1
U7
J3 Connects
To Panel

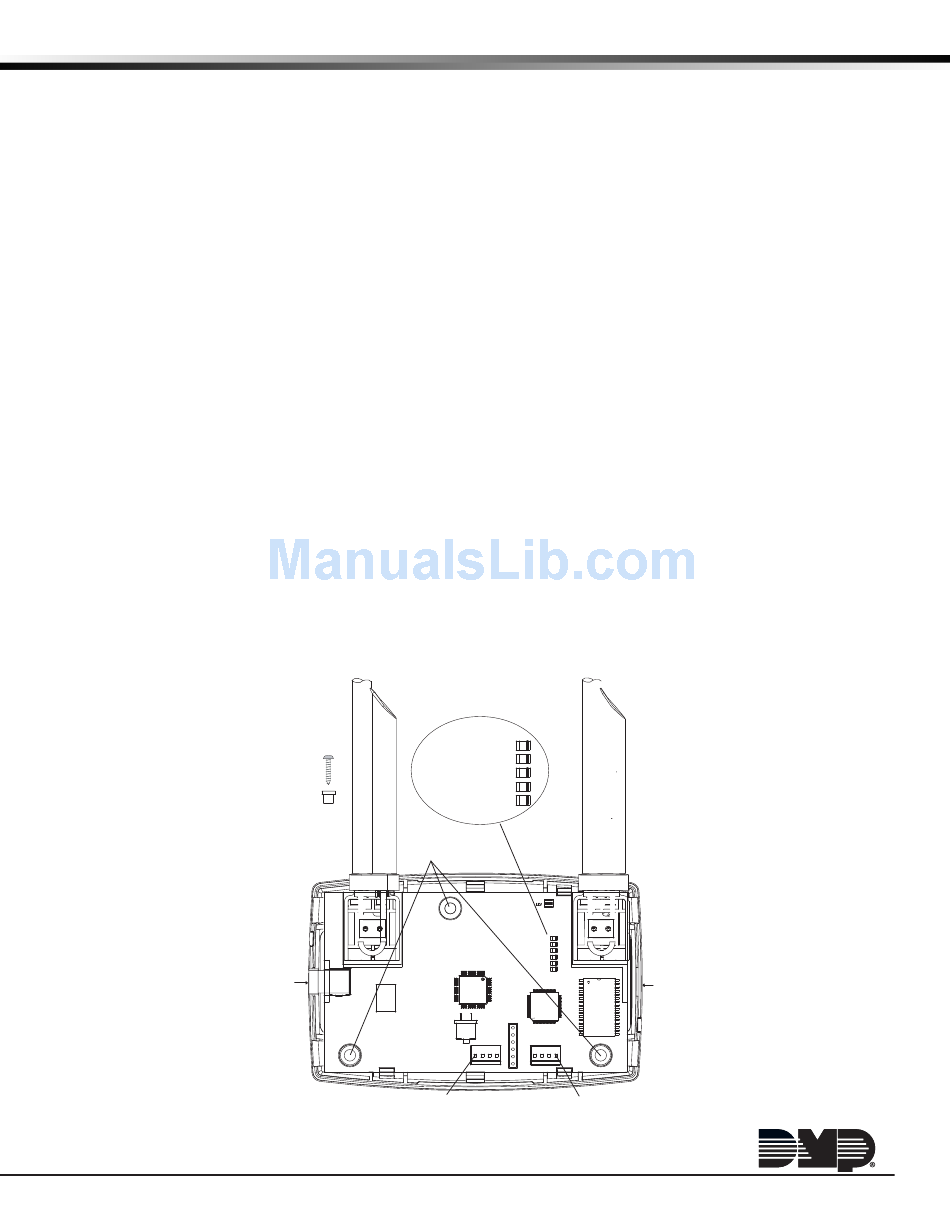

Figure 1: Receiver PCB

InstallatIon GuIde

Status
RF Receive
RF Transmit
LEDs
J4
1
Power
RXD
TXD
Status
RF RXD
RF TXD
1
U4
U8
1
U5
J5
1
Q2
RED
RED
J3
J4
PANEL
PROG
1
1
J4 Not Used
Squeeze to
Remove Cover
