1100D WIRELESS RECEIVER

Installation Guide

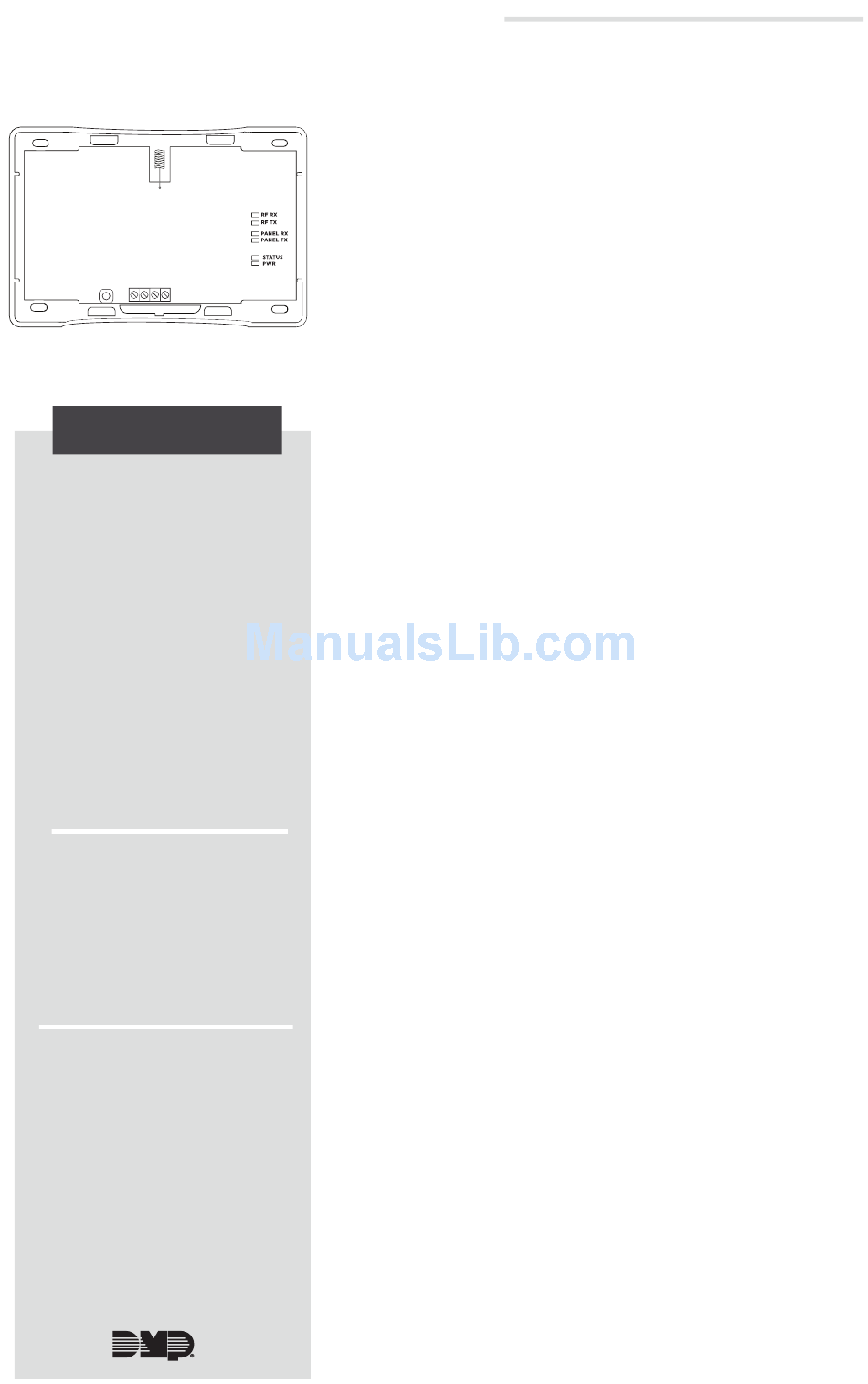

Figure 1: 1100D Wireless Receiver
DESCRIPTION
The 1100D Wireless Receiver
provides up to 32 wireless
zones for XT30/XT50 Series
panels.
The 1100D provides Two-Way,
supervised communication
using 900 MHz frequency
hopping spread spectrum
technology.
The 1100D can be mounted up
to 500 feet (152 meters) from
the panel enclosure.
Compatibility
•
DMP XT30 Series panels
•
DMP XT50 Series
panels running firmware
Version 102 or higher

What is Included

•
One 1100D Wireless
Receiver
•
Hardware Pack
1
PROGRAM THE PANEL
Refer to the panel programming guide as needed.
1.
Reset the panel.
2.
At a keypad, enter 6653 (PROG) to access
the PROGRAMMER menu.
3.
In SYSTEM OPTIONS, program a HOUSE
CODE between 1 and 50. See House Code
Explained for more information.
4.
If you're programming an XT50 Series panel,
select NO at the BUILT IN 1100 WIRELESS
prompt to allow the panel to use the 1100D
for wireless communication.
5.
Press CMD until STOP displays and press
a select key or area to save and exit the
Programmer.
2
MOUNT THE 1100D
Select a Location
When selecting a location to mount the
1100D, keep in mind that the receiver should
be centrally located between the 1100 Series
transmitters used in the installation and no
more than 500 feet (152 meters) away from the
panel. Be sure to mount the receiver away from
large metal objects because it may impair the
receiver's performance. Also, be sure to not use
shielded wire between the panel and receiver.
Follow the directions below to mount the 1100D:
1.
2.
3
WIRE THE 1100D
1.
Connect the red, yellow, green, and black
wires to the PANEL terminal on the 1100D
and connect the other ends to the 7, 8, 9,
and 10 terminals on the panel. See Figure 2.
2.
Replace the cover back on to the base. The
panel immediately recognizes the 1100D if
the panel is programmed with a house code.
Remove the cover from the plastic
housing.
Use the included #6 screws to secure
the 1100D to the surface. See Figure 2
for mounting hole locations.
