Description

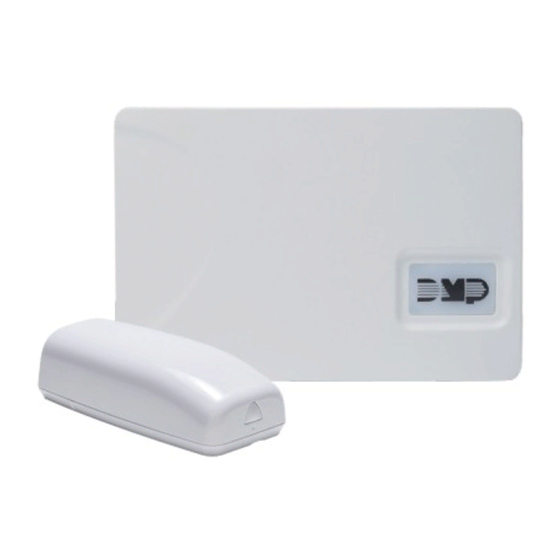

The 1100DH High Power Wireless Receiver provides two-way, supervised communication using 900 MHz frequency-
hopping spread-spectrum technology. The receiver provides additional transmit and receive amplification for
improved performance at greater distances or harsh building environments. The receiver provides up to 32 wireless
zones for XT30/XT50 Series panels with Version 102 or higher (28 zones using one keypad). The system is designed so
only one 1100DH receiver is used per panel.
Compatibility
•
XT30 Series panel
•
XT50 Series panel using firmware version 102 or higher
What is Included
The receiver includes the following items:
•
One Model 1100DH High Power Wireless Receiver
•
Hardware pack
Installthe Wireless Receiver
Choose an optimum location to mount the receiver. Choose a location that is centrally located between the 1100
Series transmitters used in the installation. Install the receiver away from large metal objects and at least 1 foot
away from the panel enclosure. Mounting the receiver on or near metal surfaces impairs performance. Do not use
shielded wire between the panel and receiver. When selecting the proper mounting location of a transmitter, refer
to the LED Survey Operation section.
The 1100DH High Power Wireless Receiver contains additional transmit and receive amplifiers to enable greater
distances for 1100 Series operation. The additional gain introduced by this amplification may inhibit proper
communication with 1100 Series transmitters located within 4 feet of the receiver. This distance may be 8 feet when
using the 1121 PIR or 9000 Series Wireless Keypads.

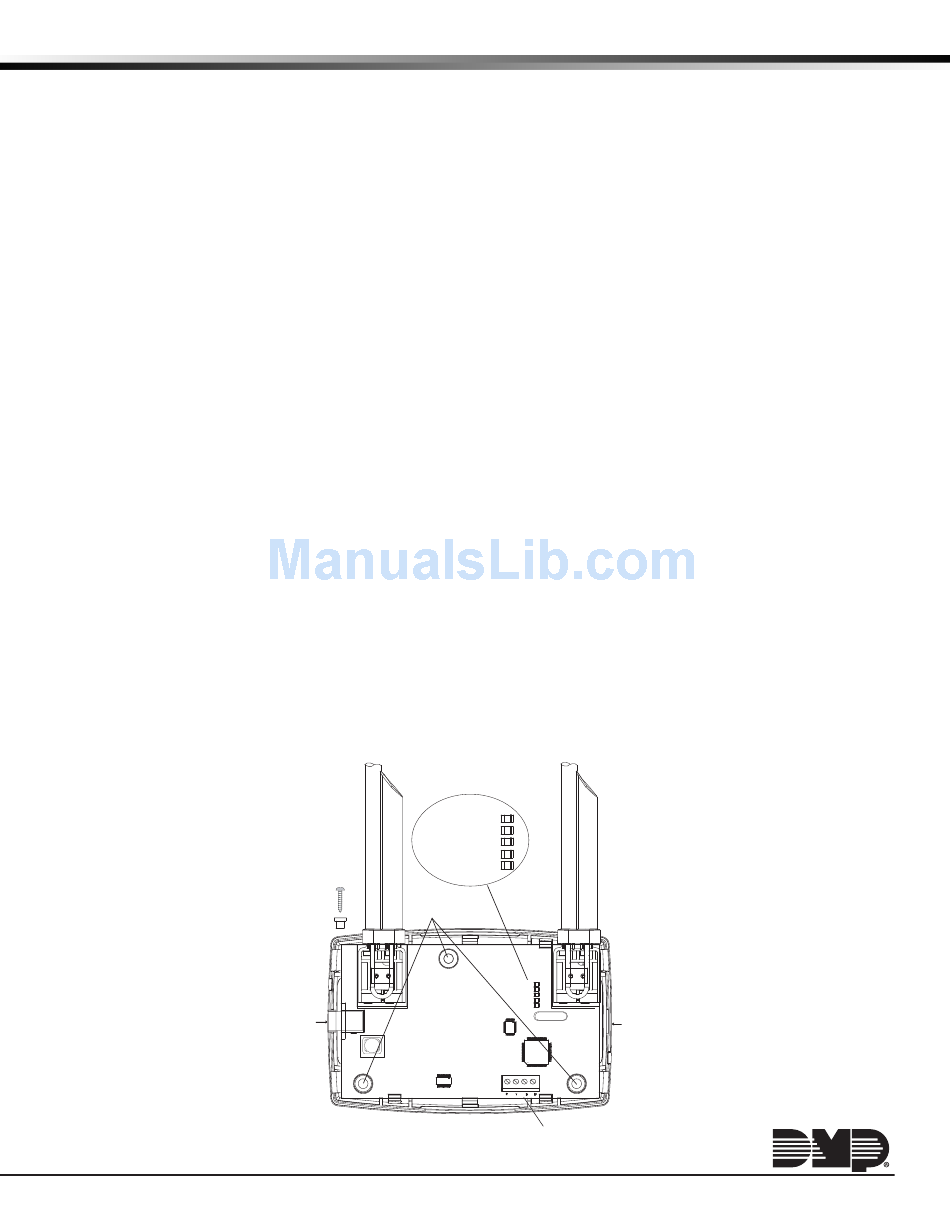

Remove the cover from the plastic housing by squeezing both sides toward each other. Secure the receiver to the
wall in the desired location, ensuring the two antennas are pointing up. Install the supplied mounting screws and
shoulder washers in the mounting hole locations as shown in Figure 1.
1100DH High Power Wireless Receiver
Panel Receive
Panel Transmit
RF Receive
RF Transmit
Mounting Hole
Mounting Screw
Locations
Shoulder Washer
1
Squeeze
to Remove
Cover
L17
U11
Figure 1: Receiver PCB
INSTALLATION GUIDE
Status
LEDs
1
Panel Receive
Panel Transmit
Status
RF Receive
RF Transmit
U8
Y1
Squeeze
to Remove
U10
Cover
TO PANEL
To Panel
Advertisement
Table of Contents
Related Manuals for DMP Electronics 1100DH
Summary of Contents for DMP Electronics 1100DH
- Page 1 When selecting the proper mounting location of a transmitter, refer to the LED Survey Operation section. The 1100DH High Power Wireless Receiver contains additional transmit and receive amplifiers to enable greater distances for 1100 Series operation. The additional gain introduced by this amplification may inhibit proper communication with 1100 Series transmitters located within 4 feet of the receiver.
-
Page 2: Keypad Bus Wiring
Refer to Figure 2, the panel programming guide and use the following steps to connect the panel and receiver: 1. Connect from the 1100DH PANEL terminal to the panel keypad bus terminals 7, 8, 9, and 10. Observe wire colors when connecting to the terminals. -
Page 3: 1100Dh Led Operation
Transmitter transmits • Transmitter receives data from receiver, but not a valid acknowledgement • Processor briefly goes to sleep • Entire sequence is repeated, each short flash indicates a cycle Digital Monitoring Products 1100DH High Power Wireless Receiver Installation Guide... -
Page 4: General Wireless Troubleshooting
• Verify the LEDs are operating as listed in LED Operation on the previous page. • Verify transmitters have batteries correctly inserted. Digital Monitoring Products 1100DH High Power Wireless Receiver Installation Guide... -
Page 5: Transmitter Supervision Time
1164 Wireless Synchronized Smoke Detector UL 521 Heat Detectors for Fire Protective Signaling Systems 1100R Repeater 1183-135F/1183-135R Heat Detector UL 985 Household Fire Warning System Accessory 1100R Repeater 1135 Siren 9060/9063 Keypads Digital Monitoring Products 1100DH High Power Wireless Receiver Installation Guide... -
Page 6: Fcc Information
FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made by the user and not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
