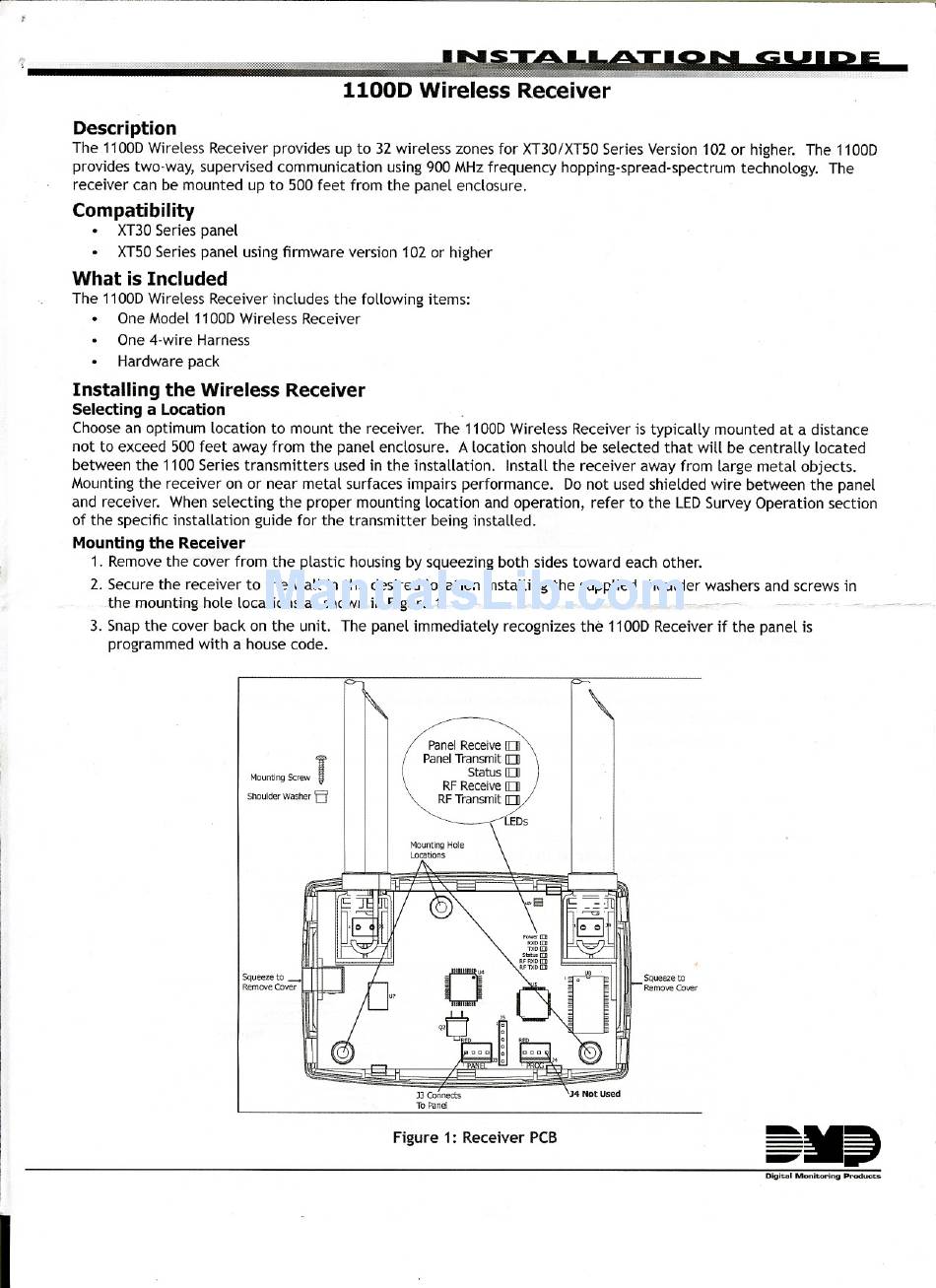

DMP Electronics 1100D Installation Manual

1100D
Wireless Receiver
.""
,
Description
The 11000 Wireless Receiver provides up to 32 wireless zones for XT30/XT50Series Version 102 or higher. The 11000
provides two-way, supervised communication using 900 MHzfrequency hopping-spread-spectrum technology. The
receivercan be mountedup to 500feet fromthe panel enclosure.
.
Compatibility
·
XT30Series panel
·
XT50Series panel using firmware version 102 or higher
What is Included
The 11000WirelessReceiverincludesthe following items:
·
OneModel11000WirelessReceiver
·
One4-wireHarness
·
Hardware pack
Installing the Wireless Receiver
Selecting a Location
Choose an optimum location to mount the receiver. The 11000 Wireless Receiver is typically mounted at a distance
not to exceed 500 feet away from the panel enclosure. Alocation should be selected that will be centrally located
between the 1100 Series transmitters used in the installation. Install the receiver away from large metal objects.
Mountingthe receiver on or near metal surfaces impairs performance. Donot used shielded wire between the panel
and receiver. When selecting the proper mounting location and operation, refer to the LEDSurvey Operation section
of the specific installation guide for the transmitter being installed.
Mountingthe Receiver
1. Remove the coverfrom the plastic housing by squeezing both sides toward each other.
2. Secure the receiver to the wall in the desired location installing the supplied shoulder washers and screws in
the mourlting hole lOGat-iorls-as~shown~iA FigUFe~.
~ - ~~
~
=~"" =,.-,,~,- --- - - - ,------
3. Snap the cover back on the unit. The panel immediately recognizes the 11000 Receiver if the panel is
programmed with a house code.
Mounting Screw
T
Shoulder Washer 'is'
Squeezeto
Remove Cover
Squeezeto
_I
Remove Coler
J3 Connects
ToPanel
Figure 1: Receiver PCB
