Digital Congress Network | Installation and Operating Manual | Chapter 4 - Central Control Equipment

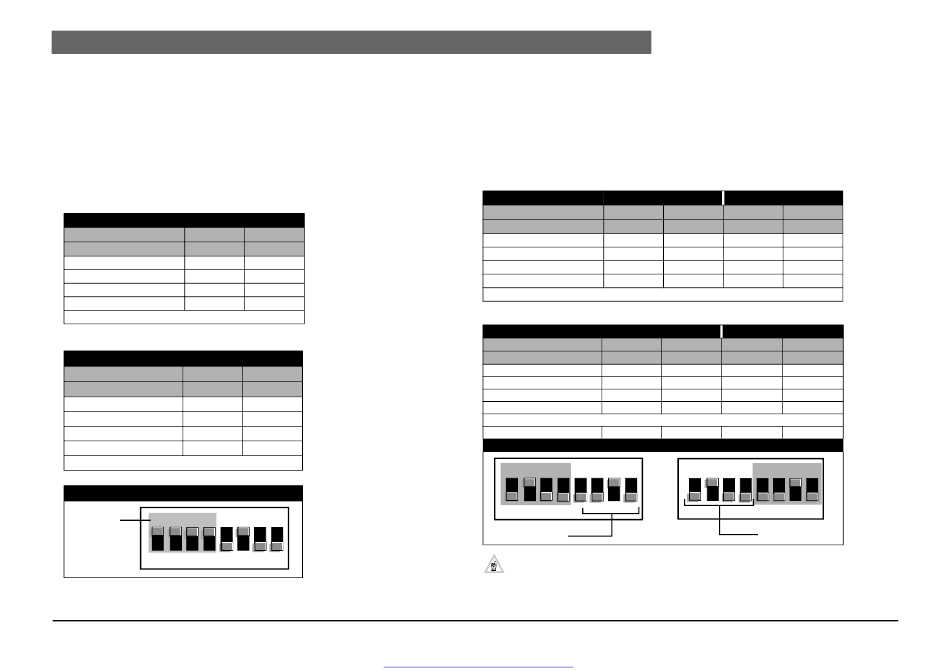

4.6

CU Protocol and Serial Port settings

For location of DIP-switches see FIG 4-3

4.6.1 LBB 3500/05 Port 1 for Camera Control

2
In a single (stand-alone) CCU system only one COM-port (Port 1) is available: Default settings are;
• 8 data bits
• No parity check
• 1 Stop bit
Table 4-5: LBB 3500/05 Protocol settings
DIP-switch S14D RA
Switch
DP-1
Not applicable OFF
Terminal OFF
Not applicable ON
Camera control* ON
* default settings for LBB 3500/05
Table 4-6: LBB 3500/05 Baud rate settings
DIP-switch S14
Switch
DP-3
9.6 K OFF
19.2 K* OFF
57.6 K ON
115.2 K ON
* default settings for LBB 3500/05
DIP-switch S14: Port 1 (default settings)
8 7 6 5 4 3 2 1
5 - 8
Not used
S14 ON
Bosch Security Systems | 04-2003 | 3922 988 43318 en
and FIG 4-5.
Port 11
Switch
DP-2
OFF
ON
OFF
ON
Port 1
Switch
DP-4
OFF
ON
OFF
ON
Get other manuals https://www.bkmanuals.com
4.6.2 LBB 3500/15 and LBB 3500/35 (TCB 4) - Port 1 : DCN Control PC
In a single (stand-alone) CCU systems two serial COM-ports (Port 1 and Port 2) are available.
Both ports can be individually configured. Default settings are;
• 8 data bits
• No parity check
• 1 Stop bit
Table 4-7: LBB 3500/15 and LBB 3500/15 Protocol settings
DIP-switch S14 Port 1
Switch
DP-1
Simple (Open interface) OFF
Terminal OFF
Full ON*
Camera control ON
* default settings for LBB 3500/15 and LBB 3500/35
Table 4-8: LBB 3500/15 and LBB 3500/35 Baud rate settings
DIP-switch S14 Port 1
Switch
DP-3
9.6 K OFF
19.2 K OFF
57.6 K ON
115.2 K ON*
* default settings for LBB 3500/15 and LBB 3500/35
DIP-switch S14 (default settings)
8 7 6 5 4 3 2 1
S14 ON
Port 1 default
NOTE:
It is possible to select 'Full' protocol on both Port 1 and Port 2. However this is NOT
recommended due to processing power and memory limitations.
Port 2 : Camera Control
Port 2RT
Switch Switch Switch
DP-2 DP-5 DP-6
OFF OFF OFF
ON OFF ON
OFF* ON OFF
ON ON* ON*
Port 2
Switch Switch Switch
DP-4 DP-7 DP-8
OFF OFF OFF
ON OFF* ON*
OFF ON OFF
ON* ON ON
8 7 6 5 4 3 2 1
S14 ON
Port 2 default
CU Protocol and Serial Port settings
en | 4-8
