Digital Congress Network | Installation and Operating Manual | Chapter 11 - System Set-up and Operation

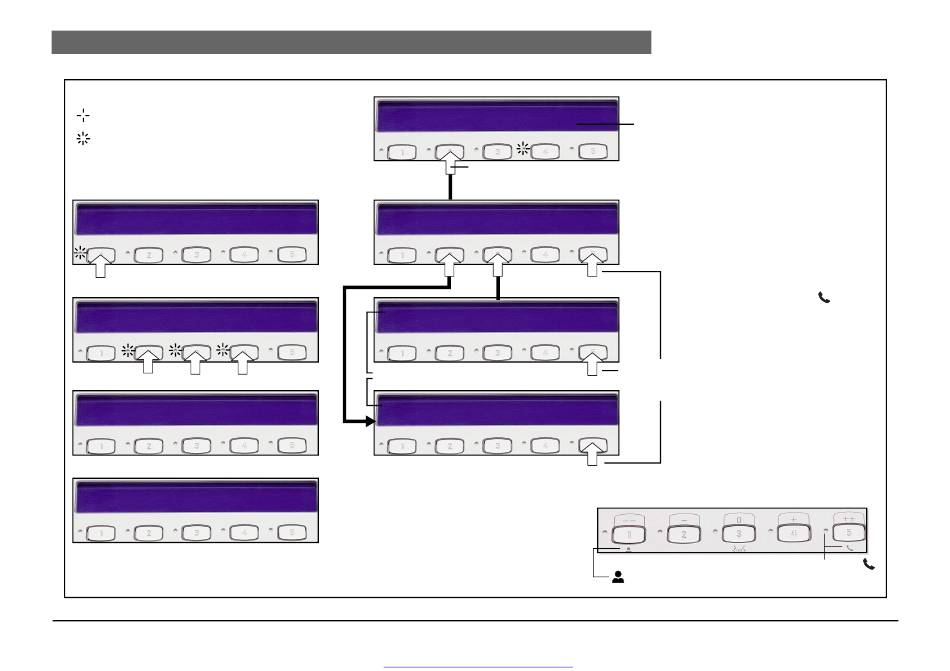

LED status during voting procedure
ON
2
FLASHING
PARLIAMENTARY VOTING
PRESENT
NO ABSTAIN
Select voting option
P:0089 -:0017 ?:0013
VOTING ON HOLD
P:0099 -:0020 ?:0015
END OF VOTING
After 1 minute returns to MAIN menu
Bosch Security Systems | 04-2003 | 3922 988 43318 en
XX DELEGATES WAITING TO SPEAK
YES
XX = Defines number of participants
+:0049 #:0010 XX PARTICIPANTS SPEAKING
Key to voting symbols
+:0054 #:0010
P : Number of participants present
- : Number of participants voting NO
? : Number of participants ABSTAINING
+ : Number of participants voting YES
# : Number of participants voting NOT YET VOTED
Get other manuals https://www.bkmanuals.com
MAIN MENU
MICRO MESSAGE
Press key
MICRO MENU
SPEAKERS REQUESTS RETURN
RETURN
RETURN
LBB 3544/00 and LBB 3545/00 Softkeys
only displayed if
MESSAGE (
message sent from PC-operator)
INTERCOM OPERATION
( Applicable to units with an intercom
handset only)
To communicate with the system operator,
lift the handset. If in use a 'busy tone' is
heard. Replace the handset and try again.
Units with an LC-display, display 'ALL
INTERCOM LINES BUSY'. If not in use
'CALLING OPERATOR... " . At the same
time 'INTERCOM CALL' is shown on the
LC-display of the intercom operator.
INTERCOM LED status
1. LED flashes when being called
2. LED ON (steady) when connection is
made
3. LED OFF when Intercom handset
placed back on to its cradle
Press 'RETURN'
to return to the
previous menu.
- Audience response voting: (Rating scale - -, -, 0, +, ++)
- Multi-choice/opinion poll voting: (Numerals 1 - 24)
(1 - 5 numerals: LBB 3544/00 & LBB 3545/00)
Intercom handset
indication (see above)
PRESENT icon
Delegate/Chairman unit operation (Conference units only)
en | 11-10
