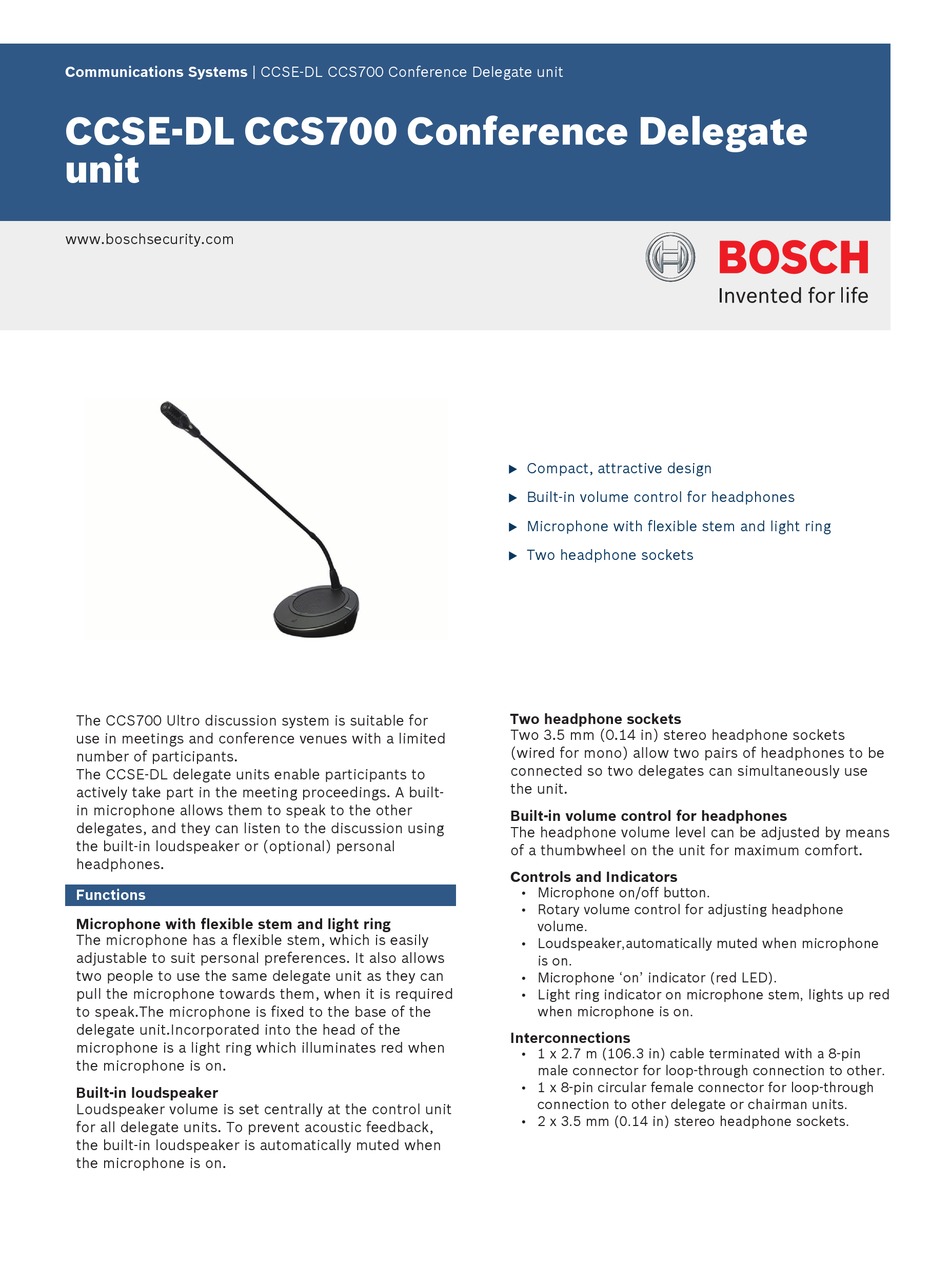

Communications Systems | CCSE-DL CCS700 Conference Delegate unit
CCSE-DL CCS700 Conference Delegate
unit
www.boschsecurity.com
The CCS700 Ultro discussion system is suitable for
use in meetings and conference venues with a limited
number of participants.
The CCSE-DL delegate units enable participants to
actively take part in the meeting proceedings. A built-
in microphone allows them to speak to the other
delegates, and they can listen to the discussion using
the built-in loudspeaker or (optional) personal
headphones.
Functions
Microphone with flexible stem and light ring
The microphone has a flexible stem, which is easily
adjustable to suit personal preferences. It also allows
two people to use the same delegate unit as they can
pull the microphone towards them, when it is required
to speak.The microphone is fixed to the base of the
delegate unit.Incorporated into the head of the
microphone is a light ring which illuminates red when
the microphone is on.
Built‑in loudspeaker
Loudspeaker volume is set centrally at the control unit
for all delegate units. To prevent acoustic feedback,
the built-in loudspeaker is automatically muted when
the microphone is on.
Compact, attractive design
u
Built-in volume control for headphones
u
Microphone with flexible stem and light ring
u
Two headphone sockets
u
Two headphone sockets
Two 3.5 mm (0.14 in) stereo headphone sockets
(wired for mono) allow two pairs of headphones to be
connected so two delegates can simultaneously use
the unit.
Built‑in volume control for headphones
The headphone volume level can be adjusted by means
of a thumbwheel on the unit for maximum comfort.
Controls and Indicators
• Microphone on/off button.
• Rotary volume control for adjusting headphone
volume.
• Loudspeaker,automatically muted when microphone
is on.
• Microphone 'on' indicator (red LED).
• Light ring indicator on microphone stem, lights up red
when microphone is on.
Interconnections
• 1 x 2.7 m (106.3 in) cable terminated with a 8-pin
male connector for loop-through connection to other.
• 1 x 8-pin circular female connector for loop-through
connection to other delegate or chairman units.
• 2 x 3.5 mm (0.14 in) stereo headphone sockets.
