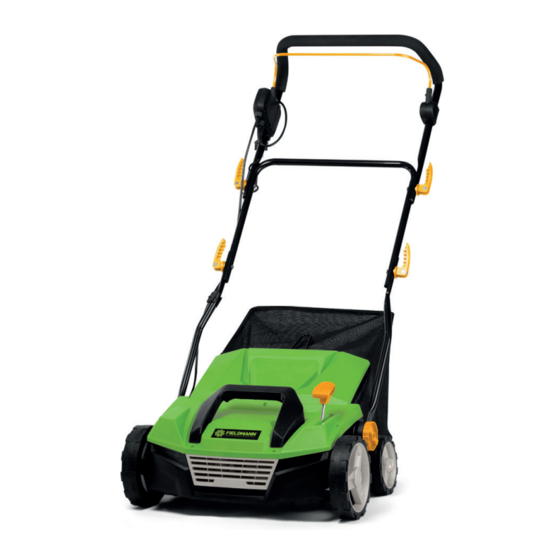

Fieldmann FZV 4003 18E User Manual

Electric scarifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FZV 4003 18E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FZV 4003 18E and is the answer not in the manual?

Questions and answers

Related Manuals for Fieldmann FZV 4003 18E

Summary of Contents for Fieldmann FZV 4003 18E

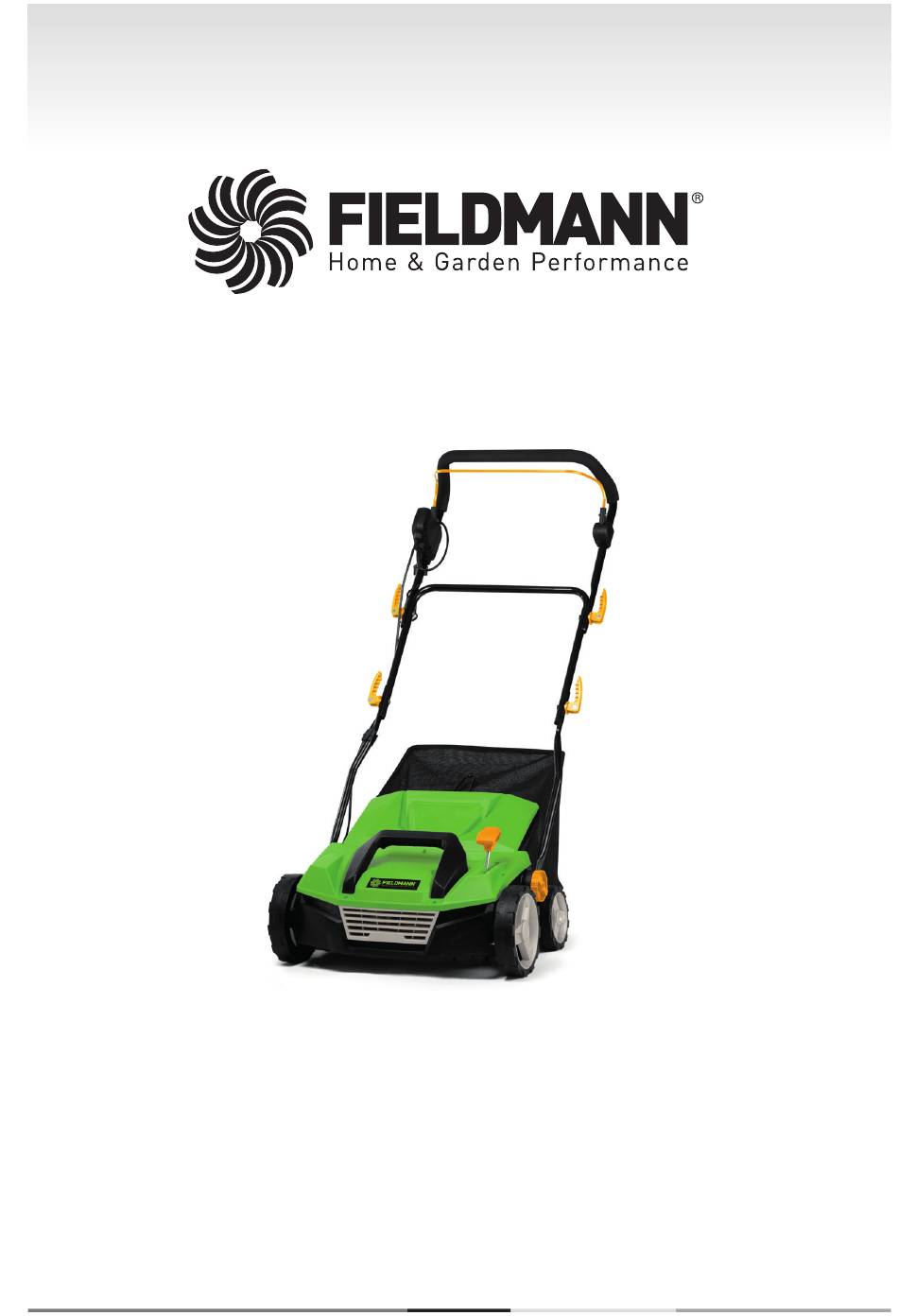

  • Page 1 FZV 4003 18E...

  • Page 2: Table Of Contents

    Table of Contents ELECTRIC SCARIFIER USER'S MANUAL Dear customer, thank you very much for the trust that you have expressed! Before putting this machine into operation, it is imperative to read this user's manual! In it, you will find all the instructions for normal operation and for achieving a long lifetime of the machine.

  • Page 3: General Safety Instructions

    General safety instruction / Symbols 1. GENERAL SAFETY INSTRUCTIONS Important safety notice Carefully unpack the product and take care not to throw away any part of the packaging before you find all the parts of the product. Store the product in a dry place out of reach of children. Read all warnings and instructions.
  • Page 4 Symbols Attention! Before putting into operation, carefully read the user's manual and the general safety instructions! Do not work in the rain or in unfavourable climatic conditions! Attention, the blade of the scarifier continues to rotate for some time after it is turned off! Keep a safe distance! Attention, rotating blades! Sharp blade/s.

  • Page 5: Safety Instructions

    Safety Instructions 3. SAFETY INSTRUCTIONS Thank you for purchasing this garden scarifier. Before you start using it, please carefully read this user's manual and save it for possible future use. Checks before every use Check the electric scarifier before every use. Do not use the electric scarifier if the safety mechanisms (start lever, safety brake, rear lid or cover) are dam- aged or worn out.

  • Page 6: Electrical Safety

    Safety instructions / Purpose of use When you stop working, place the machine in a safe location. Unplug the power plug! If you stop working in order to move to a different work location, always turn the electric scarifier off while carrying it. Move the wear compensation lever into the transport position.

  • Page 7: Description Of The Machine (Fig. 1)

    Description of the machine 5. DESCRIPTION OF THE MACHINE (FIG. 1) M ain switch B asket cover 1 0 2 M ain switch safety lock qa G rass catcher frame qs Cable clip 3 P ower cord P ower cord retainer hook qd Quick-acting lever 4 T op part of the handle...

  • Page 8: Assembling The Machine

    Assembly of the machine 6. ASSEMBLING THE MACHINE Attach the handle’s bottom parts (fig.2, point 7) using the screw (point 14). Adjust the required handle height using the XZN spline (point 17). 2. Screw on the handle’s middle part with the power cord safety clamp attached using the fast coupling lever and the handle screw (fig.
  • Page 9 Assembly of the machine 5. Place the steel frame 0 into the textile col- lection basket 9 and attach all fastener to the left, right and rear poles of the frame. Make sure that all fasteners are secured cor- rectly (fig. 6). 6.

  • Page 10: Replacing Blades

    Blade replacement 7. REPLACING BLADES DANGER! The cylinders may cause injuries! Prior to replacement, disconnect the machine from the power grid and wait for the cylinder to come to a stop. When replacing, wear work gloves. Screw out bolt 1 on the underside of the chassis (fig.

  • Page 11: Setting Up The Scarifier

    Setting up the scarifier | Putting into operation 8. SETTING UP THE SCARIFIER ATTENTION! The working depth with the scarification cylinder should be no more than 3 mm. The aeration cylinder with springs should copy the contour of the ground during operation. Setting an excessive working depth may even without visible wear on the blades/springs result in damage to the scarification cylinder or the overloading and destruction of the motor.

  • Page 12: Maintenance

    Maintenance / Scarification / Aeration 10. MAINTENANCE Cleaning the scarifier ATTENTION! Danger! A rotating blade may cause injuries. ATTENTION! Prior to maintenance, disconnect the machine from the power grid and wait for the scarifica- tion cylinder to come to a stop. ATTENTION! While performing maintenance use work gloves.

  • Page 13: Technical Specifications

    Technical specifications 12. TECHNICAL SPECIFICATIONS Electric scarifier ................................FZV 4003-18E Rated power ....................................1800 W Working width ....................................38 cm Working depth .................................. +6 to –12 mm Collection basket capacity ................................48 l Weight ....................................... 11,5 kg Protection class ....................................IPX4 Cylinder operating speed ..............................3 000 rpm Sound pressure level .........................
  • Page 14 EU DECLARATION OF CONFORMITY Product / brand: Electric Lawn Aerator/Scarifier / FIELDMANN Type / model: FZV 4003-18E as factory model WR 6022-1800Q AC 230 – 240 V, 50Hz, 1800W, cutting width 380 mm, Class II, IPX4 = 93,2 dB(A), L...

  • Page 15: Disposal

    Disposal 13. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of used packaging material at a site designated for waste in your municipality. The power tool and its accessories are manufactured from various materials, e.g. metal and plastic.
  • Page 17 Záruční podmínky Záručné podmienky Conditions of guarantee Prodávající poskytuje kupují c ímu na výrobek zá­ Predávajúci poskytuje kupujúcemu na výrobok This product is warranted for the period of 24 mon­ ruku trvání 24 měsíců od převzetí výrobku kupu­ 24 mesiacov záruku od jeho prevzatia kupujúcim. ths from the date of purchase to the end-user.
  • Page 18 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
  • Page 19 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
  • Page 20 Garantijos taisyklés Warunki gwarancji Šiam gaminiui suteikiama 24 ménesi4 nuo isigi­ Produkt obj�ty jest 24 - miesi�cznij gwarancjij, po­ jimo datos garantija. Garantija apsiriboja žemiau czqwszy od daty zakupu przez klienta. Gwarancja jest pateikiamomis Sijlygomis. Garantija skirta tik ga­ ograniczona tylko do przedstawionych dalej warun­ ków.
  • Page 21 COPYRIGHT © 2018, FAST ČR, A.S. REVISION 10/2018...
