Summary of Contents for BDS AirMAB 5000

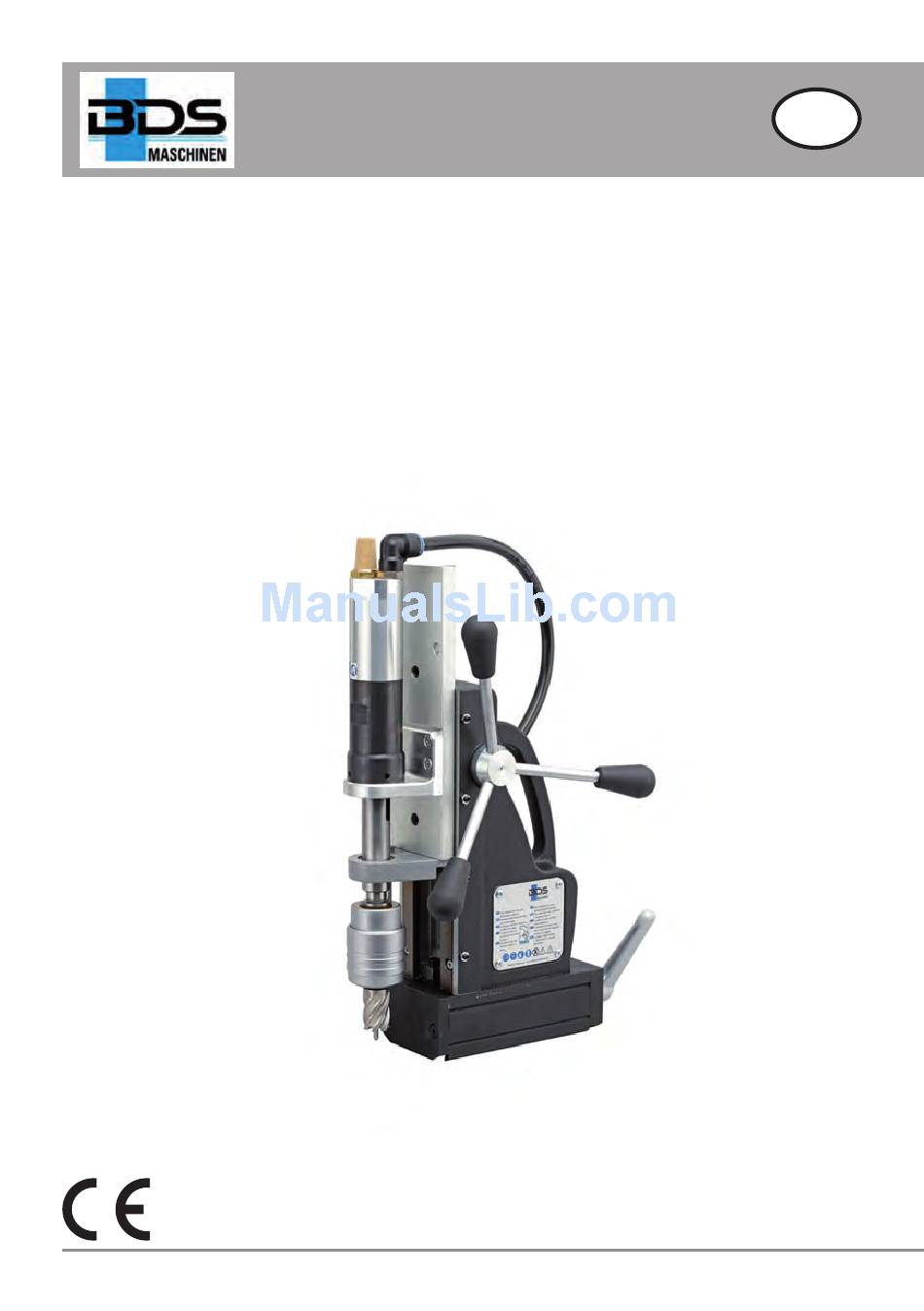

- Page 1 Original- Operating Instructions AirMAB 5000...
-
Page 4: Table Of Contents
This product may not be disposed of in the domestic refuse within the European Union. Dispose of the device via communal collection points. AirMAB 5000... - Page 5 The risk must be borne solely by the user. NOTE NOTE ► A note indicates additional information ► that simplifies the use of the machine. If used commercially, pay attention to compliance with the accident preven- tion and occupational safety regula- tions. AirMAB 5000...
-
Page 6: Safety
Keep the machine clean, dry and free of ■ Before beginning any work, check for oil and grease. proper condition of the safety chain and ■ Follow the instructions on lubricating the function of the operating elements and cooling the tool. of the machine. AirMAB 5000... - Page 7 Wait until the Danger of explosion if not observed. machine has come to a complete standstill. ► Always disconnect the compressed air supply before changing tools, cleaning or performing maintenance work in order to avoid unintentional starting of the machine. AirMAB 5000...
- Page 8 Observe the following instructions to avoid property to damage: ► Only use the prescribed air quality, air quantity and operating pressures for compressed air supply (see section Preparing). ► Always carry the machine by the handle. AirMAB 5000...
-
Page 9: Components / Delivery Contents
Magnetic core drilling machine Pump bottle Gloves for protection against for cutting oil/drilling emulsion injuries ZAK075 and ZAK100 ejector pin Transport case KEYLESS quick-change drill chuck system 19 mm Weldon (3/4") Safety chain MK2 ejector pin AirMAB 5000... -
Page 10: Before Using For The First Time
(B) supplied. ► Check the safety chain for proper function before every use. A dam- aged safety chain must not be used. Replace a damaged safety chain immediately. AirMAB 5000... - Page 11 NOTE The substrate must satisfy the following ► BDS offers a range of accessories conditions in order to achieve sufficient with special clamping devices for magnetic clamping force: tubes and non-magnetic materials.
- Page 12 Removing the tool ‹ Insert the ejector pin (C) into the ejector pin holder of the spindle taper MK2 (3). Lever out the tool with the ejector ‹ pin (C) or loosen the tool by tapping against the ejector pin. AirMAB 5000...
- Page 13 (A) by pushing up the ► outside sleeve and pull the tool down Air consumption of the motor is out of the chuck. 1000 l/min. The motor performance is reduced when the air supply is decreased! AirMAB 5000...
-
Page 14: Use
Turn the motor switch (10) to the OFF ► Use the pump bottle for cutting oil/ position to deactivate the motor. drilling emulsion (21) with BDS 5000 high-performance cutting oil supplied WARNING for the machine. Risk of injury from motor starting ►... -
Page 15: Eliminating Blockages
Risk of injury from motor starting unintentionally! Pay attention to the following safety notes to avoid danger from motor starting unintentionally: ► To completely stop the motor: Move the motor switch to the OFF position. Disconnect the compressed air sup- ply. AirMAB 5000... -
Page 16: Cleaning
‹ Remove the inserted tool. Should you have any questions on cus- ‹ tomer service/service, please contact BDS. Remove swarf and coolant residues. We will be happy to give you the address of ‹ Clean the tool and the tool holder on your nearest service partner. -
Page 17: Storage
Supply lubrication No lubrication or not suffi- Tools wear excessively/are (e.g.,:use pump bottle for cut- damaged. ciently greased. ting oil/drilling emulsion (21)). NOTE ► If you cannot resolve the problem with the steps described above, please contact customer service. AirMAB 5000... -
Page 18: Technical Data
Technical data Technical data Model AirMAB 5000 Unit Dimensions 165 x 322 x 345-535 (L x W x H) Magnetic foot (L x W x H) 90 x 190 x 60 Approx. net weight. 17.5 Motor power Nominal torque Air consumption... -
Page 19: Ec Declaration Of Conformity
EC Declaration of Conformity EC Declaration of Conformity Name/address of the manufacturer: BDS Maschinen GmbH Martinstraße 108 D-41063 Mönchengladbach We hereby declare that the product Model: Magnetic core drilling machine Type AirMAB 5000 conforms to the following relevant regulations: ■...
