- Page 1 Industrial PC PPC-CM4-070-D PN: CS10600RA4070P-D Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
Contents 1. PPC-CM4-070-D 1.1. Product Overview 1.2. Ordering Options ® 1.2.1. Pi CM4 Module 1.2.2. Operating System 1.2.3. Optional Features 1.3. 7 inch CM4 Products Comparision 1.4. Specifications 1.5. Power Input 1.6. Touch Screen 1.7. Connectivity 1.7.1. RS232/RS485/CAN 1.7.2. GPIO Port 1.7.3. -
Page 3: Ppc-Cm4-070-D

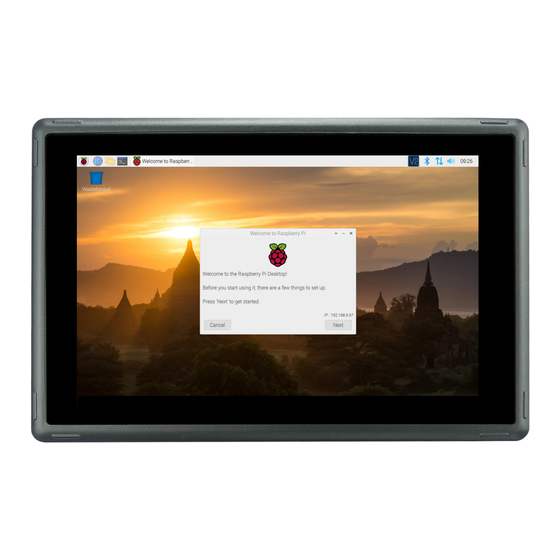

PPC-CM4-070-D PPC-CM4-070-D Front View Rear View Chipsee Page 3 of 28... - Page 4 PPC-CM4-070-D Side View 1 Side View 2 Chipsee Page 4 of 28...
-
Page 5: Product Overview
Installation on an industrial cabinet • Integration with the existing equipment ® The PPC-CM4-070-D industrial Pi PC is based around the powerful Raspberry Pi Compute ® Module 4, powered by the Quad Cortex -A72 processor with a processor speed of 1.5GHz. Chipsee... -
Page 6: Ordering Options
® The PPC-CM4-070-D industrial Pi PC does not include the CM4 Raspberry Pi module by default. If you would like to purchase it with a CM4, you can select it at the Chipsee store during the ordering process. Operating System This product comes with a pre-installed Debian OS. - Page 7 PPC-CM4-070-D 7 inch CM4 Products Comparision Product EPC/PPC-CM4-070 PPC-CM4-070-D 1 x LAN 2 x LAN USB-A 2 x USB 2.0 2 x USB 3.0 8 x Optical Isolated 6 x Raspberry Pi CPU GPIO (Compatible with Pi GPIO Software GPIO...
-
Page 8: Specifications
PPC-CM4-070-D Specifications Specifications The PPC-CM4-070-D industrial Pi PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below. PPC-CM4-070-D ® Raspberry Pi CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz... - Page 9 The default product without the CM4 does not include a Wi-Fi/BT module. You can include a CM4 that has the Wi-Fi/BT module at the Chipsee store during the ordering process. Chipsee designed one TF card slot for CM4 Lite version which has no eMMC to boot OS. Chipsee...
-
Page 10: Power Input
Power Input Power Input The PPC-CM4-070-D industrial Pi PC can be powered by a wide range of input voltages: From 9V to 36V DC. There are two types of power input connectors. One is a 3 Pin, 3.81mm screw terminal connector, and the other is a 2.1mm DC input head. As shown in the figure below. -
Page 11: Touch Screen
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the PPC-CM4-070-D Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. -
Page 12: Connectivity
Connectivity Connectivity There are many connectivity options available on the PPC-CM4-070-D industrial Pi PC. It has 2 x USB 3.0 Host, 1 x USB Type-C OTG, 2 x Giga LAN (RJ45) Ethernet connector supporting up to 1 Gbps, and 4 x UART and 1 x CAN terminals (RS232/RS485/CAN). -
Page 13: Gpio Port
System +5V Power Output, No more than 1A Current output Table 251 Connectivity Section GPIO Port The PPC-CM4-070-D industrial Pi PC has a 10 Pin 3.81mm GPIO Connector, as shown in the figure below. The table below gives details about the definition of every Pin. ... - Page 14 PPC-CM4-070-D GPIO Port Isolated GPIO reduced schematic GPIO Connector GPIO Connector Pin Definition: Pin Number Definition Description Pin 10 VDD_ISO Isolated Power +5V ~ +24V Input Pin 9 GND_ISO Isolated Ground Pin 8 OUT1 Isolated Output 1 Pin 7 OUT2...
- Page 15 Isolated Input 4 Table 252 GPIO Connector Pin-out The PPC-CM4-070-D also supports GPIO routed from the Raspberry Pi CM4 CPU directly, if you choose to use the 6 channel CPU GPIO, instead of 8 channel optical isolated GPIO, you can take advantage of the community software libraries of Pi GPIO. If you choose to use CPU GPIO, you won’t be able to use the 8 channel optical isolated GPIO.
-
Page 16: Usb Connectors
PPC-CM4-070-D USB Connectors CPU GPIO Reduced Schematic USB Connectors There are 2 x USB 3.0 Host, 1 x USB Type-C OTG onboard, as shown in the figure below. USB HOST Connectors Attention 1. These two USB host connectors can drive 500mA for each channel at most. -
Page 17: Lan Connectors
PPC-CM4-070-D LAN Connectors USB Type-C OTG Connector Warning Be careful not to touch surrounding electronic components accidentally while plugging in USB devices into the embedded Industrial PC version. Remember to unplug the Type-C cable after flashing OS, otherwise the USB hosts won’t work. -
Page 18: Wifi & Bt Module
The default PPC-CM4-070-D without the CM4 does not include a Wi-Fi/BT module. If you include a CM4 that has the Wi-Fi/BT module, the product will have Wi-Fi/BT feature. The enclosed (PPC-CM4-070-D) variant of the product also includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below. - Page 19 PPC-CM4-070-D 3G/4G/LTE Module SIM Card Direction Figure 920: 3G/4G/LTE Module Figure 921: SIM Card Holder and 3G/4G/LTE Antenna Attention The product does not come shipped with the 3G/4G/LTE module by default. If you need to use 3G/4G/LTE, you can contact us when placing an order, we can install the necessary hardware for you.
-
Page 20: Zigbee Module
The PPC-CM4-070-D industrial Pi PC supports an onboard Zigbee module. The Zigbee controller is TI CC2531, and the Raspberry Pi forum supports it. For PPC-CM4-070-D, there is a connector on the backside of the case that you can use to connect the external Zigbee antenna, as described in the figure below. -
Page 21: Camera Connector
The product does not come with the Zigbee module by default. Camera Connector The PPC-CM4-070-D industrial Pi PC has a 15 Pin Camera Connector, as shown in the figure below. The camera signals come from CAM1. The table below gives details about the definition of every Pin. - Page 22 Attention The camera connector is supported but not mounted by default. It’s available on the PCB but not exposed on the case, please contact us when placing an order if you need to use camera on the PPC-CM4-070-D. Chipsee Page 22 of 28...
-
Page 23: Tf Card Slot
PPC-CM4-070-D TF Card Slot TF Card Slot The PPC-CM4-070-D industrial Pi PC features 1 x TF Card (micro SD) slot. A slot can address up to 128GB of memory. TF (micro SD) Card Slot Attention The SD is used only for the Lite version of Compute Module 4 that has no internal eMMC, it can be used to boot system. -
Page 24: Audio Connectors
PPC-CM4-070-D Audio Connectors Audio Connectors The PPC-CM4-070-D industrial Pi PC features some audio peripherals. It has 1 x 3.5mm audio output jack. Also, the PPC-CM4-070-D industrial Pi PC has a miniature 2W internal speaker for audio reproduction, as well as a small buzzer for alarm/notification sounds. -
Page 25: Prog Button
PPC-CM4-070-D PROG Button PROG Button The PPC-CM4-070-D industrial Pi PC has one button for entering usb download mode, as shown in the figure below. When booting with the button being pressed, the Raspberry Pi will boot from the USB connector. You can use this feature to download the OS software to the internal eMMC. -
Page 26: Mounting Procedure
PPC-CM4-070-D Mounting Procedure Mounting Procedure The PPC-CM4-070-D industrial Pi PC can be mounted with 4 x M4 (6mm) screws using the VESA (100x100mm or 75x75mm) mount. The PPC-CM4-070-D industrial Pi PC can be mounted with panel mount method, enabling simplified installation onto any standard mounting fixture. -
Page 27: Mechanical Specifications
For PPC-CM4-070-D, the outer mechanical dimensions are 188.05 x 123.11 x 33.20mm (W x L x H). Figure 923: PPC-CM4-070-D Technical Drawing 3D Model PPC-CM4-070-D 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc. -
Page 28: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
