Trigger
Displays the trigger control parts on the image control
section.
By clicking the trigger button, you can control various
applications manually. (See "Controlling the
Application Manually" on page 13.)
User access right Level 3 or Level 4 is required for this
function.
Setting
Displays the Administrator menu. (See "Configuration
of Administrator Menu Page" on page 15.)
User access right Level 4 is required for this function.
Home
Displays the Welcome page.

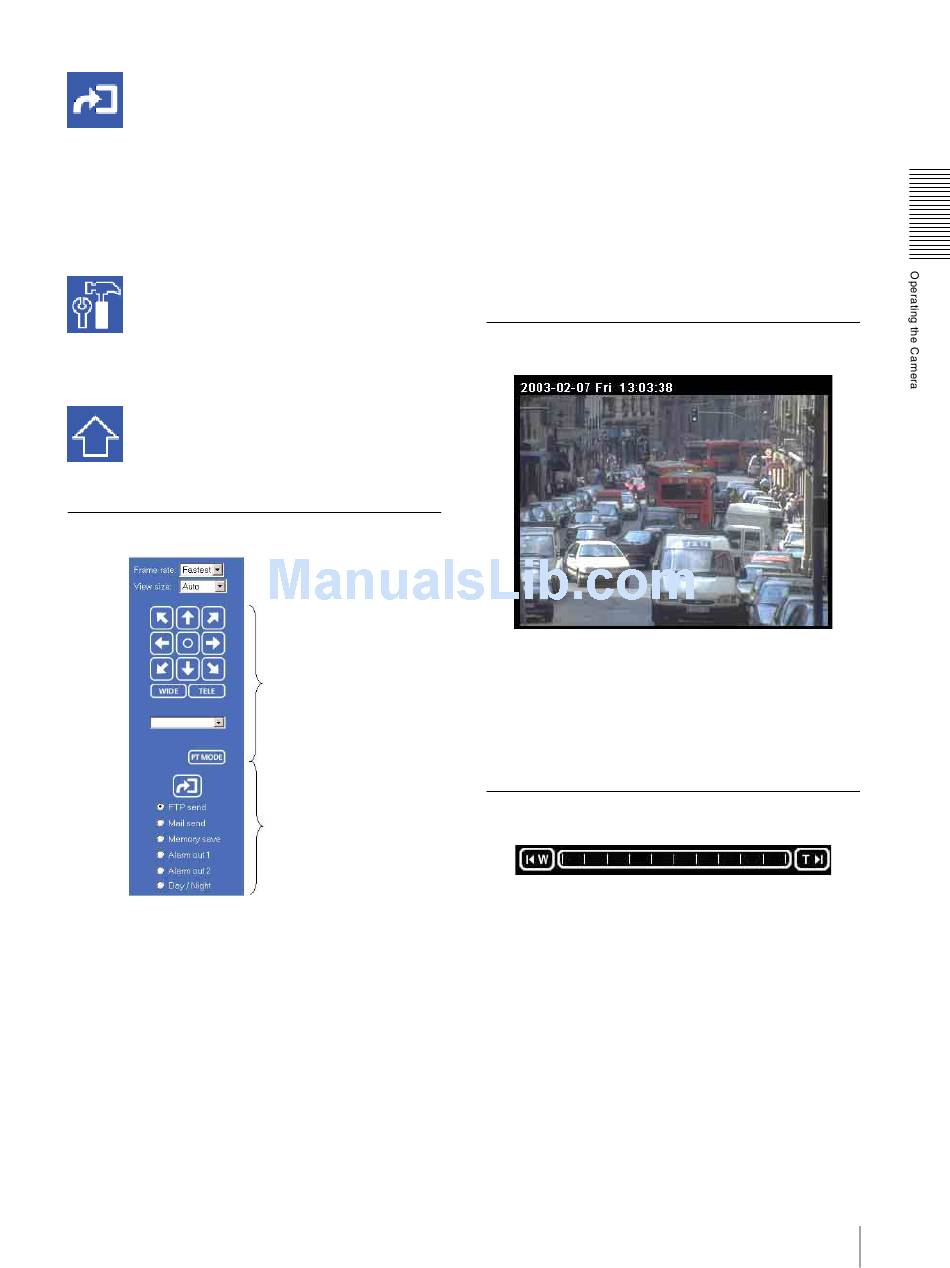

Image Control Section

Frame rate
Selects the frame rate to transmit images.
See "Selecting the frame rate" on page 10.
View size
Selects the image size to be displayed.
See "Selecting the view size" on page 10.
Camera control parts
Trigger control parts
Camera control parts
These parts are displayed when you click Control on the
menu section. You can operate the camera using these
parts.
See "Operating the Camera from the Image Control
Section" on page 10.
Trigger control parts
These parts are displayed when you click Trigger on the
menu section. You can output a trigger using these parts.
See "Controlling the Application Manually" on page 13.

Monitor Image Section

The image shot by the camera is shown here.
Click Control on the menu section to allow panning,
tilting and zooming of the camera from the monitor
image.
See "Operating the Camera from the Monitor Image" on
page 12.

Zoom Bar

The zoom bar is displayed when you click Control on
the menu section. You can operate the optical zoom
using the zoom bar.
See "Zooming Using the Zoom Bar" on page 13.
Configuration of Main Viewer Page
