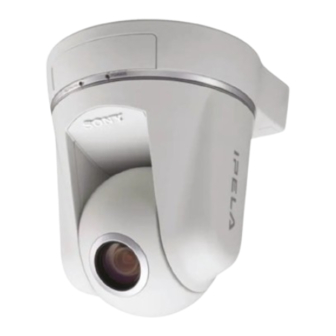

Sony SNC-RZ25 Installation And Operation Instructions Manual
Outdoor and indoor recessed dome housings
Hide thumbs
Also See for SNC-RZ25:
- Catalog (48 pages) ,
- Installation and operation instructions manual (18 pages)
Advertisement
Quick Links
UNI-OFL7C2
Outdoor and Indoor Recessed Dome Housings
Installation and Operation Instructions for the following model:
UNIOFL7C2
Note: AC 24V power supply for the camera and the heater/blower is an installer/reseller provided item.
Please refer to Camera Manual for power consumption details.
Note: Please note that to achieve the increased depth with the aspheric design for optimal camera
lens to capsule orientation, the capsule is slightly angled around the highest section.
This creates a "line', visible to the naked eye, around the upper most section of the capsule.
This "line"serves as the geometric center line used to insure proper camera placement. It is
not typically seen by the camera. However, Sony RZ series PTZ cameras are able to tilt up
above the horizon to 25°, this wide range of tilt motion at a wide angle view may cause this line
to be captured in the image.
Mounting instructions for:
SNC-RZ25
SNC-RZ30
SNC-RZ50
SNC-RX530
SNC-RX550
SNC-RX570
SNC-RH124
SNC-RS44
SNC-RS46
Quick Reference:
SNC-RZ25N............................Go to Steps 3-5
SNC-RZ30N............................Go to Steps 6-8
SNC-RZ50N............................Go to Steps 9-11
SNC-RX Series........................Go to Steps 12-18
SNC-RH/RS.............................Go to Steps 19-26
Outdoor Recessed Housing, clear dome, 24Vac input, Heater/ Blower
Camera Installation Steps
81-IN6525
10/14/2009
Advertisement
Related Manuals for Sony SNC-RZ25
Summary of Contents for Sony SNC-RZ25
- Page 1 This “line”serves as the geometric center line used to insure proper camera placement. It is not typically seen by the camera. However, Sony RZ series PTZ cameras are able to tilt up above the horizon to 25°, this wide range of tilt motion at a wide angle view may cause this line to be captured in the image.
- Page 2 These Installation and Operating Instructions. support structure and falling, with resultant damages or injury to anyone or anything struck by the falling unit. SERVICE If technical support or service is needed, contact Sony at the following number: TECHNICAL SUPPORT 8:15AM to 7:30PM (Eastern Time)
-
Page 3: Contents Of Box
Contents of Box Contents of Box Details (1) Spacer Packet 2” ½” 1” 200mm 25mm 50mm (1) Spacer Packet (4) M3 x 6mm Machine Screw (4) M3 lock washers (1) 1/4 x 20 Bolt (1) 1/4 flat washer (1) 1/4 lock washer (3) 8 x 32 x 3/8"... -
Page 4: Electrical Specifications
Electrical Specifications UNI-OFL7C2 UNI-OFL7T2 Power 24VAC, Class 2 Only (OUTDOOR ONLY): UNI-OFL7C2 & UNI-OFL7T2 26 Watts at 24 VAC (Heater and Blower) Approximately 25 Watts at 24 VAC (Camera)* *Refer to applicable camera specs for price consumption Tools Required: .100" Flat Head Screwdriver Phillips Head Screwdriver (ONLY AL AIRE LIBRE): UNI-ONL7C2 y UNI-ONL7T2... - Page 5 SNCRZ25 SNCRZ25 MOUNTING HOLES Remove the quick release plate from the Mount the camera to the plate using the packet assembly appropriate pattern and hardware. • Quite la placa rápida del lanzamiento de la cubierta • Monte la cámara fotográfica a la placa usando el montaje de paquete.
- Page 6 SNCRZ30 SNCRZ30 SNC RZ30 MOUNTING HOLES Remove the quick release plate from the Mount the camera to the plate using the housing. appropriate pattern. • Monte la cámara fotográfica a la placa usando el • Quite la placa rápida del lanzamiento de la cubierta. patrón apropiado.
- Page 7 SNCRZ50 SNCRZ50 SNC RZ50 MOUNTING HOLES Remove the quick release plate from the Mount the camera to the plate using the housing. appropriate pattern. • Monte la cámara fotográfica a la placa usando el • Quite la placa rápida del lanzamiento de la cubierta. patrón apropiado.
- Page 8 SNCRX550 Use wire cutter to cup off top section of PCB clips • Utilice el cortador de alambre para ahuecar de la sección superior de los clips del PWB • Utilisez le coupeur de fil pour mettre en forme de tasse outre de la section supérieure des agrafes de carte •...
- Page 9 SNCRX550 SNCRX550 SNC RX550 MOUNTING HOLES Remove the quick release plate from the Mount the camera to the plate using the packet. appropriate pattern. • Monte la cámara fotográfica a la placa usando el • Quite la placa del lanzamiento rápido del paquete. patrón apropiado.
- Page 10 Camera Installation: SNC-RH124 / RS44 / RS46 SNC-RH124 SNC-RH124 SNC-RS44 SNC-RS44 SNC-RS46 SNC-RS46 Remove existing bracket to mount SNC-RH124 Leave four 1/2” spacers as shown. or the SNC-RS series cameras. • Retire el soporte existentes para organizar SNC-RH124 o la •...
- Page 11 • Attacchi il piatto del soffitto di SNC RH124„ ai distanziatori 1 (di 25mm) • Colleghi il controllo ed alimenti i legare alla base della macchina in alloggiamento fotografica, (vedi le istruzioni della macchina fotografica di Sony) SNC-RH124 SNC-RH124 SNC-RS44...
- Page 12 A box cutter or jigsaw can be used for Using the provided template, mark the cutting the circle. ceiling tile for the cutout. • • Un cortador o un rompecabezas de la caja se Con la plantilla proporcionada, cortar el azulejo del techo para el agujero.
- Page 13 Add the safety wire to the flex conduit or Connect the flex conduit to the housing. continue to the next step. • Agregue el alambre de seguridad al conducto de la • Conecte el conducto de la flexión con la flexión o continúe al paso siguiente.
- Page 14 24Vdc Power and Control Inputs (Outside of Housing) RJ45 Camera Power (+ 24 VDC) Refer to camera 24VAC Camera Power (- 24 VDC) Orange POWER product manuals RJ45 Camera Max 40 Watts regarding power Accessory Power (+ 24 VDC) Yellow Camera Orange consumption.
- Page 15 The beam angle may be adjusted on the beam angle may be adjusted on the bttom Hook the lanyard from the dome to the Secure the dome with screws already bottom of the unit. housing as shown. in the dome. o the unit.
-
Page 17: Materials Needed
How - to Clean a Dome Bubble To effectively clean your video surveillance dome bubble (acrylic or polycarbonate) from debris, follow these simple step-by-step instructions. Materials Needed • Clean, dry, pressurized air • Water • High quality soft paper towel •... - Page 18 This “line” serves as the geometric center line used to insure proper camera placement. It is not typically seen by the camera. However, Sony RZ series PTZ cameras are able to tilt up above the horizon to 25°, this wide range of tilt motion at a wide angle view may cause this line to be captured in the image.
- Page 19 Available Mounting Accessories UNI-WMB1 UNI-PBU1 UNI-CMA1 UNI-RMB1 UNI-PMA1 Aluminum Gooseneck Aluminum Existing Aluminum Corner Power Block Unit Parapet Mount Wall Mount Pole Mount Adaptor Mount Adaptor UNI-WMB1 UNI-PMA1 Wall Mount Pole Mount Mounting Accessories Needed: Mounting Accessories Needed: • UNI-WMB1 - Gooseneck UNI-WMB1 - Gooseneck Wall Mount Wall Mount Outdoor Pendant Housing...
