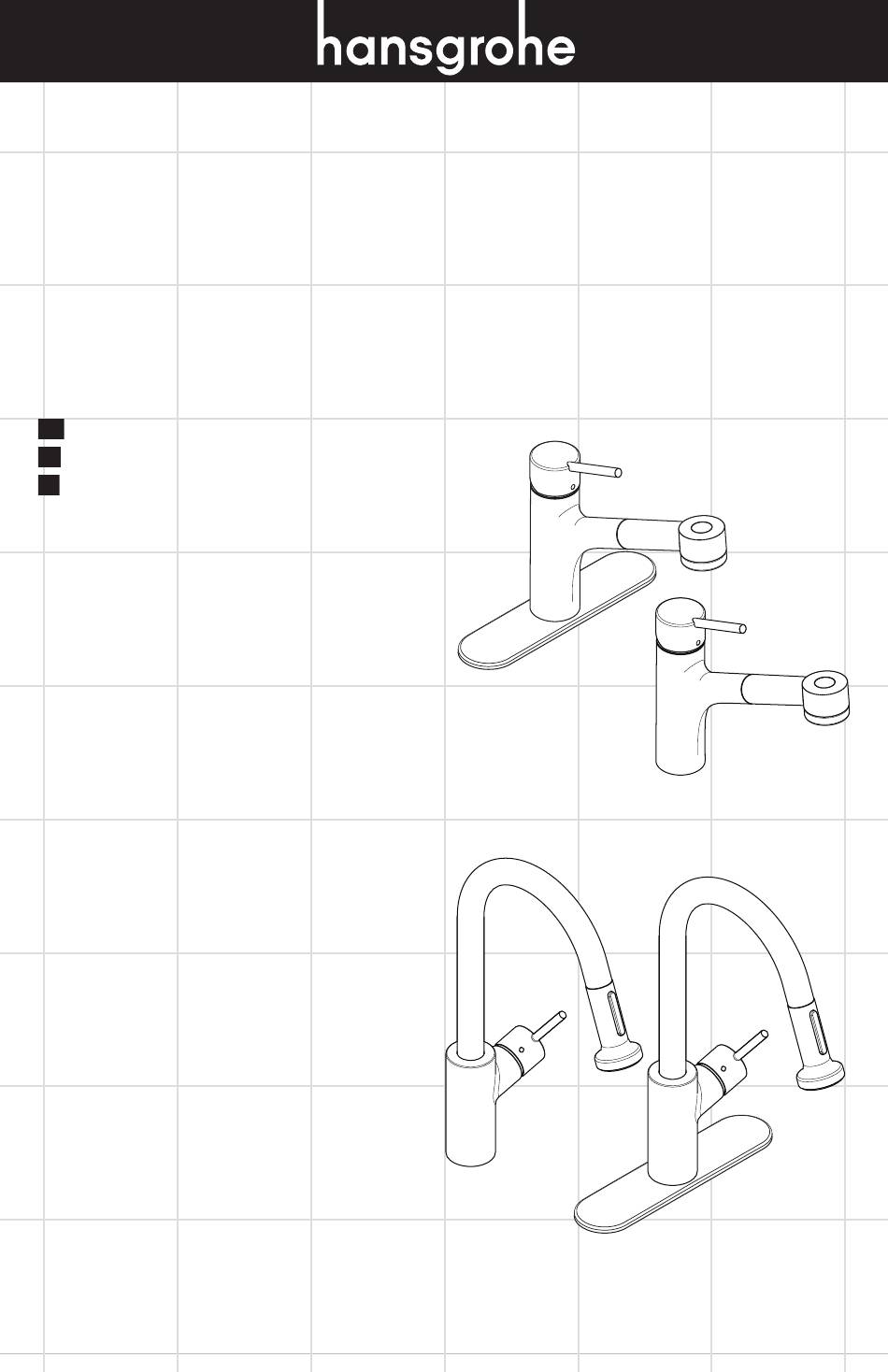

- Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Talis S 06462xx5 Talis S 04310xx5...
-
Page 2: Technical Information
English Français Technical Information Données techniques Recommended water pressure 15 - 75 PSI Pression d’eau recommandée 15 - 75 PSI Max. water pressure 145 PSI Pression d’eau maximum 145 PSI Recommended hot water temp. 120° - 140° F* Température recommandée 120° - 140° F* Max. hot water temp 176°F* d'eau chaude Flow rate 1.5 GPM Température maximum d'eau chaude 176°F* Hole size in mounting surface 1½" Capacité nominale 1.5 GPM Max. depth of mounting surface 2⅜" Dimension du trou dans la surface de montage 1½ po Profondeur maximale de la surface 2⅜ po de montage *Please know and follow all applicable local plumbing * Vous devez connaître et respecter tous les codes de codes when setting the temperature on the water heater. plomberie locaux applicables pour le réglage de la température du chauffe-eau. -
Page 3: Datos Tecnicos
Español Datos tecnicos Tools Required / Outiles Utiles / Herramientas Útiles Presión recomendada en servicio 15 - 75 PSI Presión en servicio max. 145 PSI Temperatura recomendada del 120° - 140° F* agua caliente Temperatura del agua caliente max. 176°F* Caudal máximo 1.5 GPM Tamaño del orificio en la superficie de montaje 1½" 9 mm Profundidad máxima de la 2⅜" 16 mm superficie de montaje *Debe conocer y cumplir todos los códigos locales 4 mm aplicables para ajustar la temperatura del calentador de agua. Consideraciones para la instalación • Para obtener mejores resultados, la instalación debe estar a cargo de un plomero profesional... - Page 4 1⅛" 3⅛" 2⅛" 8¾" 5¼" 3¾" 2" 1⅜" 10¼" ⅜" 1⅜" 04310xx5 2" 1⅜" 10⅝" 8¾" ⅜" 06462xx5...
- Page 5 Install the Baseplate (optional) / L’installation de l’embase (en option) / Instalación de la placa de base (opcional) English Français Español Position the baseplate and gas- Placez l’embase et le joint sur la Ubique la placa de base y la ket over the holes in the mount- surface de montage. Installez le junta sobre los orificios de la ing surface. Install the mounting fixation. superficie de montaje. Instale pieces and collars. las piezas y collares de fijación. If the mounting surface does not Si la surface de montage a Si la superficie de montaje no have three holes, remove the seulement un trou, enlevez les tiene tres orificios, desatornille studs from the baseplate. clous de l’embase. los espárragos de la placa de base.
-
Page 6: Installation / Installation / Instalación
Installation / Installation / Instalación 06462xx5 only English Français Español Place the faucet and sealing ring Placez l'anneau d'étanchéite Coloque el oro de sellado y on the mounting surface. et le robinet sur la surface de el grifo sobre la superficie de montage. montaje. Install the plastic washer, fric- tion washer, metal washer, and Installez la rondelle de plastique, Instale la arandela plástica, la... - Page 7 English Français Español Tighten the mounting nut. Serrez l'écrou de montage et les Apriete la tuerca de fijación y los vis de serrage. tornillos. Tighten the screws. Connect the hot and cold supply Connectez les tuyaux d'arrivée Conecte las mangueras de sumi- hoses to the stops. d'eau chaude et d'eau froide aux nistro de agua caliente y fría a tuyau d'alimentation. las alimentaciones de la red. Use two wrenches. Servez-vous de Use dos llaves, Do not allow the deux clés, tel como se illustra en supply hoses to qu'illustre dans le...
- Page 8 CLICK! English Français Español Connect the handspray hose to Raccordez le tuyau de la Conecte la manguera de rocia- the connection hose. douchette au tuyau d'arrivée de dor de mano a la manguera de la douchette. suministro. Install the hose weight on the Installez le contrepoids sur le Instale el contrapeso. handshower side of the hose, tuyau.
- Page 9 English Français Español Test the handspray hose. If it Tirez sur la douchette. Elle Tire del rociador de mano. Debe does not retract smoothly, reposi- devrait coulisser facilement et se moverse con facilidad y retraerse tion the weight. rétracter sans à-coups. Modifiez suavemente. Reposicione el con- la position du contrepoids au trapeso según sea necesario. besoin. Remove the sprayhead. Retirez la douchette. Retire la ducha.
- Page 10 Do not over- tighten! Ne serrez pas avec une force excessive! No apriete en exceso. > 2 min. English Français Español Remove the hose filter. Retirez le filtre. Retire el filtro. Flush the faucet for at least two Rincez le robinet pour un mini- Enjuague el grifo durante un minutes.
- Page 11 Set the High Temperature Limit Stop (optional) / Réglage de la butée limite d’eau chaude (en option) / Ajuste el tope de límite de alta temperatura (opcional) 140°F 50° F 44 PSI...
- Page 12 Replacement Parts / Pièces détachées / Repuestos 04310xx1 95562xx0 95560xx0 97735000 96338000 95498xx0 95140000 37x2 97209000 88658xx1 92730000 96316001 97523000 41x2 13913xx0 97350000 95376000 95561000 95049000 96016000 88624000 98551000 xx = Colors / Couleurs / Acabados 00 = Chrome 82 = Steel Optik...
- Page 13 Replacement Parts / Pièces détachées / Repuestos 32892xx0 96338000 97995xx0 97996000 95140000 92730000 97735000 95008000 97999xx1 94074000 95376000 96316001 36 x 2.5 95561000 97523000 95049000 98551000 88624000 96016000 = Finishes / Couleurs / Acabados chrome steel optik...
- Page 14 User Instructions / Instructions de service / Manejo fermé ouvert cerrar abierto cold chaud froid caliente frío...
- Page 15 User Instructions / Instructions de service / Manejo ouvert fermé abierto cerrar cold froid chaud frío caliente...
- Page 16 Cleaning / Nettoyage / Limpieza Maintenance / Entretien / Mantenimiento...
- Page 17 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it. For best results: • Prevent the buildup of mineral scale and /or soap residue by cleaning your Hansgrohe product(s) when needed. • Select a cleaning agent specifically intended for the type of product. • Do not use these types of cleaners as they will cause damage to your Hansgrohe product: Any cleaning agent containing hydrochloric acid, formic acid, lye, or acetic acid. Abrasive cleaning powders, pads, or brushes. Steam cleaners. “No rinse” cleaning agents. • Always follow the instructions provided by the manufacturer of the cleaning agent. • Do not mix cleaning agents, unless directed by the manufacturer. • Do not spray cleaners directly onto the product as drops could enter openings and gaps and cause damage. When using spray cleaners, spray the cleaner onto a soft cloth or sponge. • Always rinse your Hansgrohe product thoroughly with clear water and polish dry with a soft cloth after cleaning. Important • Residue from soaps and shampoos can cause damage. Rinse the product with clean water after each use.
- Page 18 Importante • Los residuos de jabón y champú pueden causar daños. Enjuague el producto con agua limpia después de cada uso. • Los residuos de limpiadores para lavatorios, bañeras o azulejos pueden causar daño a los grifos y accesorios. Enjuague inmediatamente cualquier derrame que haya sobre el producto de Hansgrohe. • Los daños que resulten de un cuidado inadecuado o uso de agentes de limpieza inadecua- dos no están cubiertos por la garantía • Si se daña un componente del producto, reemplácelo, ya que existe riesgo de lesión. Conseil de nettoyage pour les produits Hansgrohe Les robinets pour les salles de bains et les cuisines modernes ainsi que les produits récents pour les douches se com- posent de matériaux différents afin de satisfaire aux besoins du marché en termes de conception et de fonctionnalité. Afin d'éviter d'endommager le produit, il est nécessaire d'en prendre soin. Pour de meilleurs résultats : • Empêchez l'accumulation de tarte et/ou de résidu de savon en nettoyant votre produit Hansgrohe lorsque c'est nécessaire.
-
Page 19: Limited Consumer Warranty
Limited Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products that are purchased by a consumer in the United States or Canada after March 1, 1996, and installed in either in the United States or in Canada. WHO IS COVERED BY THE WARRANTY This warranty extends to the original purchaser only. This warranty is non-transferable. WHAT IS COVERED BY THE WARRANTY The warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material or workmanship as follows: Hansgrohe will replace at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If Hansgrohe is unable to provide a replacement and repair is not practical or cannot be made in timely fashion, Hansgrohe may elect to refund the purchase price in exchange for the return of the product. LENGTH OF WARRANTY Replacement or repaired parts of products will be covered for the term of this warranty, as stated in the following two sentences. If you are a consumer who purchased the product for use primarily for personal, family or household purposes, this warranty extends for as long as you own the product and the home in which the product is originally installed. If you purchased the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe & Commercial products, and (ii) for 5 years, with respect to Axor products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: A. Conditions, malfunctions or damage not resulting from defects in material or workmanship. - Page 20 EXCLUSIONS AND LIMITATIONS REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO CREATE FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT.
