First Use
Before applying power to the router, connect the components that you required for your
applications. You cannot operate the router without connected antenna, inserted SIM card,
nor connected power supply.
If you do not have connected main antenna during operation of the router, the router can
be damaged!
1. Antenna

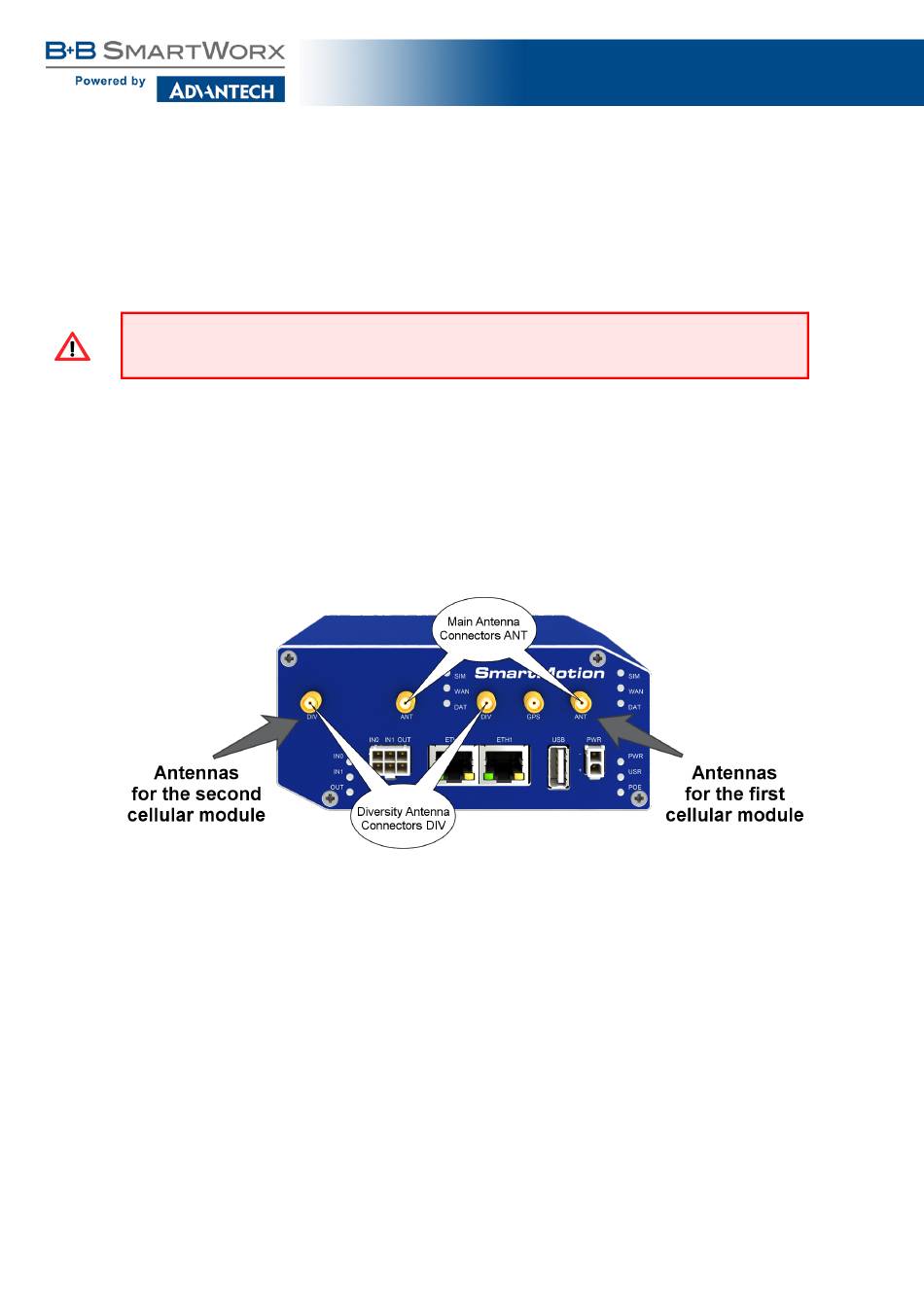

Use a SMA connector to connect the antennas to the router. The main antenna is con-
nected to the router by screwing on the ANT connector (see the figure below). A second di-
versity antenna can also be connected to the DIV connector to improve performance. Three
antenna connectors on the right side of the front panel (ANT, DIV and GPS) are intended for
connecting the antennas to the first module. There are also two antenna connectors for the
second module on the left side (ANT and DIV ).
2. SIM card
The SIM card readers, for 3 V and 1.8 V SIM cards, are located on the rear panel of the
router. If you intend to use this device to communicate over a cellular network, please place
an activated data-provisioned SIM card with an unblocked PIN into the SIM card reader. Push
your SIM card into the SIM1, SIM2, SIM3 or SIM4 slot until it clicks in place.
