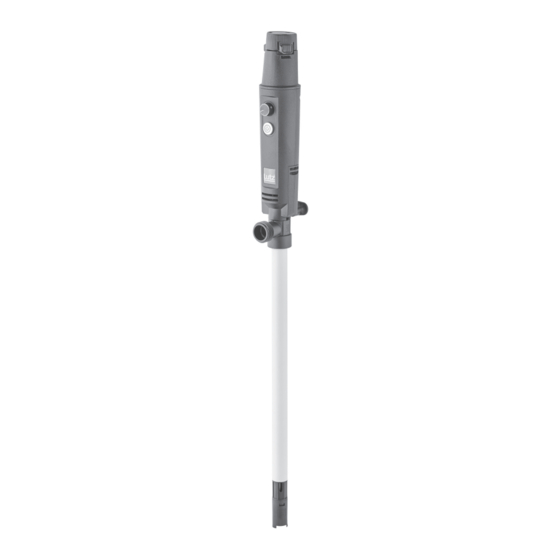

Pump tubes for series b1 and b2

Advertisement

Quick Links

en
Translation of the
original instructions
PUMP TUBES
for series B1 and B2
Type
B1 PP 25-L SL
B2 PP 32-R SL
B2 PP 32-L SL
B2 SS 28-R SL
B2 PVDF 32-R SL
Please read this manual before starting up.
To be retained for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B1 PP 25-L SL and is the answer not in the manual?

Questions and answers

Summary of Contents for Lutz B1 PP 25-L SL

  • Page 1 Translation of the original instructions PUMP TUBES for series B1 and B2 Type B1 PP 25-L SL B2 PP 32-R SL B2 PP 32-L SL B2 SS 28-R SL B2 PVDF 32-R SL Please read this manual before starting up.
  • Page 3: Table Of Contents

    Table of Contents 1. Concerning this manual ........................4 1.1 Terms ............................4 1.2 Target groups ..........................4 1.3 Associated applicable documents ....................4 1.4 Warnings and symbols ....................... 5 1.5 Latest state ..........................5 1.6 Copyright ..........................5 2. Safety ..............................6 2.1 General safety information ......................
  • Page 4: Concerning This Manual

    1. Concerning this manual This manual • is part of this product • is valid for all mentioned series • describes the safe and proper use in all operating stages 1.1 Terms User: Single person or organisation who is using the products e.g. customer, user, assistant 1.2 Target groups Target group Task...
  • Page 5: Warnings And Symbols

    Information / Recommendation ► What to do → Cross reference Requirement Tab. 4: Symbols and meaning 1.5 Latest state Please find the latest state of this operating instruction under www.lutz-pumpen.de. 1.6 Copyright The content of this operating instruction and the images contained in them are subject to the copyright protection of Lutz Pumpen GmbH.
  • Page 6: Safety

    2. Safety The manufacturer will not be held responsible for any damages resulting from non-compliance of the overall documentation, in particular for damages in case of non-compliance of the operating instructions. 2.1 General safety information Observe following regulations before accomplishing all activities. Product safety The pump is constructed in conformity with the state of the art and approved safety-related standards.
  • Page 7 Duties of the operator Safety-conscious working • Operate the pump only in a technically sound state, for its proper use, and conscious of safety and hazards taking into account these instructions. • Ensure observance and monitoring of: - Proper use - Statutory or other safety and accident prevention regulations - Safety provisions in handling hazardous substances - Valid standards and guidelines in the respective country of operation •...
  • Page 8: Proper Use

    2.2 Proper use A pump of series B1 or B2 comprises a motor and a pump tube to suit the particular application. The pump is only used to transfer pure, turbid, water-like, aggressive and non aggressive liquids. • Pump is not allowed to be operated in explosion hazard areas. • Do not use for pumping flammable liquids. •...
  • Page 9: Configuration And Function

    3. Confi guration and function 3.1 Marking Rating plate Fig. 1: Rating plate pump tube (example) 1 Pump type 2 Serial number of the pump 3 CE-Marking 4 UKCA-Marking 5 Year of construction of the pump (last two digits of the serial number e.g. -22 for 2022) 3.2 Confi guration An electric drum and container pump comprises a drive motor and a pump tube. Following diff erent versions are available: •...
  • Page 10: Function

    3.3 Function Pump tubes for series B1/B2 are designed to deliver pure, turbid, aggressive or non aggressive liquids. Check the compatibility of the pump tube for the medium in question with the aid of a resistance table and the table of materials (→ Annex, table 6). 4.
  • Page 11: Safe Use

    5.3 Safe use ► Do not subject the outrun piece to tension or pressure (→ Fig. 2). ► The bending moment M at the outlet must not exceed the following values: Maximum bending Pump material moment M Polypropylene (PP) 10 Nm Polyvinylidene fluoride (PVDF) 10 Nm Stainless steel (SS 1.4571) 30 Nm Tab.
  • Page 12: Operation

    6. Operation 3 All connections and fittings are properly tightened. 3 For safe operation of the pump, sufficient space and a safe stand must be available. NOTICE Damage of property as a result of dry running! ► Supervise pump tube. ► Ensure that the pump is pumping liquid. ► Sealless pump tubes may run dry 15 minutes only. 6.1 Taking out of operation WARNING Danger of injury and intoxication when handling hazardous liquids! ►...
  • Page 13: Maintenance And Servicing

    7. Maintenance and servicing WARNING Danger of injury and intoxication when handling hazardous liquids! ► Always wear protective equipment when working on the pump. ► Complete emptying of pump tube. 7.1 Observance ► Only use a non-leaking pump tube: If fluid escapes above the discharge nozzle at the pump tube, switch off the pump immediately and repair (→ Fig. 5).
  • Page 14: Repairs

    8. Repairs ► Repairs should only be made by the manufacturer or authorized Lutz dealers. ► Only use original Lutz Pumpen spare parts. If other spare parts are used, liability on the part of Lutz Pumpen is obsolete. 8.1 Sending the pump to the manufacturer 3 Pump pressureless 3 Pump completely emptied 3 Electrical connections separated; motor secured against reactivation 3 Pump cooled down ► Only return the pump to the manufacturer with an accurately completed document of compliance.
  • Page 15: Annex

    10. Annex PP 25-L SL PP 32-R SL PP 32-L SL SS 28-R SL PVDF 32-R SL Wetted parts PP, PVDF, PP, PVDF, PP, PVDF, Stainless steel PVDF, Hastelloy Hastelloy C, Hastelloy C, Hastelloy C, (1.4571), C, FPM, PTFE, PTFE, FPM, PTFE, FPM, PTFE, FPM, FPM, PTFE, ETFE ETFE...
  • Page 16 PP 25-L SL PP 32-R SL PP 32-L SL SS 28-R SL PVDF 32-R SL Motor B1 Battery 200 m Pas < 100 m Pas < 100 m Pas < 100 m Pas < 100 m Pas Motor B2 Battery 200 m Pas 400 m Pas 400 m Pas...
  • Page 18: Eu Declaration Of Conformity

    Manufacturer: Lutz Pumpen GmbH Erlenstraße 5-7 D-97877 Wertheim Product: Pump tubes for series B1 and B2 Types: B1 PP 25-L SL B2 PP 32-R SL B2 PP 32-L SL B2 SS 28-R SL B2 PVDF 32-R SL Relevant European Directives: Machinery Directive...
  • Page 19: Declaration Of Conformity

    UK legislation. Manufacturer: Lutz Pumpen GmbH Erlenstraße 5-7 D-97877 Wertheim Product: Pump tubes for series B1 and B2 Models: B1 PP 25-L SL B2 PP 32-R SL B2 PP 32-L SL B2 SS 28-R SL B2 PVDF 32-R SL UK Statutory Instruments (and their ammendments) The Supply of Machinery (Safety) Regulations 2008 (SI 2008 No.1597) Relevant standards:...
  • Page 20 Lutz Pumpen GmbH Erlenstraße 5-7 D-97877 Wertheim Tel.: (+49 93 42) 8 79-0 Fax: (+49 93 42) 87 94 04 E-Mail: info@lutz-pumpen.de w w w . l u t z - p u m p e n . d e Subject to technical changes. 11/2022 Order No. 0698-351 Printed in Germany...

This manual is also suitable for:

B2 pp 32-r slB2 pp 32-l slB2 ss 28-r slB2 pvdf 32-r sl
