Translation of the
en
original instructions

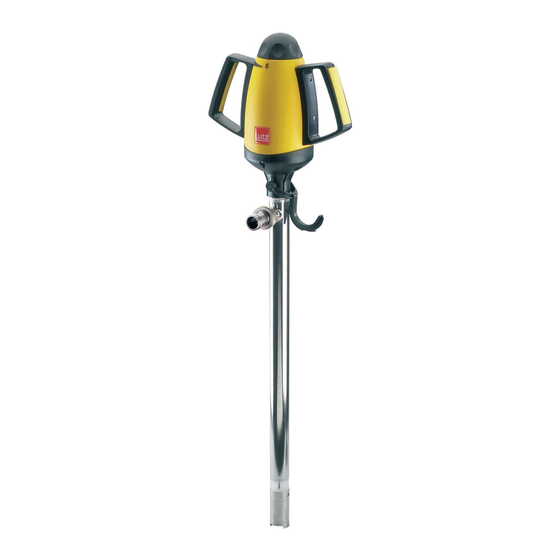

PUMP Lutz B2 Vario
Type
Lutz B2 Vario PP 32-SL
Lutz B2 Vario PVDF 32-SL
Lutz B2 Vario SS 28-SL
Please read this manual before starting up.
To be retained for future reference.
IP24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B2 Vario PP 32-SL and is the answer not in the manual?

Questions and answers

Related Manuals for Lutz B2 Vario PP 32-SL

Summary of Contents for Lutz B2 Vario PP 32-SL

  • Page 1 Translation of the original instructions PUMP Lutz B2 Vario Type Lutz B2 Vario PP 32-SL Lutz B2 Vario PVDF 32-SL Lutz B2 Vario SS 28-SL IP24 Please read this manual before starting up. To be retained for future reference.
  • Page 2 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7...

  • Page 3: Table Of Contents

    Table of Contents 1. Concerning this manual ........................4 1.1 Terms ............................4 1.2 Target groups ..........................4 1.3 Associated applicable documents ....................4 1.4 Warnings and symbols ....................... 4 1.5 Latest state ..........................4 1.6 Copyright ............................ 4 2. Safety ..............................5 2.1 General safety information ......................

  • Page 4: Concerning This Manual

    1.6 Copyright documents The content of this operating instruction and the im- ages contained in them are subject to the copyright Document Purpose protection of Lutz Pumpen GmbH. Supplemen- for additional delivered tary operating components instructions Tab. 2: Associated applicable documents and purpose...

  • Page 5: Safety

    2. Safety Modifications Unless the manufacturer has provided its consent in The manufacturer will not be held responsible for writing, the manufacturer is not liable for interven- any damages resulting from non-compliance of tions performed by the user (modifications) on the the overall documentation, in particular for dam- product, such as conversion, alteration, new design, ages in case of non-compliance of the operating etc. Modifications not agreed with the manufacturer...

  • Page 6: Proper Use

    2.2 Proper use • Ensure that personnel tasked with work on the pump have read and understood these instruc- The drum pump Lutz B2 Vario is a sealless, vertical tions and all associated applicable documents, centrifugal pump with axially acting rotor. The...

  • Page 7: Specific Danger

    3. Confi guration and function Prevention of obvious misapplication (examples) 3.1 Rating plate • Observe and comply with the operating limits of the pump in terms of temperature, pressure, delivery rate and speed (→ Appendix, table 7; contract data). • The power consumption of the pump increases with increasing density or viscosity of the liquid.

  • Page 8: Configuration

     Danger of injury due to tipping over of empty drums 1.5 m PVC hose à and containers! 1 Lutz nozzle, PP Ä ► The pump tube must always be positioned verti- 2 Hose clips 3/4" Å cally in the bunghole.

  • Page 9: Safe Use

    5.2 Safe use 6. Operation 3 All connections and fittings are properly DANGER tightened. Danger of death by electric shock or 3 For safe operation of the pump, sufficient explosion! space and a safe stand must be available. ► Do not immerse the pump deeper than the outrun piece (→ Fig. 1A). NOTICE ► It is not allowed to handle flammable liquids Damage of property as a result of dry running! (→ Fig. 1B).

  • Page 10: Maintenance And Servicing

    (acetone, thinner) must not be tomer service or a similarly qualified person in used to clean the pump housing. order to avoid hazards. ► Only use original Lutz Pumpen spare parts. If ► Remove the pump tube from the container care- other spare parts are used, liability on the part fully and allow the remaining liquid to flow back of Lutz Pumpen is obsolete.

  • Page 11: Annex

    10. Annex Pump Lutz B2 Vario Lutz B2 Vario Lutz B2 Vario PP 32-R-SL PVDF 32-R-SL SS 28-R-SL Immersion 500 mm 700 mm 1000 mm 500 mm 700 mm 1000 mm 500 mm 700 mm 1000 mm depth Flow rate,...
  • Page 12 Motor Lutz B2 Vario Lutz B2 Vario Lutz B2 Vario Lutz B2 Vario Lutz B2 Vario 220-240V 220-240V 100-110V 100-110V 110-120V 50Hz 60Hz 50Hz 60Hz 60Hz Voltage 220-240 V 220-240 V 100-110 V 100-110 V 110-120 V Frequency 50 Hz...
  • Page 13                          ...
  • Page 14                        ...
  • Page 15                        ...
  • Page 16 Ersatzteil-Liste Spare Part List Seite/page: 4 State of Art: 2018-09 Techn. Stand: 2018-09 Pump Lutz B2 Vario Pumpe Lutz B2 Vario 0336-050 0301-262 0336-077 0343-277 0343-354 0301-296 0336-139 0336-145 0336-171 0314-268 0336-173 0375-035 0375-036 0375-038 0375-039 0375-040 0002-015 0002-016 0002-029...
  • Page 17 Ersatzteil-Liste Spare Part List Seite/page: 5 State of Art: 2018-09 Techn. Stand: 2018-09 Pump Lutz B2 Vario Pumpe Lutz B2 Vario 0321-147 0102-228 0101-020 0102-229 0101-024 0102-230 0101-028 0102-213 1----0102-224 0102-225 . a- � o343-378 0343-384 � 0343-422 ©-------03 01-295...
  • Page 18 Ersatzteil-Liste Spare Part List Seite/page: 6 State of Art: 2018-09 Techn. Stand: 2018-09 Pump Lutz B2 Vario Pumpe Lutz B2 Vario � 0314-225 ®J--0343-424 � 0314-328 G) 0321-147 0102-242 0101-034 0102-243 0101-035 0102-244 0101-036 0102-213 t--�0102-224 0102-22 5 ij-- 0343-366 0343-365 �...

  • Page 19: Declaration Of Conformity

    EU Directives listed. Manufacturer: Lutz Pumpen GmbH Erlenstraße 5-7 D-97877 Wertheim Product: Pump Types: Lutz B2 Vario …..PP 32-R SL Lutz B2 Vario …..SS 28-R SL Lutz B2 Vario …..PVDF 32-R SL Relevant European Directives: Machinery Directive 2006/42/EC 2014/30/EU RoHS 2011/65/EU, 2015/863/EU...
  • Page 20 Lutz Pumpen GmbH Erlenstraße 5-7 D-97877 Wertheim Tel.: (+49 93 42) 8 79-0 Fax: (+49 93 42) 87 94 04 E-Mail: info@lutz-pumpen.de w w w . l u t z - p u m p e n . d e Subject to technical changes. 11/2022 Best.-Nr. 0697-451 Printed in Germany...

This manual is also suitable for:
