NetWay3012 for 12VDC IP Devices up to 30W:

1. Mount NetWay3012 in proximity to IP device utilizing mounting hole (Fig. 2, pg. 3). Use a proper fastener
and/or wall anchor when securing NetWay3012 to the wall.
2. Connect structured cable from port marked [PoE IN] on NetWay3012 to ports marked [OUT] of NetWay8,
NetWay8M, NetWay16, or NetWay16M (Fig. 2, pg. 3).
3. Connect structured cable from port marked [Data OUT] on NetWay3012 to the IP device (Fig. 2, pg. 3).
4. Connect 12VDC output from NetWay3012 terminals marked [+ 12VDC Output –] to the power input of the
IP device (Fig. 2, pg. 3). Polarity must be observed.
5. Power LED indicator will illuminate on NetWay3012 under normal conditions (Fig. 2, pg. 3).

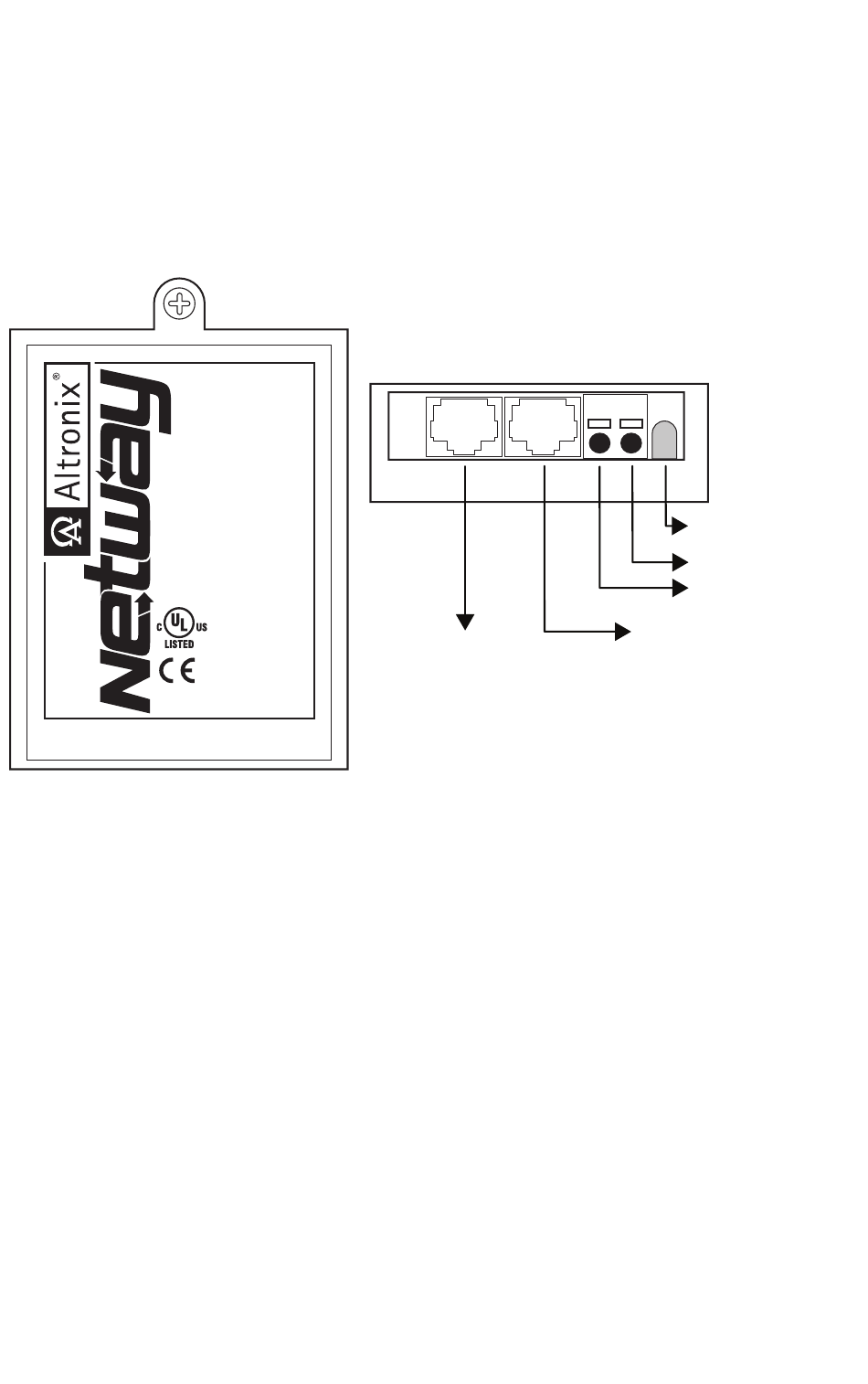

Fig. 2
Netway3012
Adapter
PoE IN
NetWay1512 / NetWay3012 Installation Guide
Brooklyn, NY, U.S.A.
I.T.E. 43KC
www.altronix.com
12VDC
Data OUT + Output ---
Structured Cable
from PoE+
Switch or Midspan
Power LED
--
12VDC Power
+
to Device
Structured Cable
from IP Device
