Altronix NetWay1512 Quick Start Manual

Altronix NetWay1512 and NetWay3012 adapters allow operation of non-PoE compliant fixed and/or PTZ IP cameras with
NetWay midspans.
NetWay1512:
• 12VDC/15W adapter for non-PoE compliant IP cameras.
• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
• CE approved.
NetWay1512/NetWay3012 is compatible with PoE midspans and switched that pass power via the spare pairs of the
network cable (Mode "B"). The unit is not intended to be connected to outside plant leads.
NetWay1512 for 12VDC IP cameras up to 15W:
1. Mount NetWay1512 in proximity to IP camera (Fig. 1, pg. 1). Affix one side of velcro (supplied) to NetWay1512
and place the second side of the velcro in the desired location.
2. Connect structured cable from port marked [IN] on NetWay1512 to any ports marked [OUT] of NetWay1/NetWay8/
NetWay8M/NetWay16 or NetWay16M (Fig. 1, pg. 1).
3. Connect structured cable from port marked [OUT] on NetWay1512 to the IP camera (Fig. 1, pg. 1).
4. Connect 12VDC output from NetWay1512 terminals marked [+ 12VDC --- ] to the power input of the
IP camera (Fig. 1, pg. 1). Polarity must be observed.
5. Power LED indicator will illuminate on NetWay1512 under normal conditions (Fig. 1, pg. 1).
NetWay3012 for 12VDC IP fixed or PTZ cameras up to 30W:
1. Mount NetWay3012 in proximity to IP camera utilizing mounting hole (Fig. 2, pg. 1). Use a proper fastener and/or
wall anchor when securing NetWay3012 to the wall.
2. Connect structured cable from port marked [IN] on NetWay3012 to ports marked [OUT] of NetWay8/NetWay8M/
NetWay16 or NetWay16M (Fig. 2, pg. 1).
3. Connect structured cable from port marked [OUT] on NetWay3012 to the IP fixed or PTZ camera (Fig. 2, pg. 1).
4. Connect 12VDC output from NetWay3012 terminals marked [+ 12VDC --- ] to the power input of the
IP camera (Fig. 2, pg. 1). Polarity must be observed.
5. Power LED indicator will illuminate on NetWay3012 under normal conditions (Fig. 2, pg. 1).

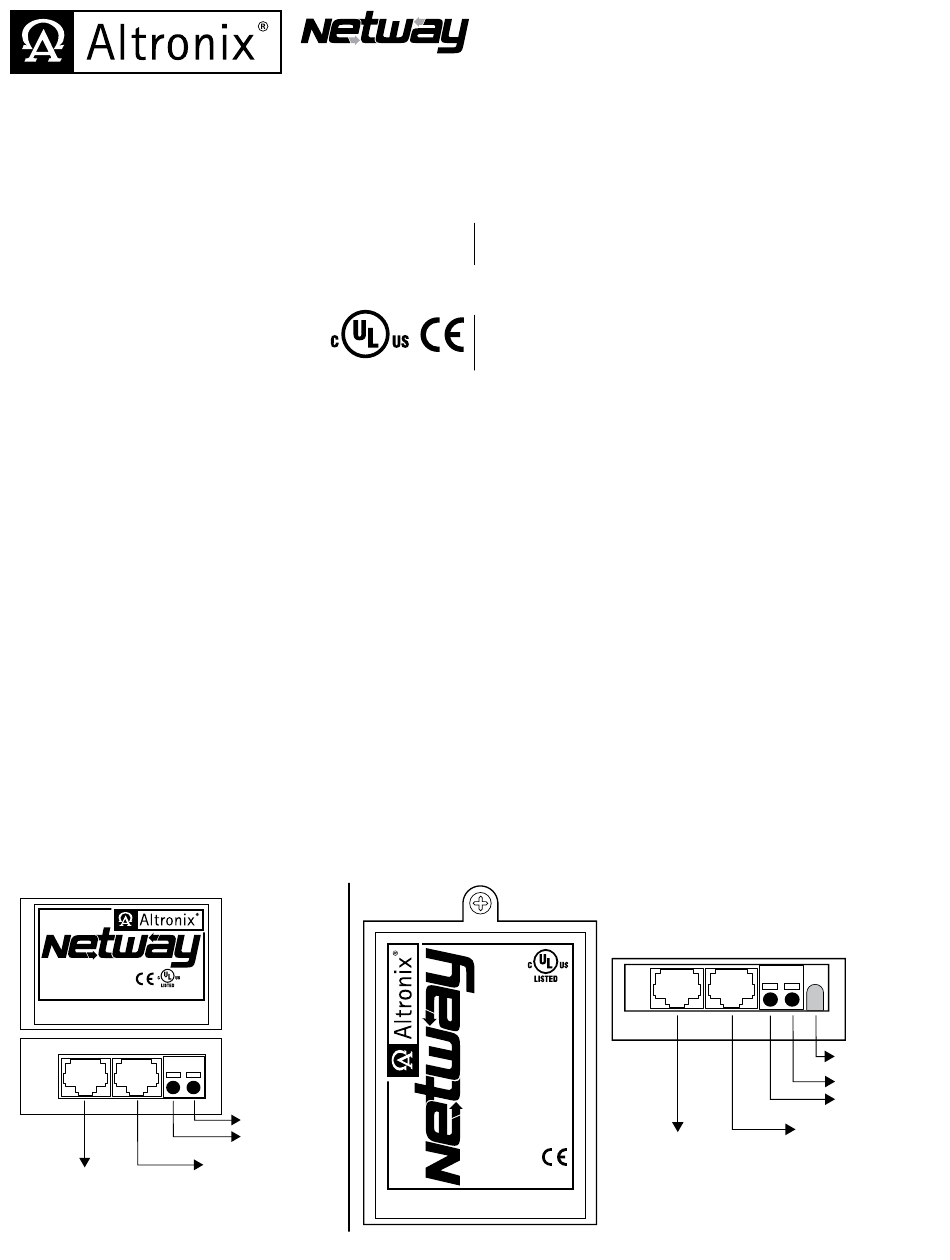

Fig.1
Netway1512
I.T.E.
Adapter
43KC
www.altronix.com
12VDC
OUT + Output ---
IN
Structured Cable from
NetWay1, NetWay8,
NetWay8M, NetWay16
or NetWay16M
NetWay1512/NetWay3012
NetWay1512 / NetWay3012 - Adapters
Common Specifica tions:
Installation Instructions:
Fig. 2
12VDC
--
Power to
+
Camera
Structured Cable
from IP Camera
®
Overview:
Specifica tions:
NetWay3012:
• 12VDC/30W adapter for non-PoE compliant IP cameras.
• Power LED indicator.
• Compact insulated housing.
• Plug-and-play installation.
I.T.E. 43KC
Netway3012
Adapter
www.altronix.com
12VDC
IN OUT
+ Output ---
Structured Cable
from NetWay8,
NetWay8M, NetWay16
or NetWay16M
Rev. 042109
Power LED
12VDC
--
Power to
+
Camera
Structured Cable
from IP Camera
- 1 -
